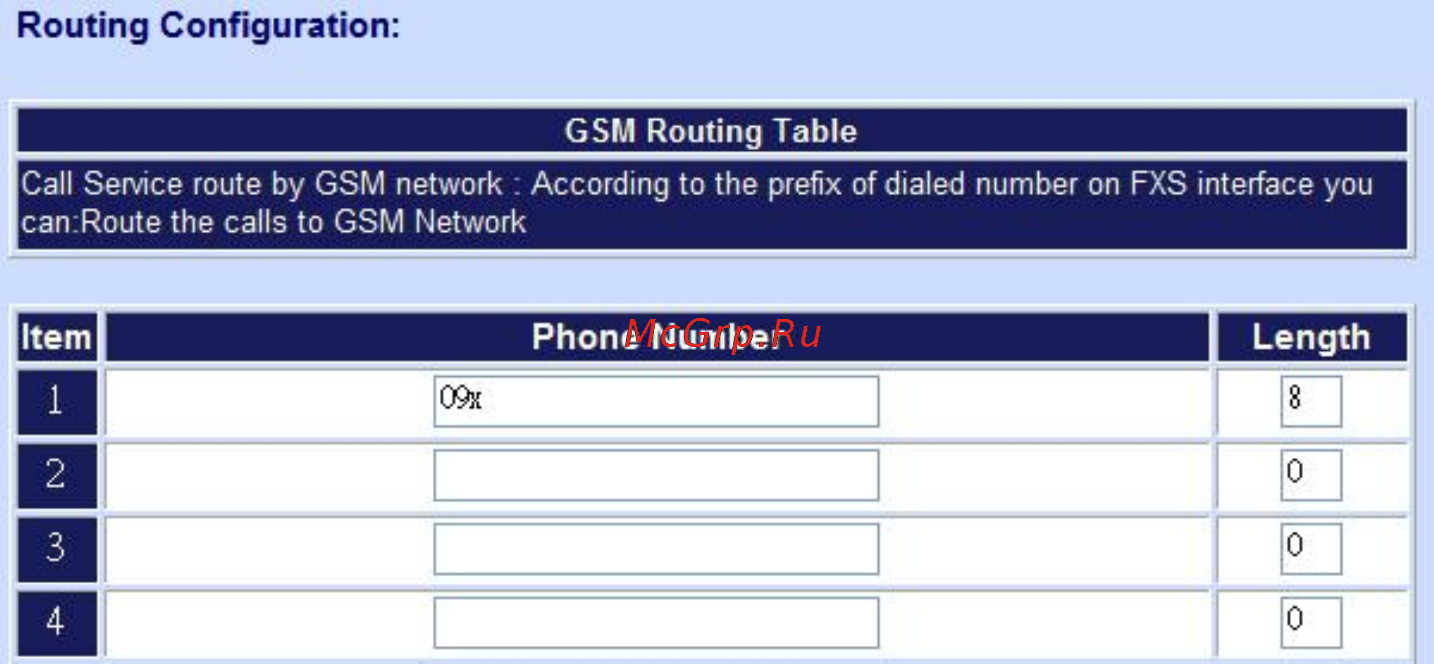

Figure A-12. GSM Routing settings

STEP 4:

Repeat the same configuration steps on VIP-281GS_B.

Test the scenario:

A. ext.501 call to GSM_3

1. Ext.501 picks up the telephone, and input the trunk code 8 to connect with FXS port of

VIP-281GS_A.

2. Dial the GSM number #09125566 to establish the voice communication with GSM_3.

B. ext.501 call to GSM_4

1. Ext.501 picks up the telephone, and input the trunk code 8 to connect with FXS port of

VIP-281GS_A.

2. Dial the ext.400 to GSM port of VIP-281GS_B, and get the dial tone.

3. Dial the GSM number #09581122 to establish the voice communication with GSM_4.
