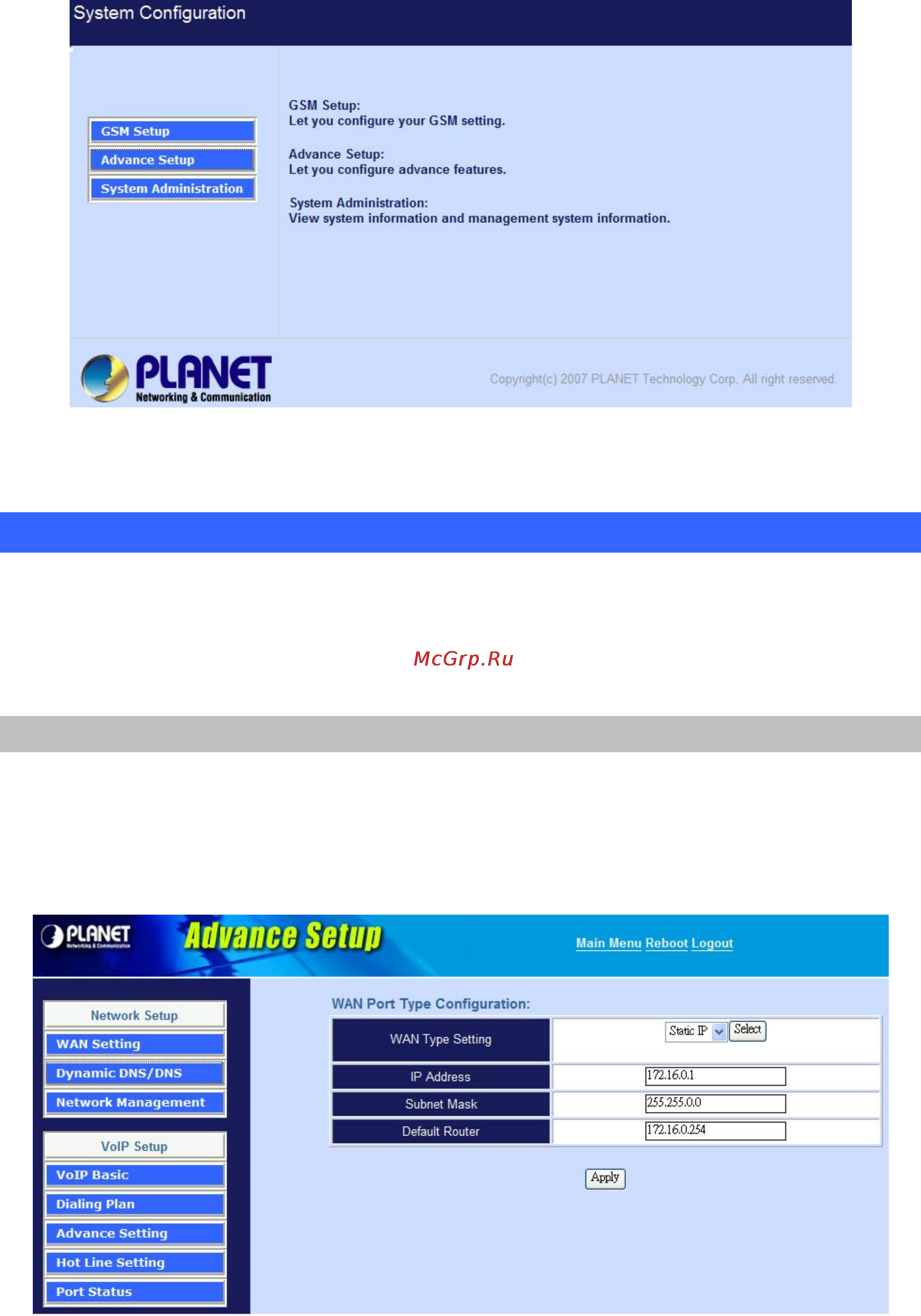

Figure 3-2. System configuration

VIP-281GS Setup for Quick Start

System Configuration

After finishing the authentication, the Main menu will display 3 parts of configuration, please click

“Advance Setup” to enter advance configuration:

1. Network Setup (WAN Port Type Setup)

For most users, Internet access is the primary application. The Gateway support the WAN interface for

Internet access and remote access. The following sections will explain more details of WAN Port

Internet access and broadband access setup. When you click “WAN Setting” from within the Advance

Setup, the following setup page will be show.

Figure 3-3. WAN setting
