achine configuration on the VIP-281GS:

e log in VIP-281GS_A via web browser, browse to the Advance Setup -> VoIP Basic

STEP 1:

Pleas

menu and set the VoIP number as 100 and 200, the sample configuration screen is shown

below:

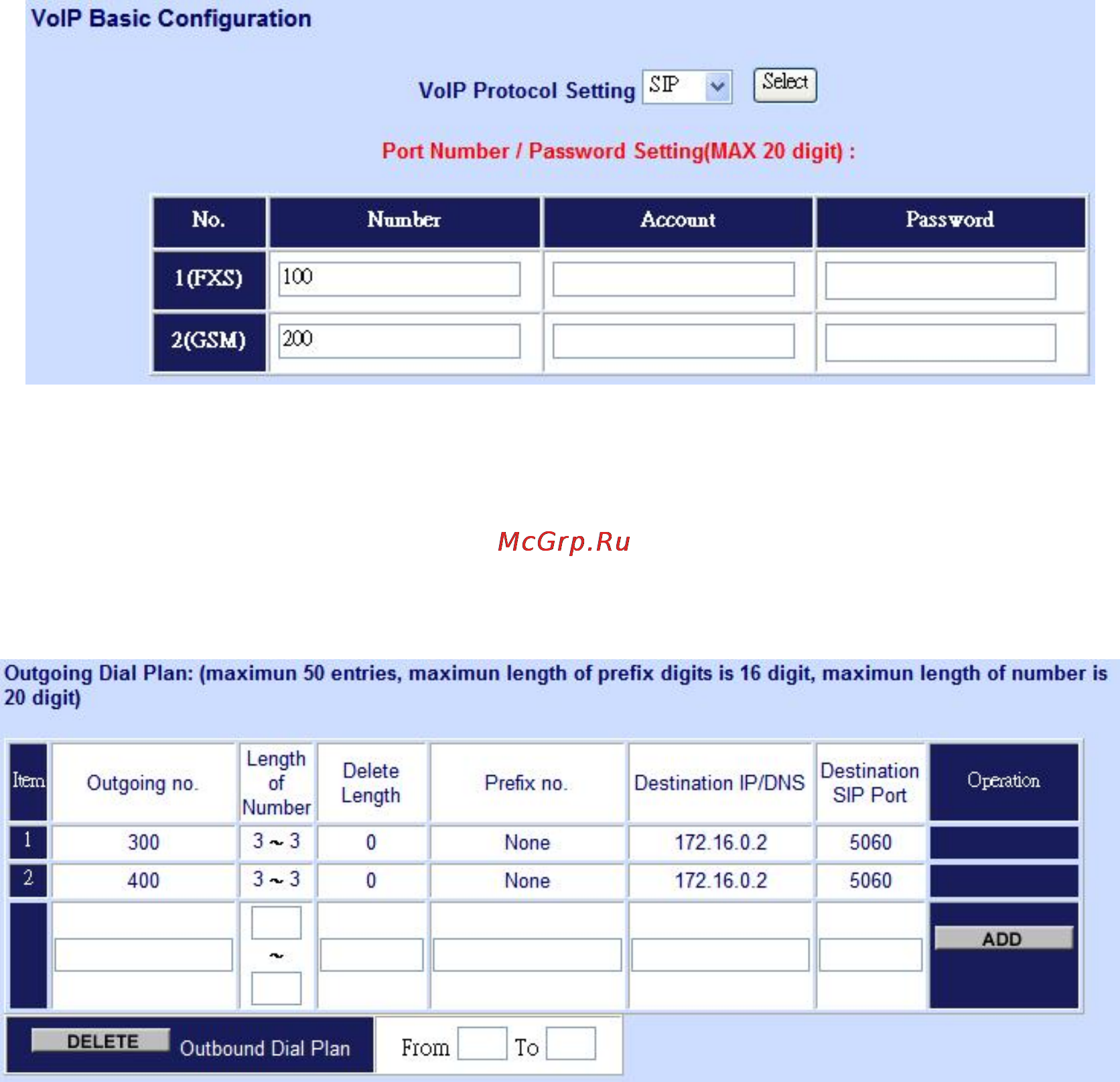

Figure A-4. VoIP basic settings

STEP 2:

e browse to the Dial Plan menu and add the outgoing dial plan for calling to Pleas

VIP-281GS_B, the sample configuration screen is shown:

Figure A-5. Outgoing dial plan settings

STEP 3:

e browse to the GSM Setup -> PSTN Dial plan menu and set the PSTN outgoing Pleas

number, the sample configuration screen is shown:
