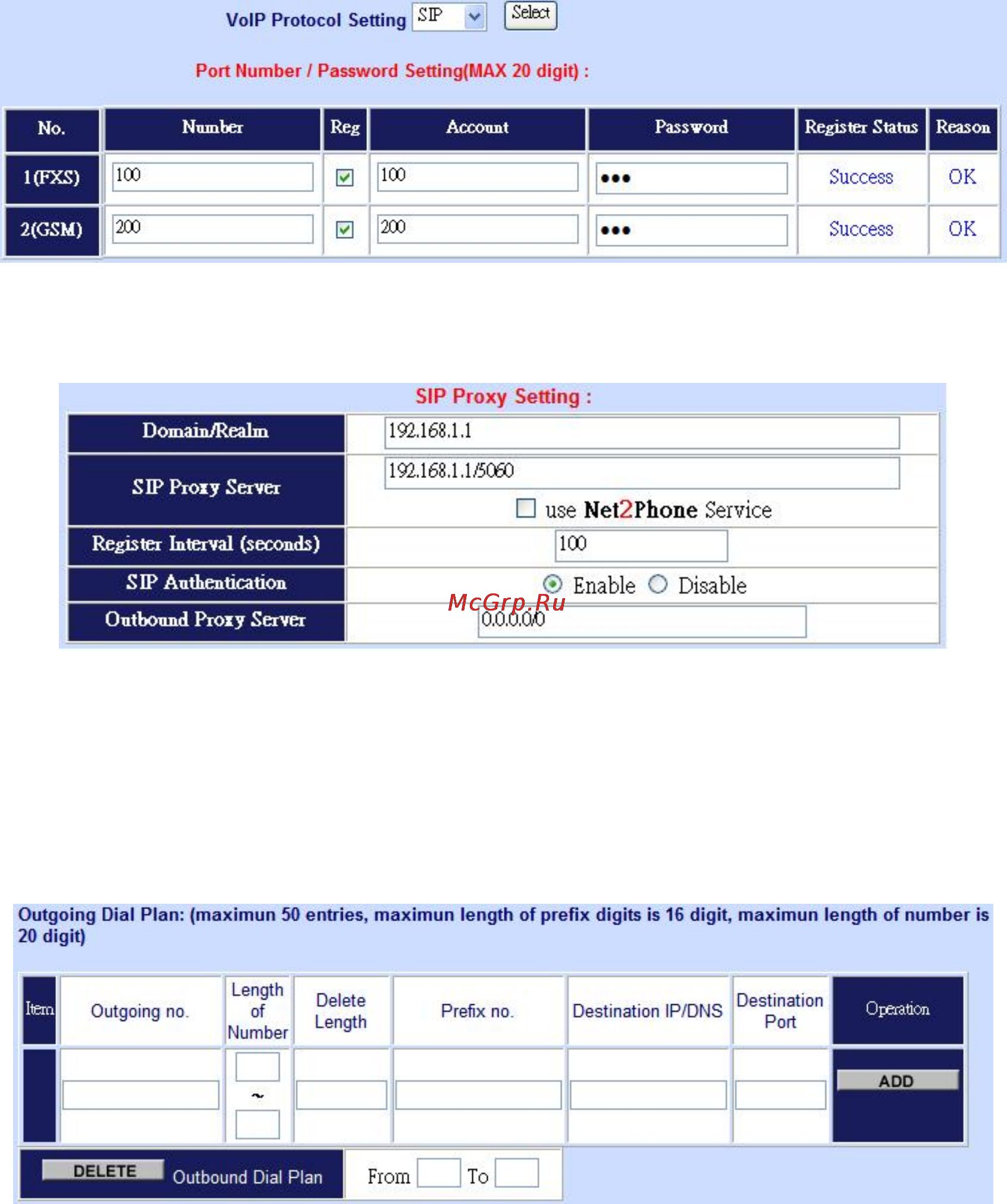

Figure A-9. Port number settings

Figure A-10. SIP proxy settings

STEP 2:

Because the VIP-281GS have registered to IP PBX, all the VoIP calls will send to IP PBX, so

that don’t need to set the dial plan settings.

Figure A-11. Outgoing dial plan settings

STEP 3:

Please browse to the GSM Dial plan menu and set the GSM outgoing number, the sample

configuration screen is shown:
