Planet GRT-501 [20/51] Lan to lan connection with bridge mode

GRT-501 G.SHDSL.bis Bridge Router User’s Manual

- -

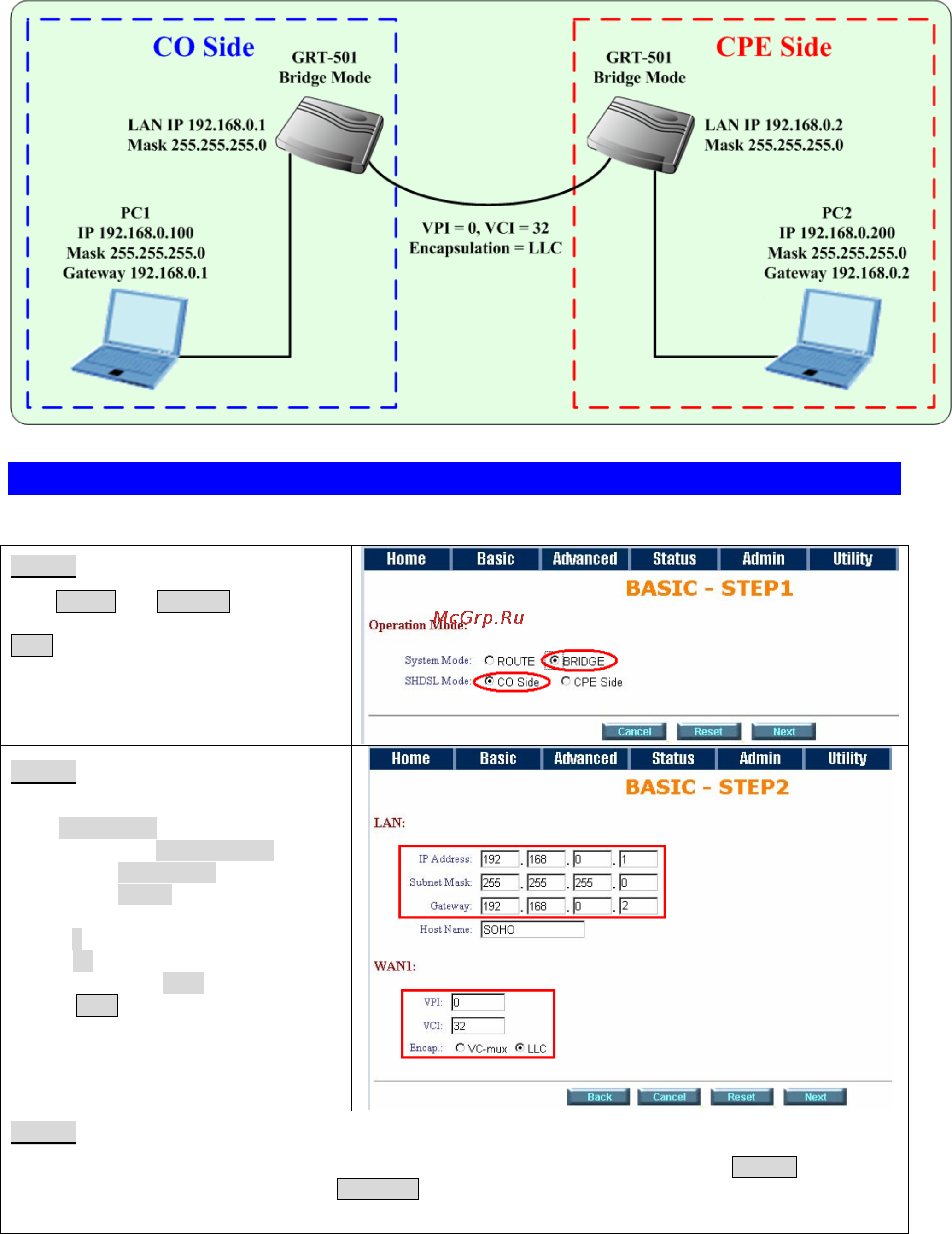

4.1.4 LAN-to-LAN Connection with Bridge Mode

Web UI Configuration

STU-R (CO) side

Step 1.

Click Bridge and CO Side to setup

Bridge mode of the Router and then click

Next.

Step 2.

Enter LAN Parameters

1. IP: 192.168.0.1

2. Subnet Mask: 255.255.255.0

3. Gateway: 192.168.0.2

Host Name: SOHO

Enter WAN Parameters

1. VPI: 0

2. VCI: 32

3. Encapsulation: LLC

4. Click Next

Step 3.

The screen will prompt the new configured parameters. Check the parameters and Click Restart The router

will reboot with the new setting or press Continue to configure another parameters.
