GRT-501 G.SHDSL.bis Bridge Router User’s Manual
Chapter 2 Installation
2.1 Get to know your G.SHDSL.bis Router
Physical Detail

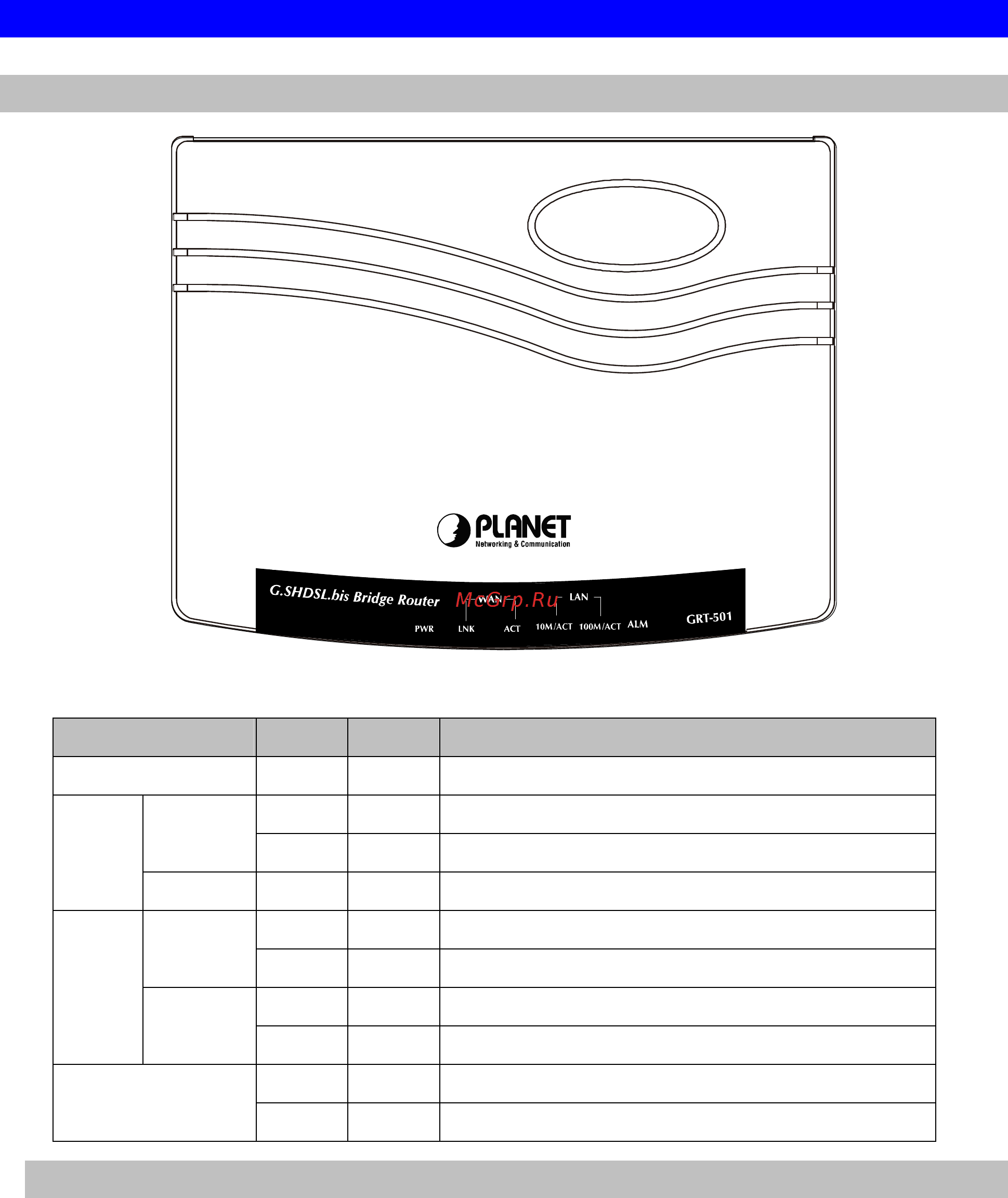

Front View
LED / Port Definition
LEDs Color Active Description
PWR Green ON The power adaptor is connected to GRT-501
Green ON G.SHDSL.bis connection is established
LNK
Green Blink G.SHDSL.bis is handshaking
WAN
ACT Green Blink Transmit data or receive data over G.SHDSL.bis link
Green ON LAN Port connect with 10M Ethernet link
10M/ACT
Green Blink LAN Port Transmit or receive data in 10M mode
Green ON LAN Port connect with 100M Ethernet link
LAN
100M/ACT
Green Blink LAN Port Transmit or receive data in 100M mode
Red ON
G.SHDSL.bis line connection is dropped
ALM
Red Blink
G.SHDSL.bis self test
Rear View
- -
8
