GRT-501 G.SHDSL.bis Bridge Router User’s Manual

- -

4.5.4 Logout

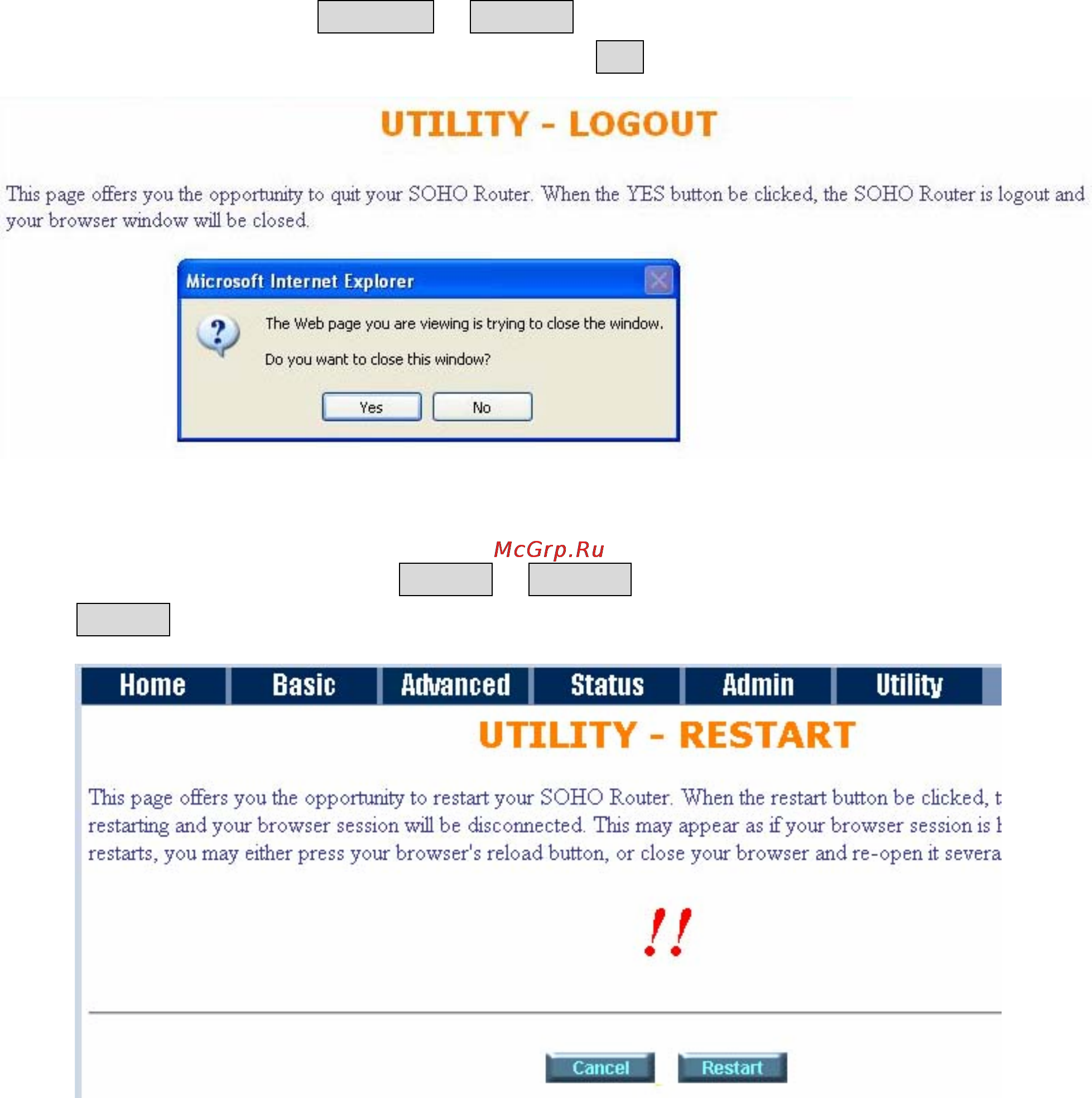

To logout the router, press LOGOUT in UTILITY.

The browser will prompt the logout window. Press Yes to logout GRT-501.

4.5.5 Restart

For restarting the router, click the Restart in UTILITY.

Press Restart to reboot the router.
