Planet GRT-504 [5/20] Hardware description

2. Hardware Description

GRT-501

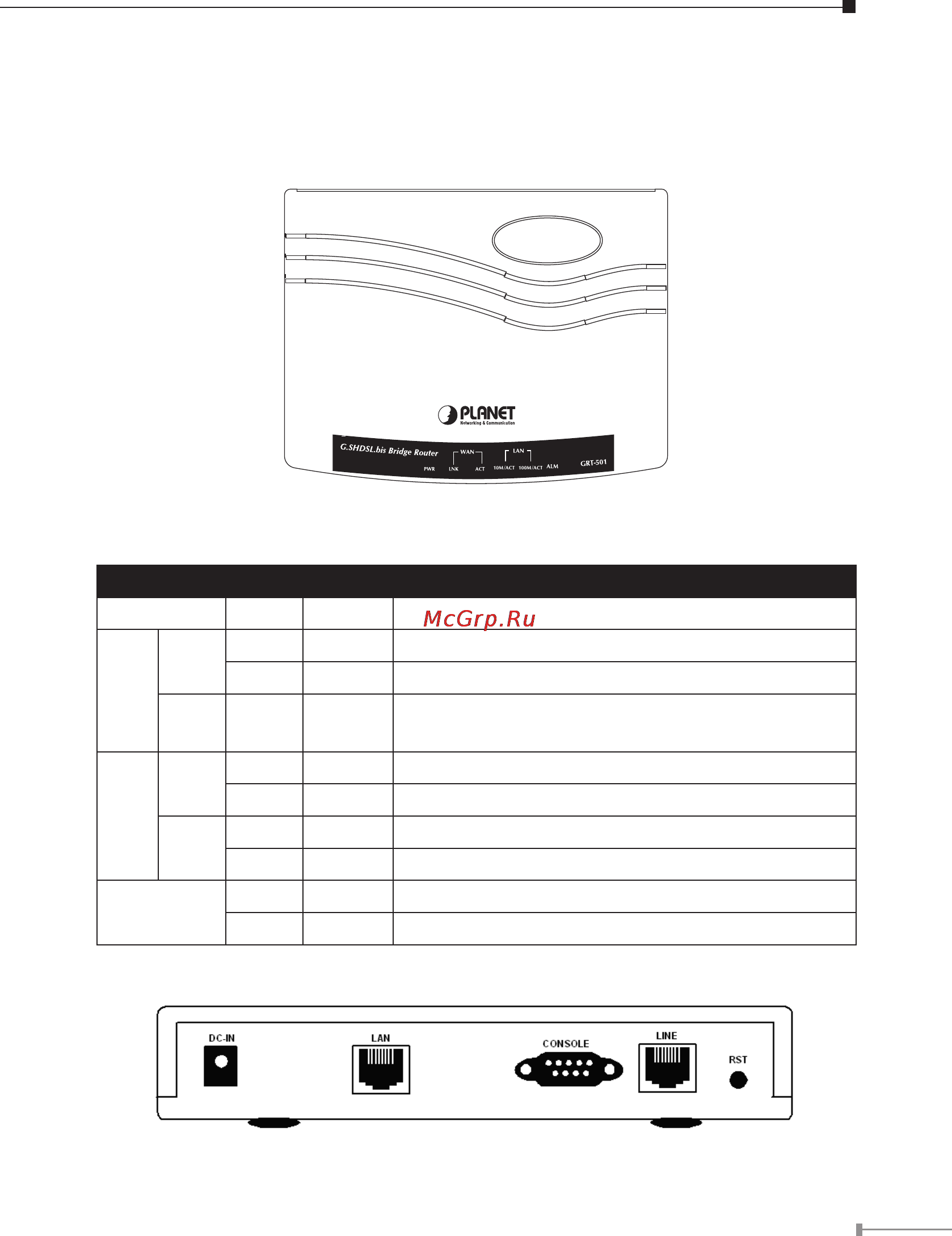

►Front Panel

►LED / Port Denition

LEDs Color Active Description

PWR Green ON The power adaptor is connected to GRT-501

WAN

LNK

Green ON SHDSL.bis connection is established

Green Blink SHDSL.bis is handshaking

ACT Green Blink

Transmit data or receive data over SHDSL.bis

link

LAN

10M/

ACT

Green ON LAN Port connect with 10M Ethernet link

Green Blink LAN Port Transmit or receive data in 10M mode

100M/

ACT

Green ON LAN Port connect with 100M Ethernet link

Green Blink LAN Port Transmit or receive data in 100M mode

ALM

Red ON SHDSL.bis line connection is dropped

Red Blink SHDSL.bis self test

► Rear View
