►Port Denition

Port Description

DC-IN Power connector with 9V DC 1.0A

LAN Ethernet 10/100BaseT for LAN port (RJ-45)

CONSOLE RS-232C(DB9)forsystemcongurationandmaintenance

LINE SHDSL.bis interface for WAN Port

RST

The reset button, the router restore the default settings when press

this button until reboot.

GRT-504

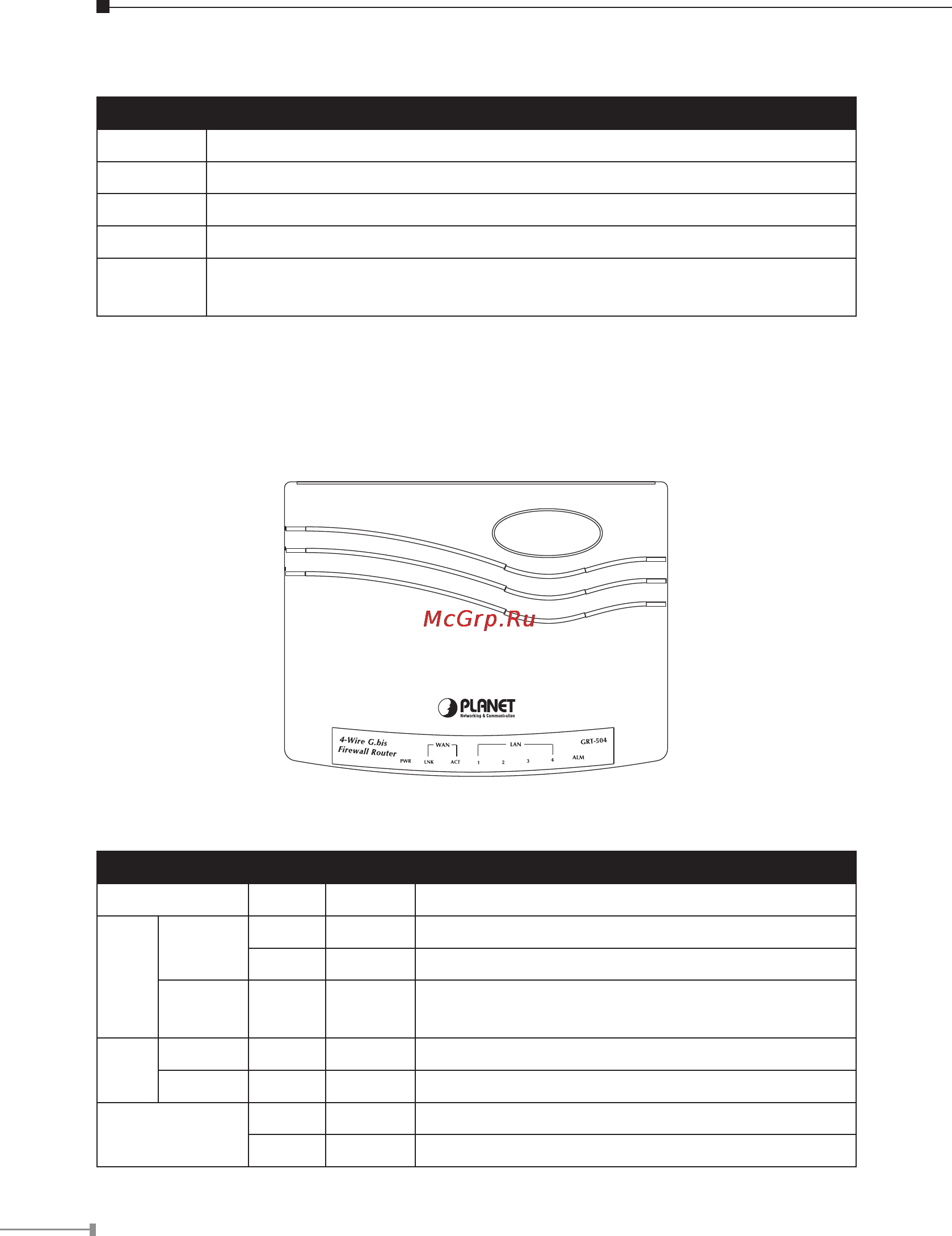

►Front Panel

►LED / Port Denition

LEDs Color Active Description

PWR Green ON The power adaptor is connected to GRT-504

WAN

LNK

Green ON G.SHDSL.bis connection is established

Green Blink G.SHDSL.bis is handshaking

ACT Green Blink

Transmit data or receive data over G.SHDSL.

bis link

LAN

1/2/3/4 Green ON LAN Port connect with Ethernet link

1/2/3/4 Green Blink LAN Port Transmit or receive data

ALM

Red ON G.SHDSL.bis line connection is dropped

Red Blink G.SHDSL.bis self test
