25
3.2 WAN

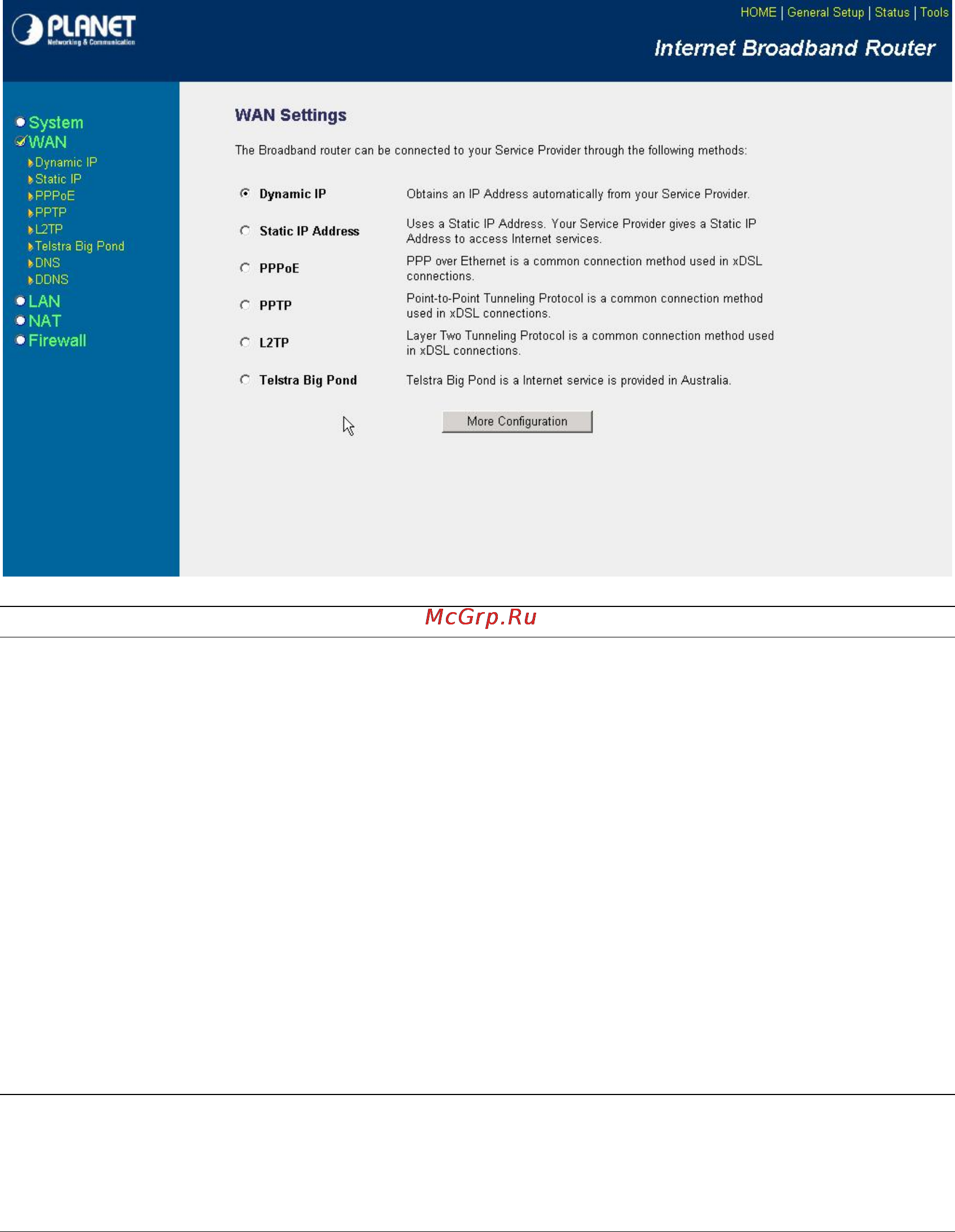

Use the WAN Settings screen if you have already configured the Quick Setup Wizard section and
you would like to change your Internet connection type. The WAN Settings screen allows you to
specify the type of WAN port connect you want to establish with your ISP. The WAN settings offer
the following selections for the router’s WAN port, Dynamic IP, PPPoE, PPTP, Static IP
Address, L2TP, Telstra Big Pond, DNS and DDNS.
Parameters Description
3.2.1 Dynamic IP Your ISP will automatically give you an IP address
3.2.2 Static IP address Your ISP has given you an IP address already
3.2.3 PPPoE Your ISP requires PPPoE connection.
3.2.4 PPTP Your ISP requires you to use a Point-to-Point Tunneling
Protocol (PPTP) connection.
3.2.5 L2TP Your ISP requires L2TP connection.
3.2.6 Telstra Big Pond Your ISP requires Telstra Big Pond connection.
3.2.7 DNS You can specify a DNS server that you wish to use
3.2.8 DDNS You can specify a DDNS server that you wish to use and
configure the user name and password provided by you
DDNS service provider.
Once you have made a selection, click <More Configuration> at the bottom of the screen and
proceed to the manual’s relevant sub-section
