Planet XRT-401D [38/62] Port forwarding

Port) to a particular LAN IP address and its service port

number.

3.4.3 Special Applications Some applications require multiple connections, such as

Internet games, video conferencing, Internet telephony

and others. In this section you can configure the router

to support these types of applications.

3.4.4 ALG Setting You can select special applications that need

“Application Layer Gateway” to support here.

Click on one of the three NAT selections and proceed to the manual's relevant sub-section.

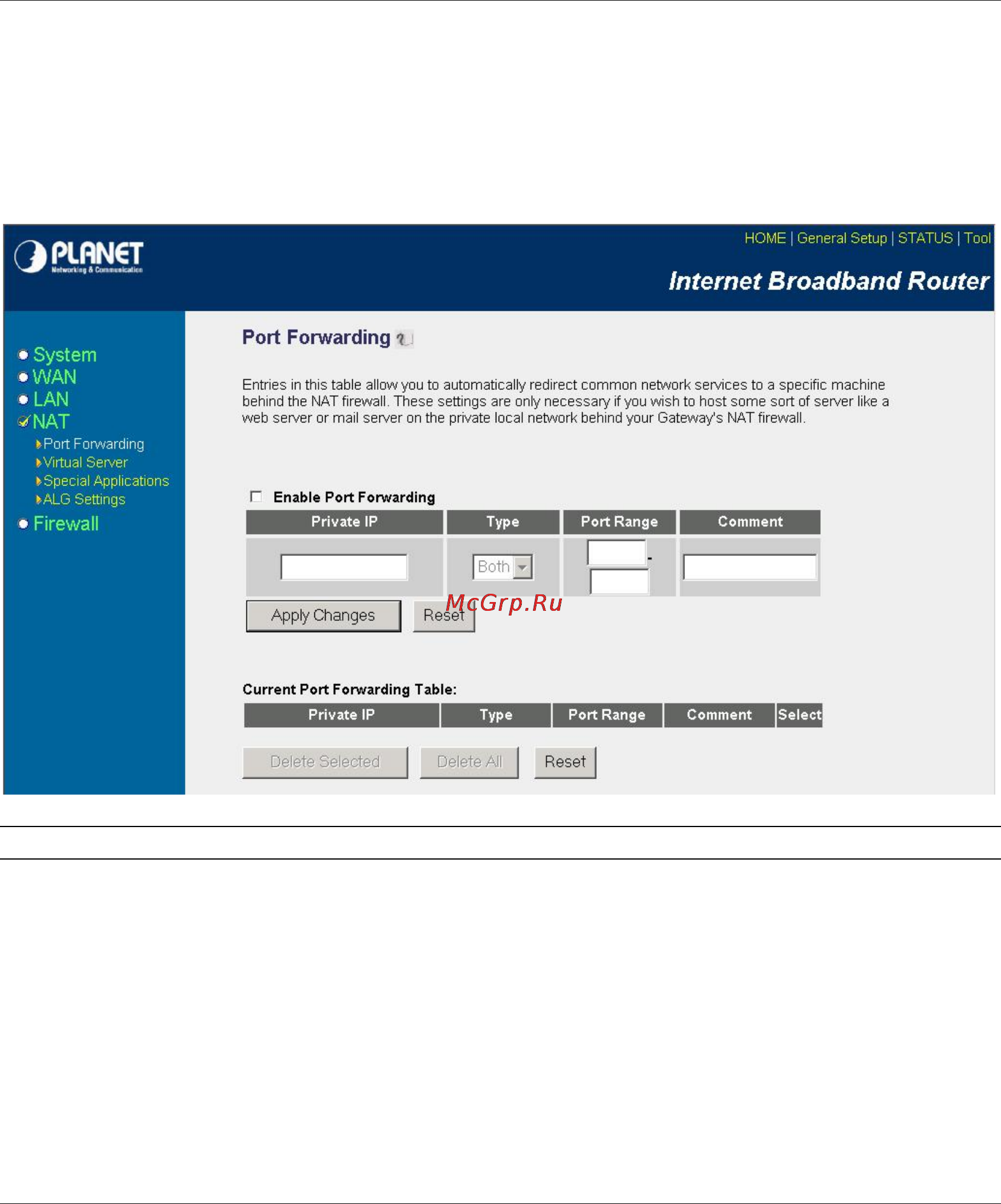

3.4.1 Port Forwarding

The Port Forwarding allows you to re-direct a particular range of service port numbers (from the

Internet/WAN Ports) to a particular LAN IP address. It helps you to host some servers behind the

router NAT firewall.

Parameter Description

Enable Port Forwarding Enable Port Forwarding

Private IP This is the private IP of the server behind the

NAT firewall.

Note: You need to give your LAN PC clients a

fixed/static IP address for Port Forwarding to

work properly.

Type This is the protocol type to be forwarded. You

can choose to forward “TCP” or “UDP” packets
