Planet XRT-401D [33/62] Telstra big pond

WAN connection if the time period that no one is using the

Internet exceeds the “Idle Time”.

If you select “Manual”, the router will connect to ISP only when

you click “Connect” manually from the Web user interface. The

WAN connection will not be disconnected due to the idle timeout.

If the WAN line breaks down and latter links again, the router will

not auto-connect to the ISP.

Idle Time Out You can specify an idle time threshold (minutes) for the WAN

port. This means if no packets have been sent (no one using the

Internet) throughout this specified period, then the router will

automatically disconnect the connection with your ISP.

Note: This “idle timeout” function may not work due to abnormal

activities of some network application software, computer virus

or hacker attacks from the Internet. For example, some software

sends network packets to the Internet in the background, even

when you are not using the Internet. So please turn off your

computer when you are not using it. This function also may not

work with some ISP. So please make sure this function can work

properly when you use this function in the first time, especially

your ISP charge you by time used.

Click <OK> when you have finished the configuration above. Congratulations! You have

completed the configuration for the L2TPP connection. You can start using the router now, if you

wish to use some of the advance features supported by this router see chapter 3, 4, 5.

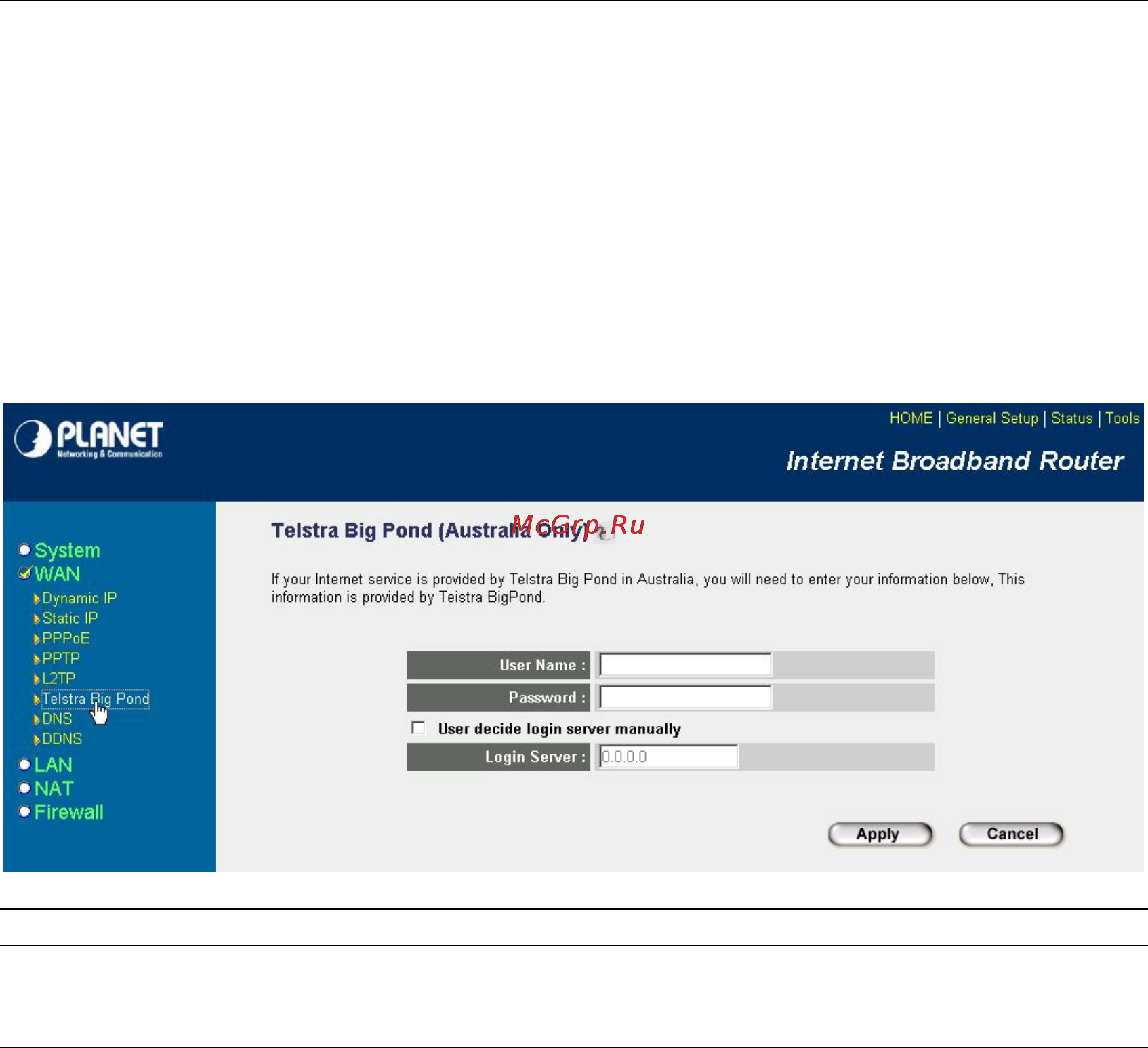

3.2.6 Telstra Big Pond

Select Telstra Big Pond if your ISP requires the Telstra Big Pond protocol to connect you to the

Internet. Your ISP should provide all the information required in this section. Telstra Big Pond

protocol is used by the ISP in Australia.

Parameter Description

User Name Enter the User Name provided by your ISP for the Telstra Big

Pond connection
