27

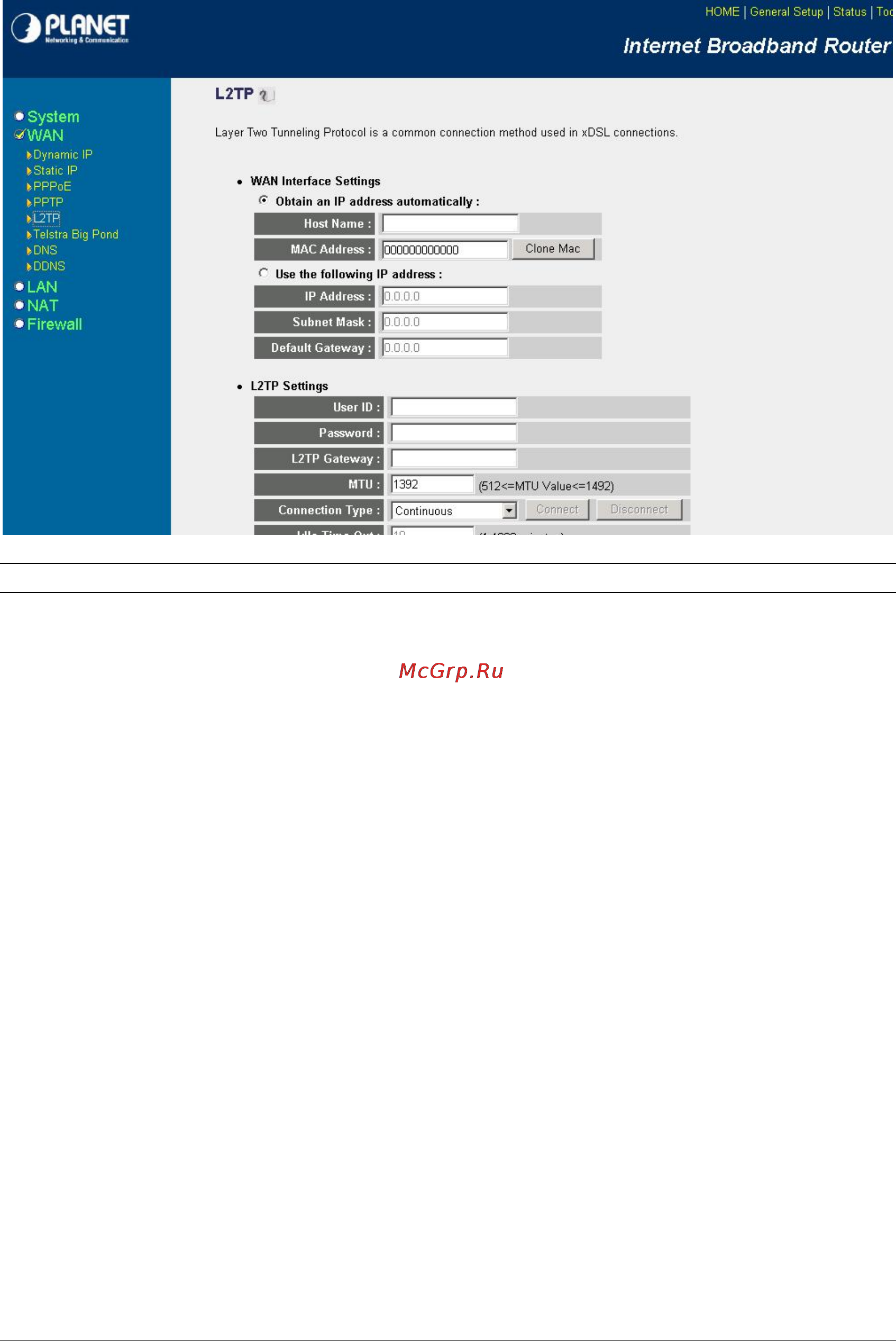

Parameter Description
Obtain an IP address The ISP requires you to obtain an IP address by DHCP
automatically before connecting to the L2TP server.
Use the following IP address The ISP give you a static IP to be used to connect to the
L2TP server.
IP Address This is the IP address that your ISP has given you to
establish a L2TP connection.
Subnet Mask Enter the Subnet Mask provided by your ISP
(e.g. 255.255.255.0)
Gateway Enter the IP address of the ISP Gateway.
User ID Enter the User Name provided by your ISP for the PPTP
connection. Sometimes called a Connection ID
Password Enter the Password provided by your ISP for the PPTP
connection
L2TP Gateway If your LAN has a L2TP gateway, then enter that L2TP gateway
IP address here. If you do not have a L2TP gateway then enter
the ISP’s Gateway IP address above
Connection Type If you select “Continuous”, the router will always connect to the
ISP. If the WAN line breaks down and links again, the router will
auto-reconnect to the ISP.
If you select “Connect On Demand”, the router will auto-connect
to the ISP when someone want to use the Internet and keep
connected until the WAN idle timeout. The router will close the
