Planet IM-1000 [16/211] Interface ip

2.2 Interface IP

Step1. In System

Æ Interface IP , enter the following setting ：

 In IP Address, Netmask and Default Gateway column, enter the

available IP of the LAN subnet.

 Enter DNS server 1 or DNS server 2.

 Enter Max Downstream Bandwidth and Max Upstream

Bandwidth . ( ※ it depends on the applied flow statistics of the user. )

 Enable the setting of Ping, HTTP and HTTPS function.

 Click OK.

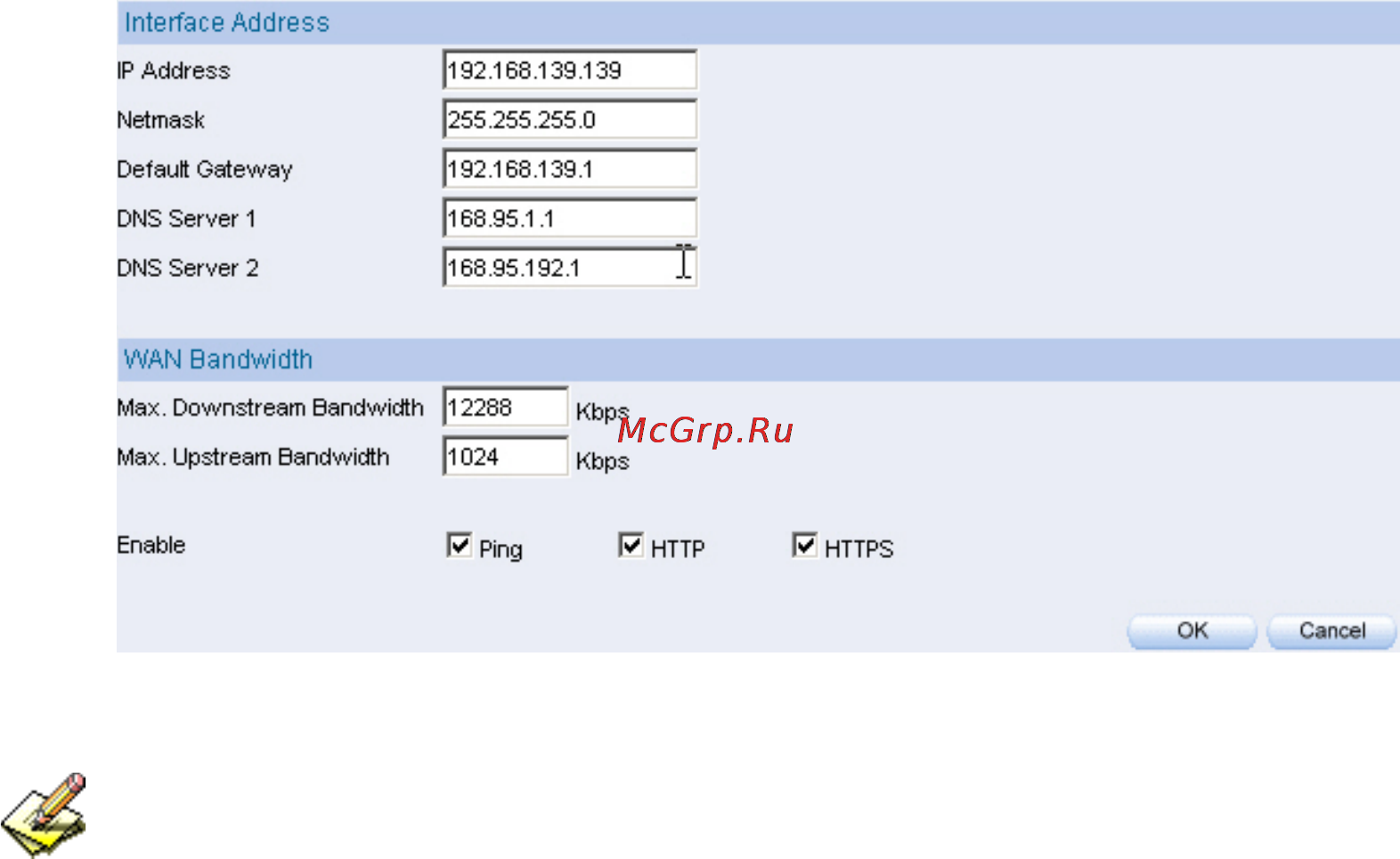

The interface IP setting

Please do not cancel HTTP and HTTPS before setting the Interface IP, because it will let the

system administrator could not enter the Web UI of IM-1000.

１５
