Planet IM-1000 [207/211] Arp table

12.2 ARP Table

Step1. In Status Æ ARP Table , it shows the the information of user name,

computer name , IP address and MAC address connected to the IM-1000 .

 User Name：The identifid name of record in the computer .

 Computer Name ：The identified name on the internet in this

computer .

 IP Address ：The IP address on the internet in the computer.

 MAC Address ：The identified address in the network adapters in the

computer.

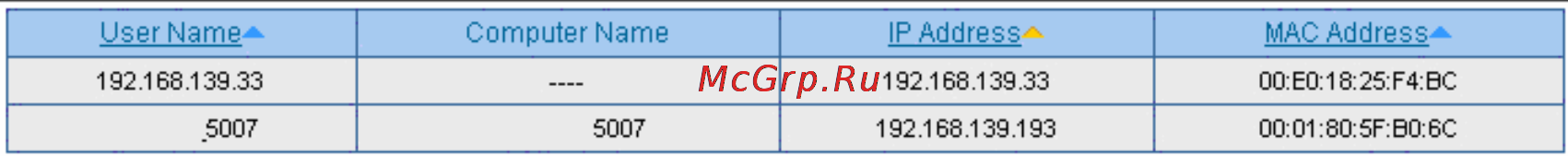

The ARP table in Web UI

２０６
