Planet IM-1000 [182/211] Disk space

9.2 Disk Space

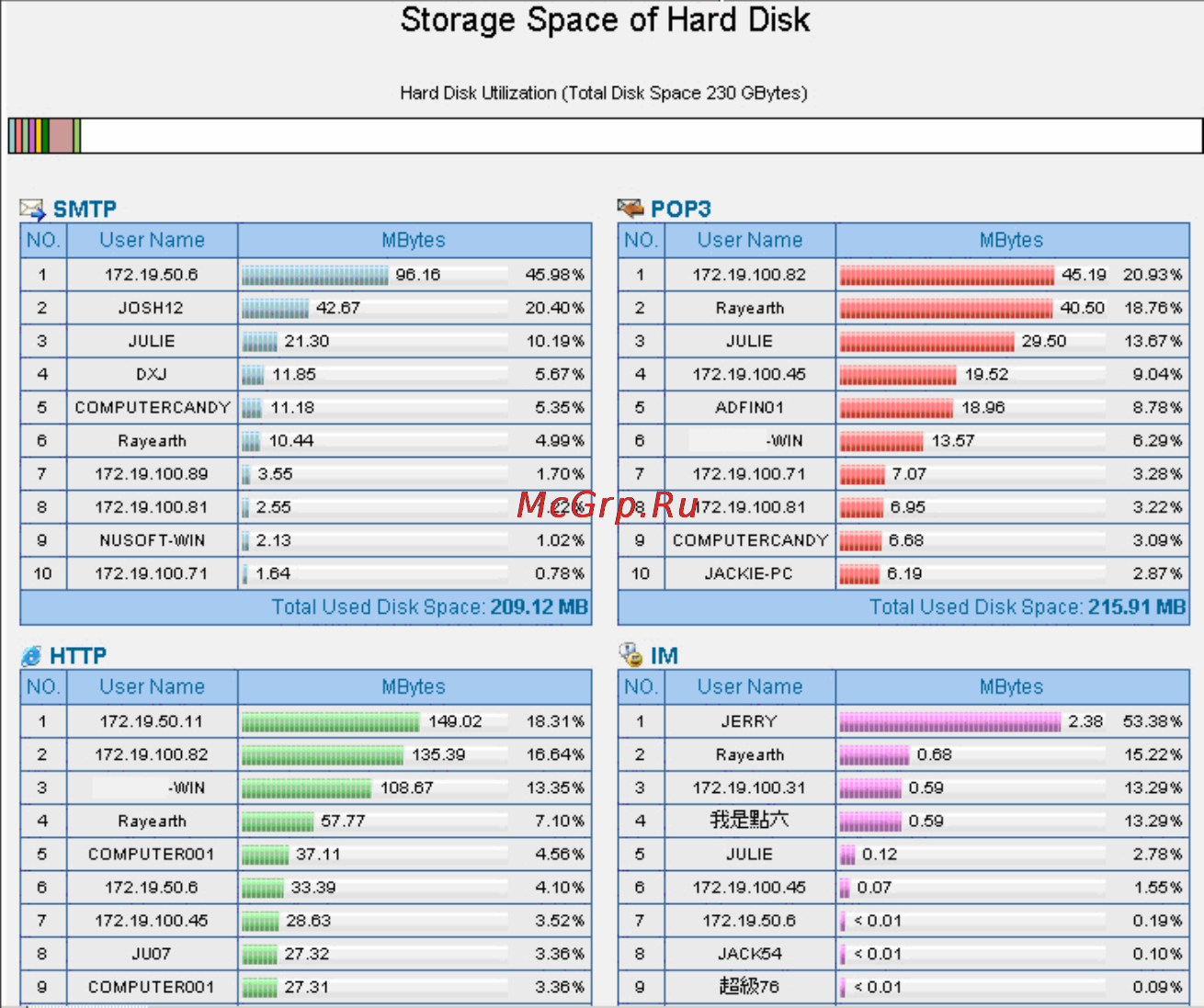

Hard Disk Utilization :

 The 8-recorded services are displayed in different colors, the white color represents

the free disk space.Use the mouse point to each color, it shows the service name

and the 8-recorded services utilization in the storage disk .

The 8-Recorded Services Utilization :

 It will arrange the TOP 10 users by the service utilization in graphic charts. It

depends on the 8-recorded services of SMTP, POP3, HTTP, IM, Web SMTP,

Web POP3, FTP, and TELNET.

１８１
