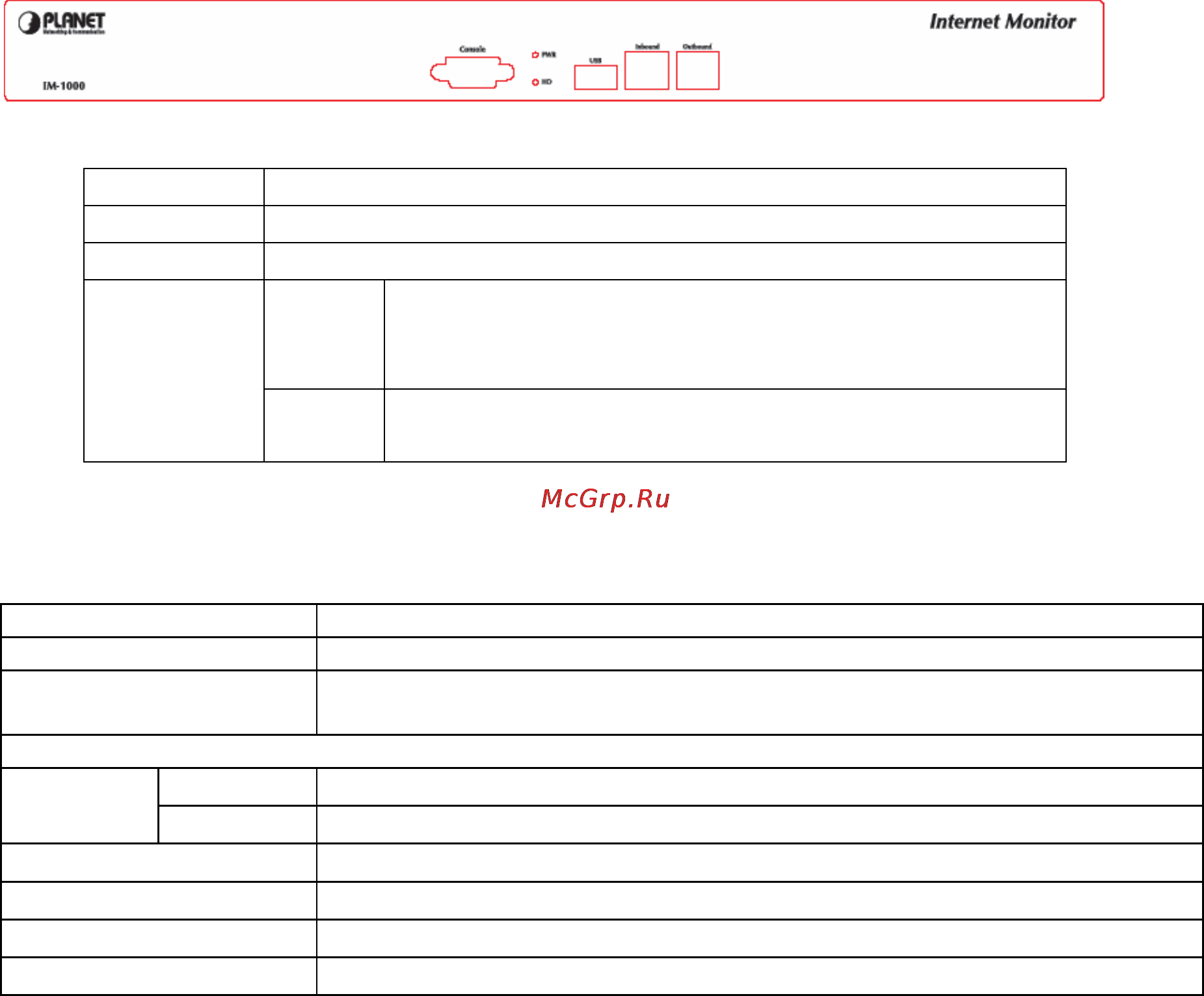

Planet IM-1000 [8/211] Front view
![Planet IM-1000 [8/211] Front view](/views2/1071678/page8/bg8.png)
User’s Manual CD x 1
Console cable x 1
Cat5 cross cable x 1
Cat5 cable x 1
Rack-mount ear x 2
1.2 Front View
LED Description
PWR Power is supplied to this device.
HD Blinks to indicate this devise is being to access the hard disk.
Green Steady on indicates the port is connected to other
network device.
Blink to indicates there is traffic on the port
Inbound /
Outbound
Orange Steady on indicates the port is connected at
100Mbps speed
1.3 Specification
Product Internet Monitor
Model IM-1000
Recommend maximum
concurrent user
100
Hardware
Inbound
1 x 10/100 Based-TX RJ-45
Ethernet
Outbound
1 x 10/100 Based-TX RJ-45
Console
1 x RS-232 (DB-9)
Hard Disk
160 GB
H/W Watch-Dog
Auto reboot when detecting system fail
Software
７
