１７２

Anomaly Flow IP

Setting

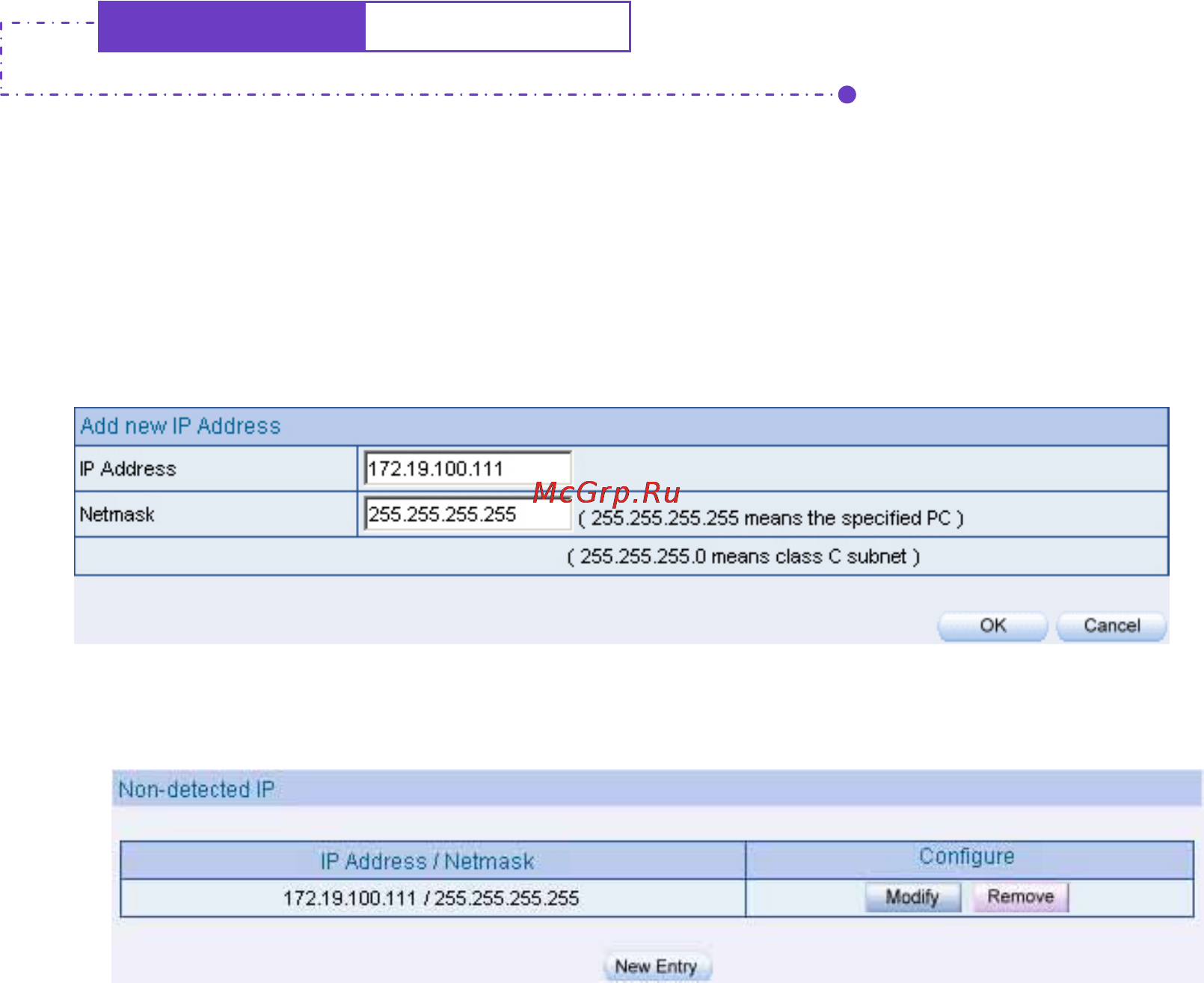

Step2. Set the Non-detected IP :

 Click New Entry.

 Enter the IP Address and Netmask.

 Click OK.

Enter the ip and netmask

Complete the setting
