Setting

System

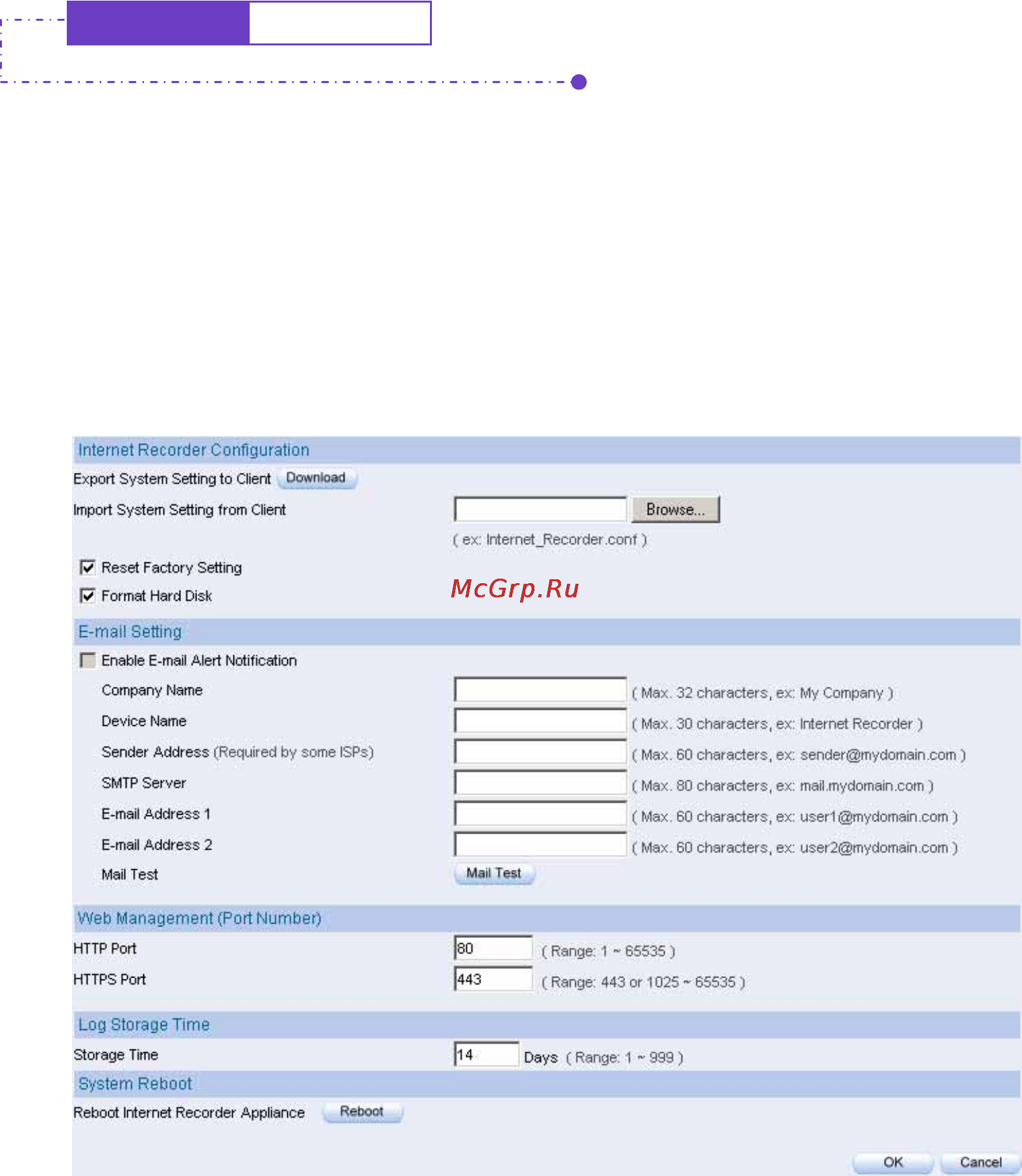

Step1. In SystemÆ Setting Æ Internet Recorder ConFiguration, select Reset

Factory Setting and Format Hard Disk.

１８

. Step2 Click the OK in the lower right, it will restore to the factory setting of IM-

1000 and format the disk at the same time.

Select Resect Factory Setting
