Multi-Homing Security Gateway User’s Manual

 User Name：Displays the PPTP Client user’s name for authentication.

 Server IP or Domain Name：Displays the PPTP Server’s IP address or Domain name.

 Encryption：Displays the PPTP Client Encryption ON or OFF.

 Uptime：Displays the connection time between PPTP Server and Client.

 Configure：Click Modify to modify the PPTP Client settings or click Remove to remove the

item.

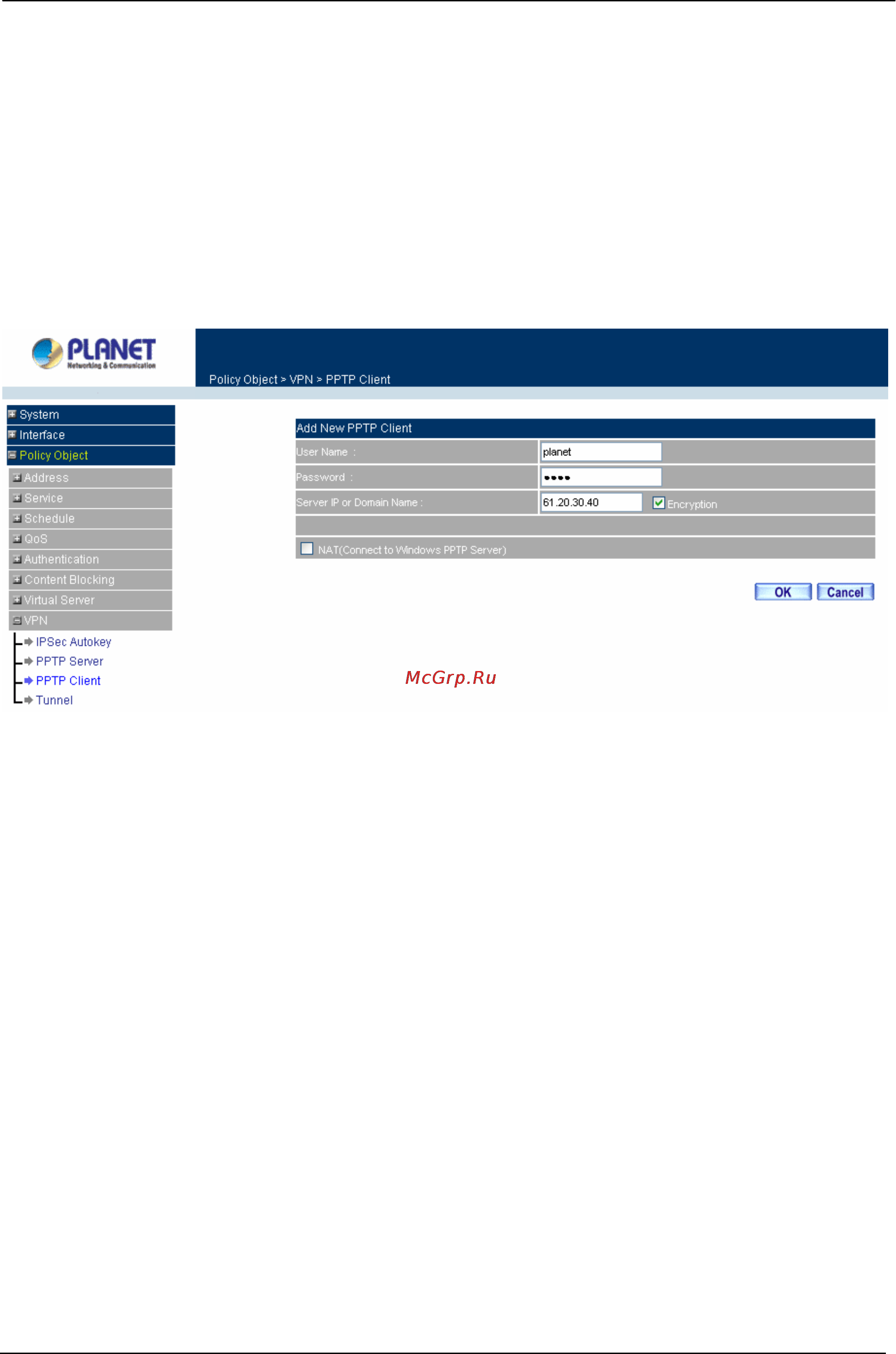

Adding a PPTP Client

Step 1. Select VPN→PPTP Client.

Step 2. Configure the parameters.

 User name: Specify the PPTP client. This should be unique.

 Password: Specify the PPTP client password.

 Server IP or Domain Name: Enter the PPTP Server’s IP address.

 Encryption: Enable or Disabled the Encryption.

 WAN interface: Check to select WAN interface to connect PPTP server.

 NAT (Connect to Windows PPTP Server): Select this function to setup the connection with

PPTP VPN Client of CS-1000 and Windows PPTP Server.

Modifying PPTP Client

Step 1. Select VPN→PPTP Client.

Step 2. In the PPTP Client window, find the PPTP server that you want to modify and click Modify.

Step 3. Enter appropriate settings.

- 96 -
