Planet CS-1000 [48/226] Lan group

Multi-Homing Security Gateway User’s Manual

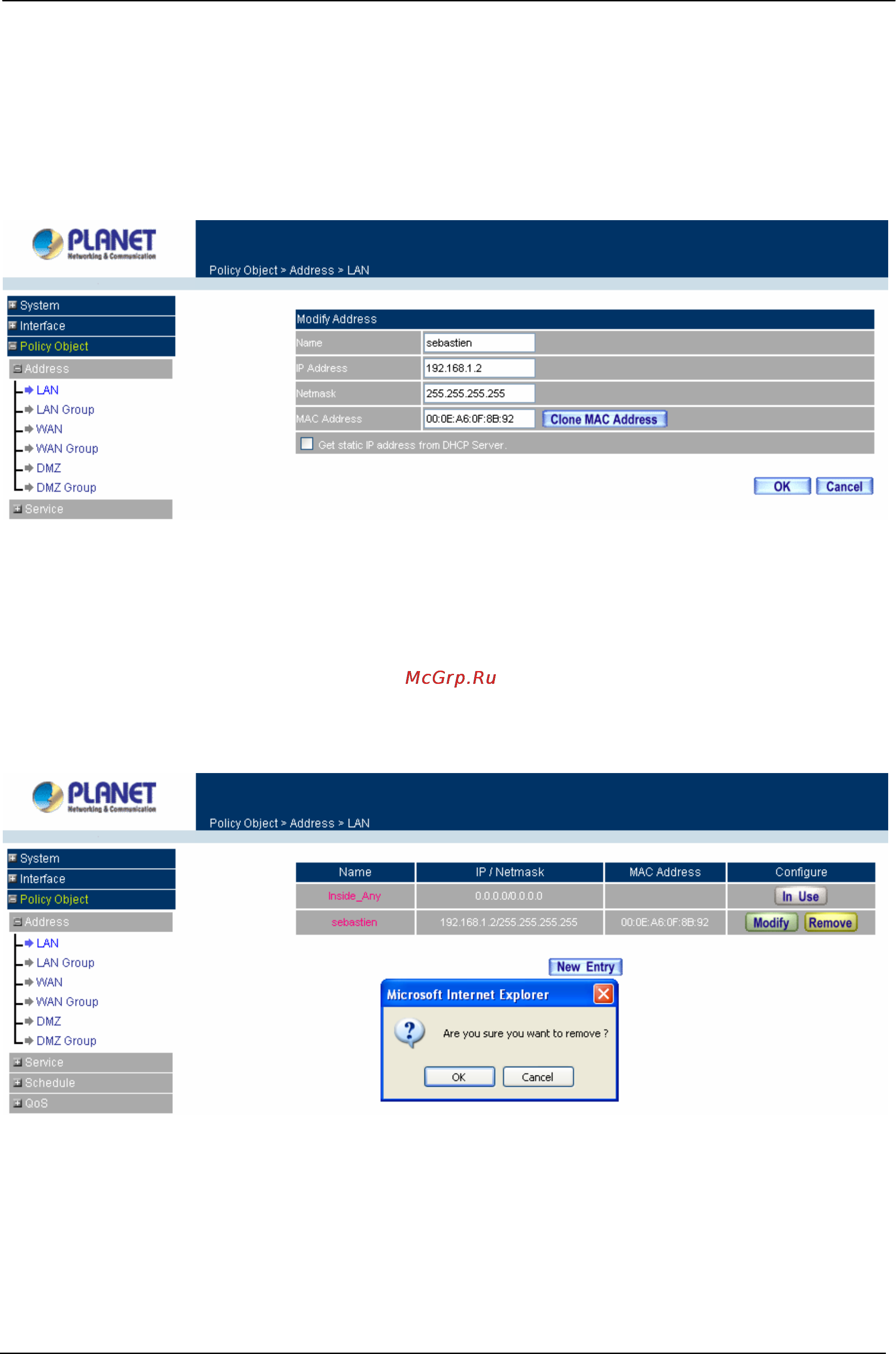

Step 1. In the LAN window, locate the name of the network to be modified. Click the Modify option in its

corresponding Configure field. The Modify Address window appears on the screen

immediately.

Step 2. In the Modify Address window, fill in the new address.

Step 3. Click OK to save changes or click Cancel to discard changes.

Removing a LAN Address

Step 1. In the LAN window, locate the name of the network to be removed. Click the Remove option in

its corresponding Configure field.

Step 2. In the Remove confirmation pop-up box, click OK to remove the address or click Cancel to

discard changes.

3.3.1.2 LAN Group

Entering the LAN Group window

The LAN Addresses may be combined together to become a group.

Step 1. Click LAN Group under the Address menu to enter the LAN Group window. The current setting

- 42 -
