Multi-Homing Security Gateway User’s Manual

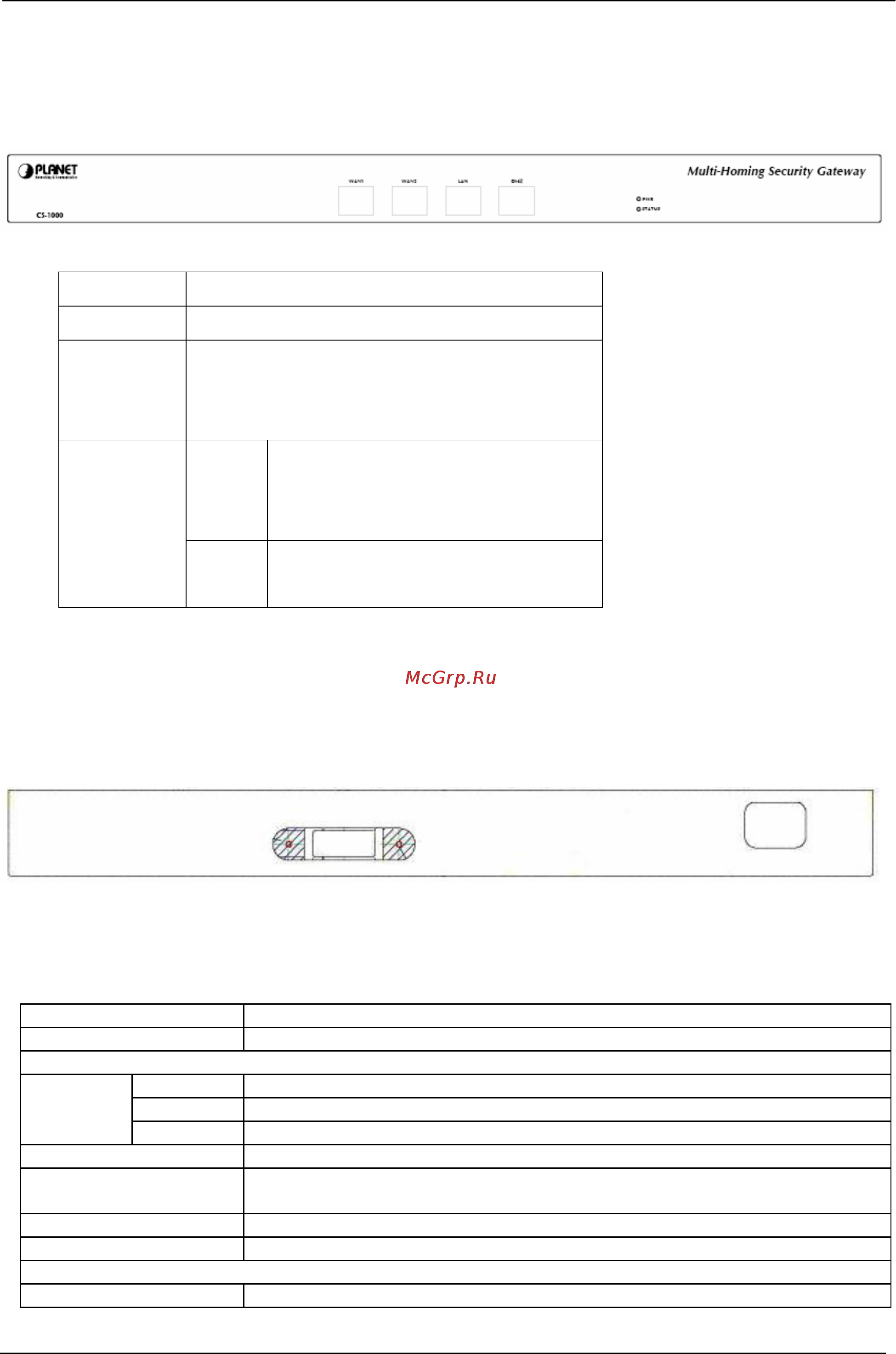

1.3 Multi-Homing Security Gateway Front View

CS-1000 Front Panel

LED Description

PWR Power is supplied to this device.

STATUS Blinks to indicate this devise is being turned on and

booting. After one minute, this LED indicator will stop

blinking, it means this device is now ready to use.

Green Steady on indicates the port is connected

to other network device.

Blink to indicates there is traffic on the port

WAN1,

WAN2, LAN,

DMZ

Orange Steady on indicates the port is connected

at 100Mbps speed

1.4 Multi-Homing Security Gateway Rear Panel

CS-1000 Rear Panel

1.5 Specification

Product Multi-Homing Security Gateway

Model CS-1000

Hardware

LAN 1 x 10/100 Based-TX RJ-45

WAN 2 x 10/100 Based-TX RJ-45

Ethernet

DMZ 1 x 10/100 Based-TX RJ-45

Power 100~250 VAC, 50~60 Hz, 0.6A

Operating Environment Temperature: 0~60°C

Relative Humidity: 5%~95%

Dimension W x D x H, mm 237 x 440 x 43

Regulatory FCC, CE Mark

Software

Management Web

- 3 -
