Step 16. If you want to configure bi-direction VPN connection, you should enable Trunk setting in Outgoing

and Incoming Policy.

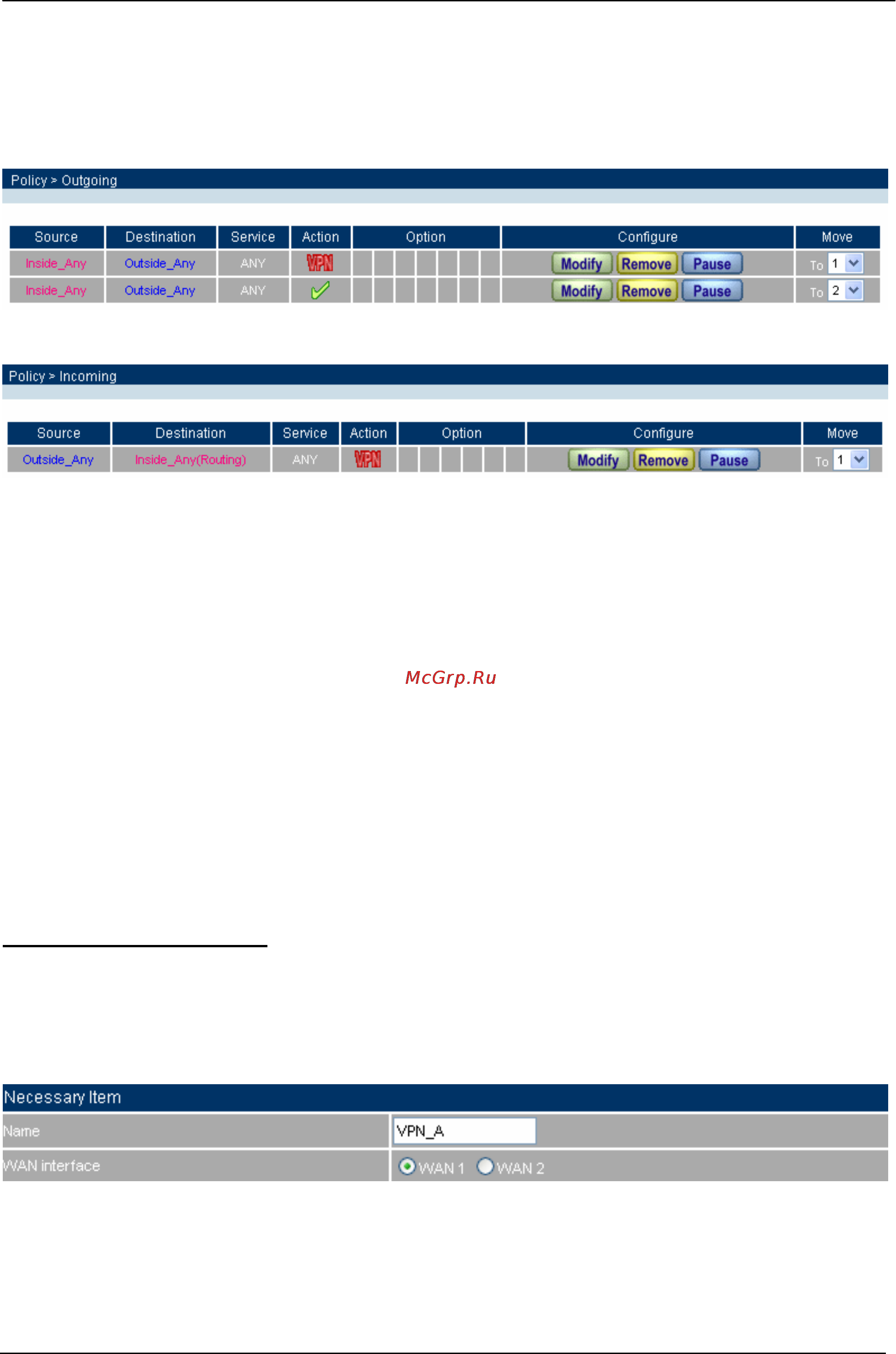

Outgoing Policy:

Incoming Policy:

Example 2. Create a VPN connection between the Multi-Homing Security Gateway and Windows XP

Professional VPN Client.

Preparation Task:

Company A External IP is 210.66.155.90, Internal IP is 192.168.10.X

Remote User External IP is 210.66.155.91

Remote user with an external IP wants to create a VPN connection with company A and connect to

192.168.10.100 for downloading the sharing file.

The Gateway of Company A is 192.168.10.1. The settings of company A are as the following.

Configuration of CS-1000

Step 1. Enter the default IP of Company A’s Multi-Homing Security Gateway, 192.168.10.1. Click VPN in the

menu bar on the left hand side, and then select the sub-select IPSec Autokey. Click Add.

Step 2. Enter the VPN name, VPN_A in IPSec Autokey window, and select the WAN interface you want to

create the VPN tunnel.

Step 3. In to Destination table, choose Remote Gateway or Client – Dynamic IP.
