Multi-Homing Security Gateway User’s Manual

3.3.7.1 Mapped IP

Internal private IP addresses are translated through NAT (Network Address Translation). If a server is located

in the LAN network, it has a private IP address, and outside users cannot connect directly to LAN servers’

private IP address. To connect to a LAN network server, outside users have to first connect to a real IP

address of the WAN network, and the real IP is translated to a private IP of the LAN network. Mapped IP and

Virtual Server are the two methods to translate the real IP into private IP. Mapped IP maps IP in one-to-one

fashion; that means, all services of one real WAN IP address is mapped to one private LAN IP address.

Entering the Mapped IP window

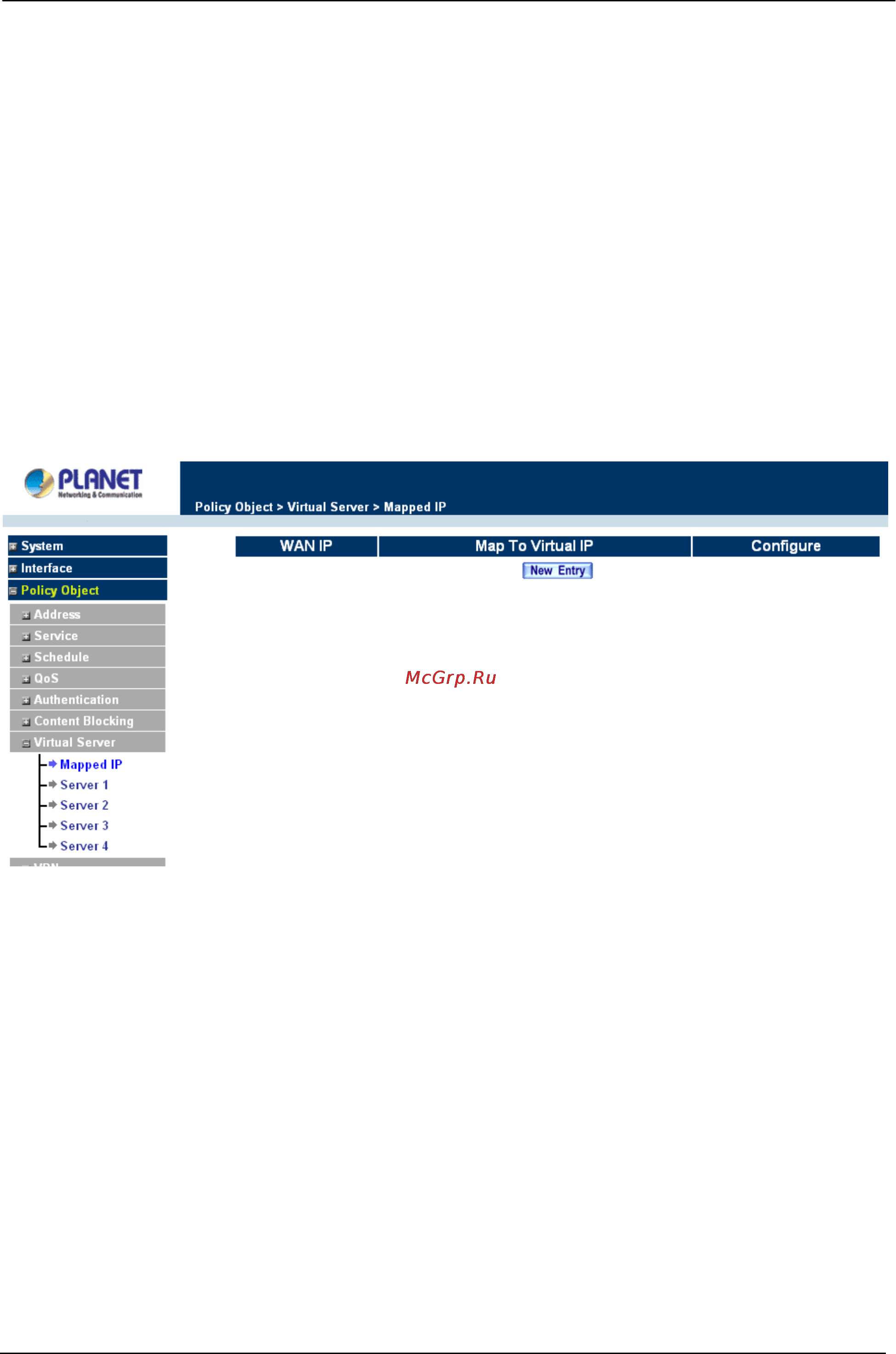

Step 1. Click Mapped IP under the Virtual Server menu bar and the Mapped IP configuration window

will appear.

ÍÍ

Definition:

WAN IP: WAN IP Address.

Map to Virtual IP: The IP address which WAN maps to the virtual network in the server.

Configure: To change the setting, click Configure to modify the parameters; click delete to delete the setting.

Adding a new IP Mapping

Step 1. In the Mapped IP window, click the New Entry button. The Add New Mapped IP window will

appear.

 WAN IP: select the WAN public IP address to be mapped.

 Map to Virtual IP: enter the LAN private IP address will be mapped 1-to-1 to the WAN IP

address.

Step 2. Click OK to add new IP Mapping or click Cancel to cancel adding.

- 82 -
