Multi-Homing Security Gateway User’s Manual

ÍÍ

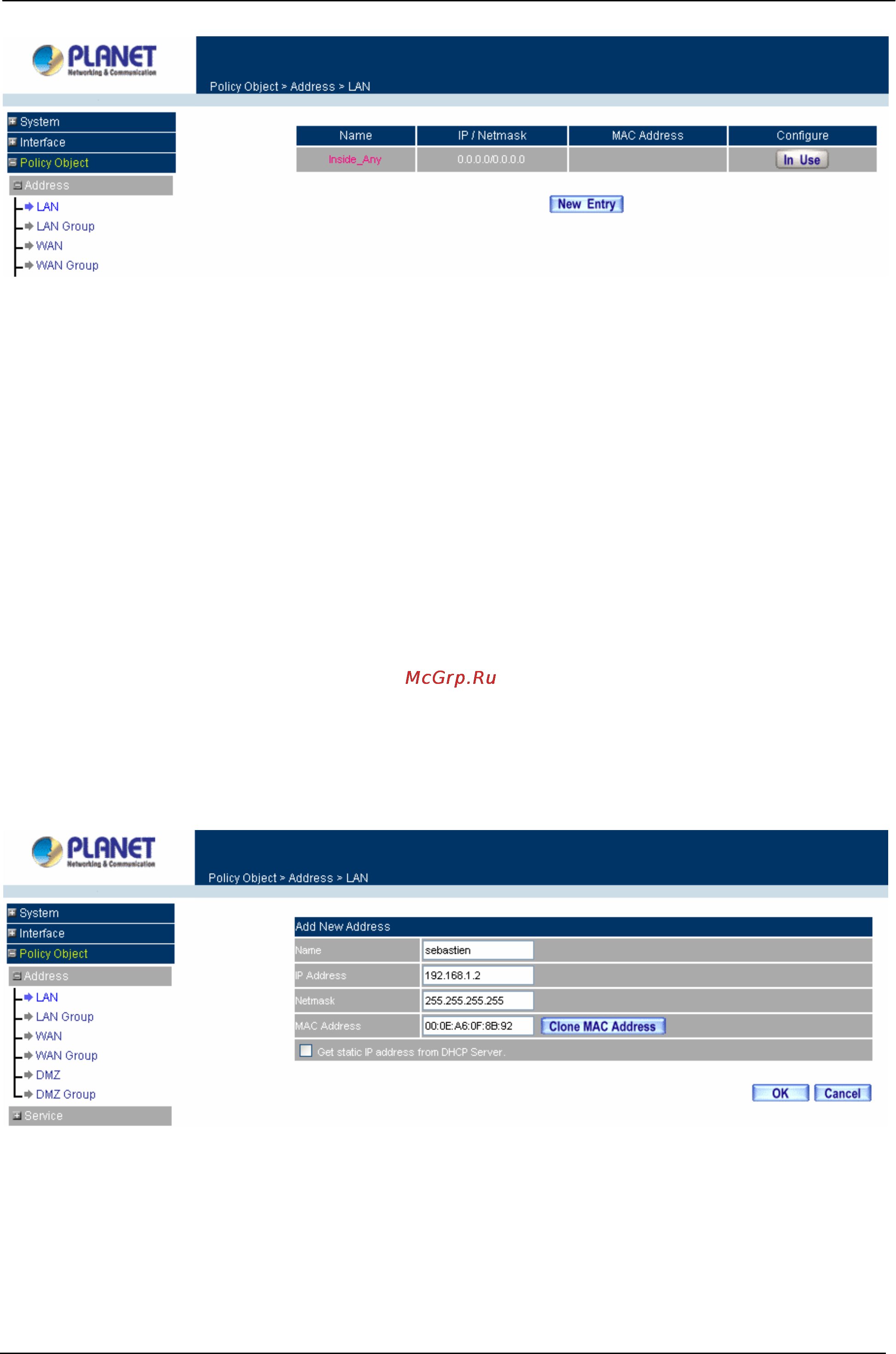

Definition

Name: Name of LAN network address.

IP / Netmask: IP address and subnet mask of LAN network

MAC Address: MAC address corresponded with LAN IP address.

Configure: You can configure the settings in LAN network. Click Modify to change the parameters in LAN

network. Click Remove to delete the settings.

In the LAN window, if one of the members has been added to Policy or LAN Group, the Configure column

will show the message – In Use. In this case, you are not allowed to modify or remove the setting.

Adding a new LAN Address

Step 1. In the LAN window, click the New Entry button.

Step 2. In the Add New Address window, enter the settings of a new LAN network address.

Step 3. Click OK to add the specified LAN network or click Cancel to cancel the changes.

If you want to enable Get Static IP address from DHCP Server function, enter the MAC Address then check

the Get Static IP address from DHCP Server.

Modifying an LAN Address

- 41 -
