Multi-Homing Security Gateway User’s Manual

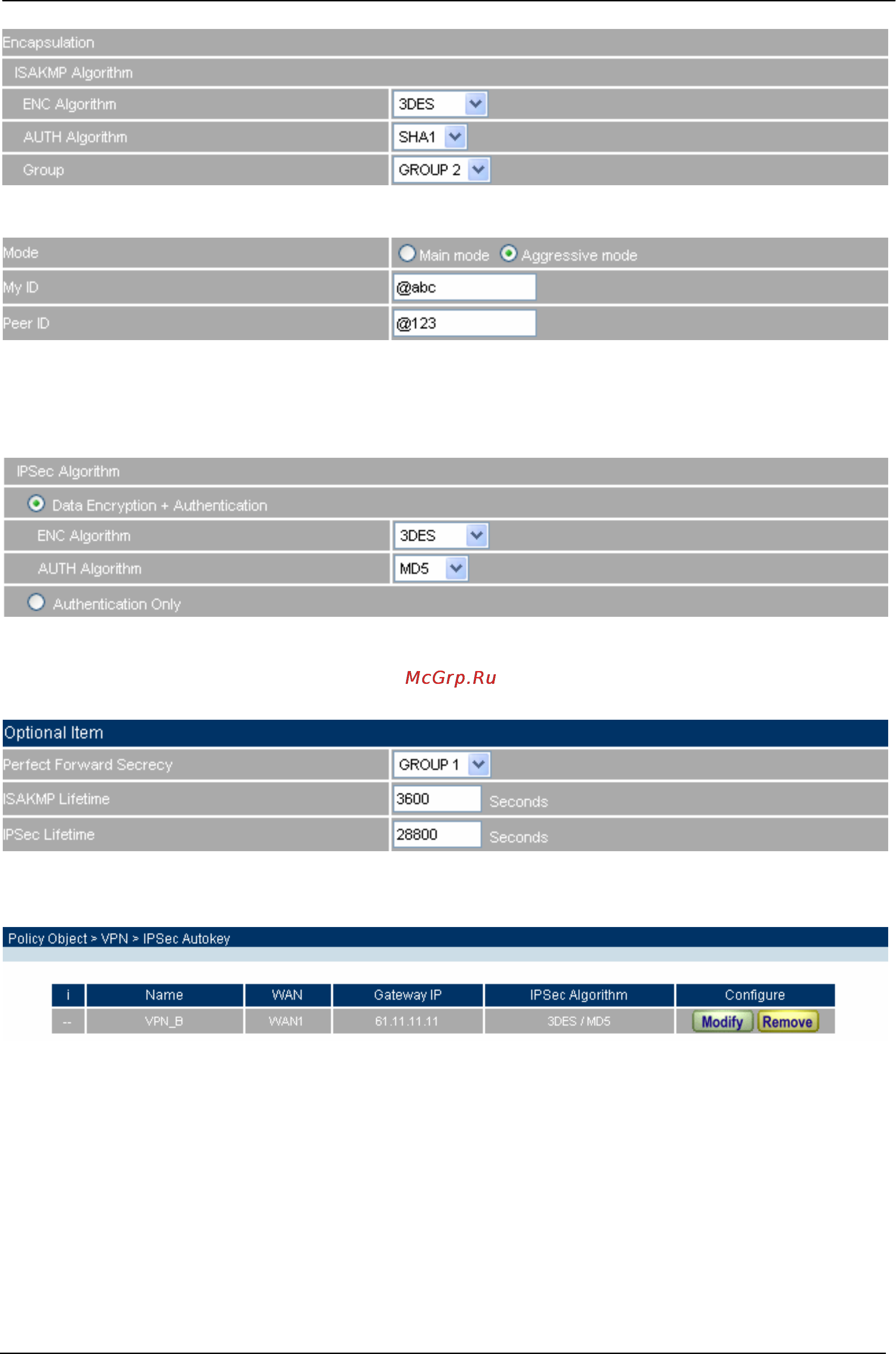

Step 6. In IPSec Algorithm Table, choose Data Encryption + Authentication. We choose 3DES for ENC
Algorithm and MD5 for AUTH Algorithm.
Step 7. Choose GROUP 1 as the Perfect Forward Secrecy setting, and leave the default setting with 28800
seconds in IPSec Lifetime and 3600 seconds for ISAKMP Lifetime.
Step 8. Click OK to finish the setting of Company B.
Step 9. Click Trunk and press New Entry to configure the further setting.
Step 10. Enter Site_B as the new trunk name, and select LAN interface as the VPN source. Fill LAN IP subnet
192.168.20.0 with subnet mask IP 255.255.255.0.
- 144 -
