Multi-Homing Security Gateway User’s Manual
Schedule: Select the item listed in the schedule to enable the policy to automatically execute
the function in a certain time and range.
Trunk: Check to allow VPN traffic passing through.
Action: Select Permit or Deny ALL from the drop down list to allow or reject the packets
travelling from the specified WAN network to the DMZ network.
Traffic Log: Select Enable to enable flow monitoring.
Statistics: Select Enable to enable flow statistics.
IDP: Check to enable IDP feature.
Max. Concurrent Sessions: The maximum concurrent sessions that allows to pass through
CS-1000. 0 means it is unlimited.
QoS: Select the item listed in the QoS to enable the policy to automatically execute the function
in a certain time and range.
NAT: Select enable to allow WAN or LAN user to access DMZ resource using with DMZ
interface’s IP address.
Step 3: Click OK.

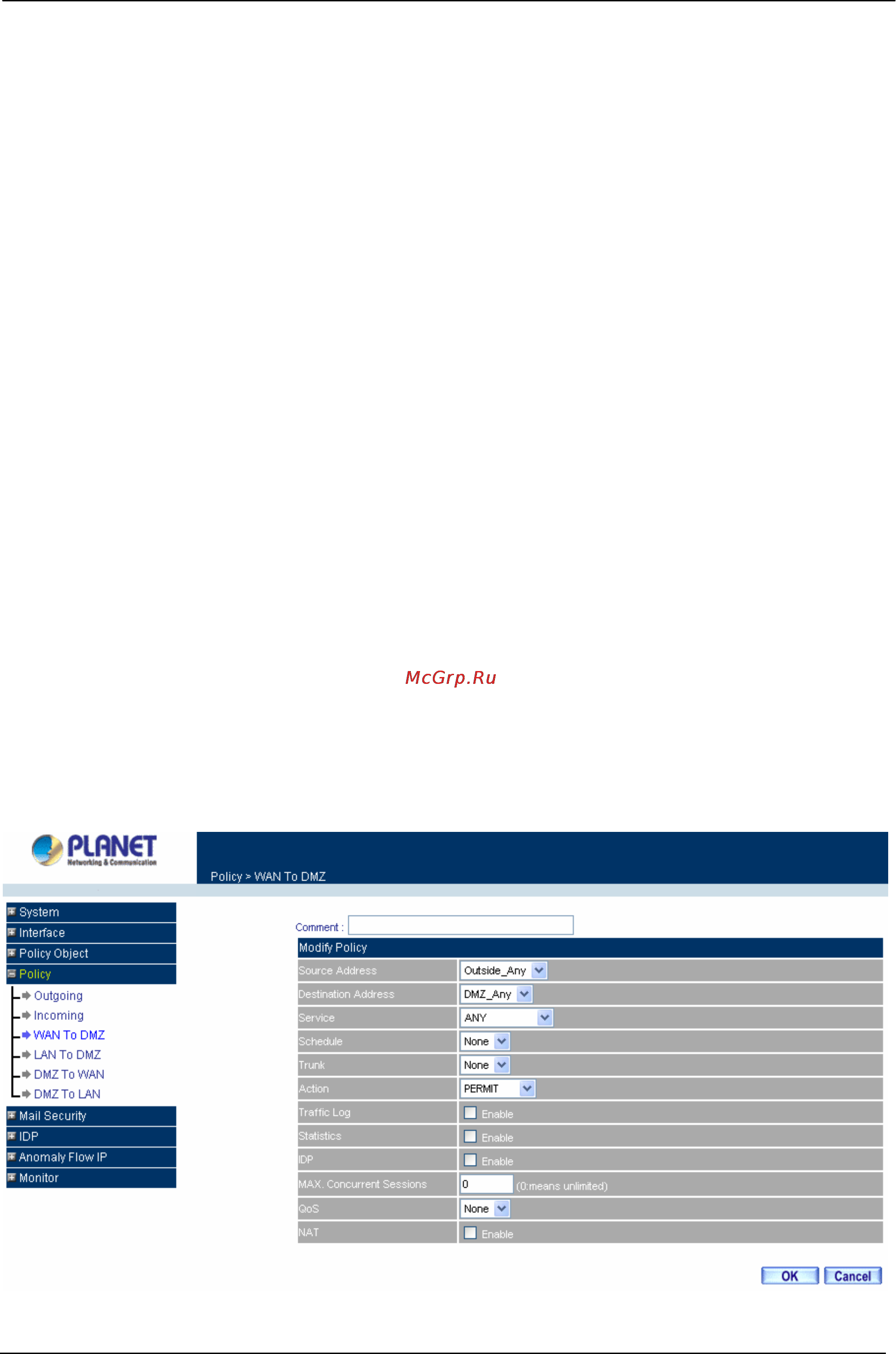

Modifying a WAN To DMZ policy:
Step 1: In the WAN To DMZ window, locate the name of policy desired to be modified and click its
corresponding Modify option in the Configure field.
Step 2: In the Modify Policy window, fill in new settings.
Step 3: Click OK to do save modifications.
Removing a WAN To DMZ Policy:
- 168 -
