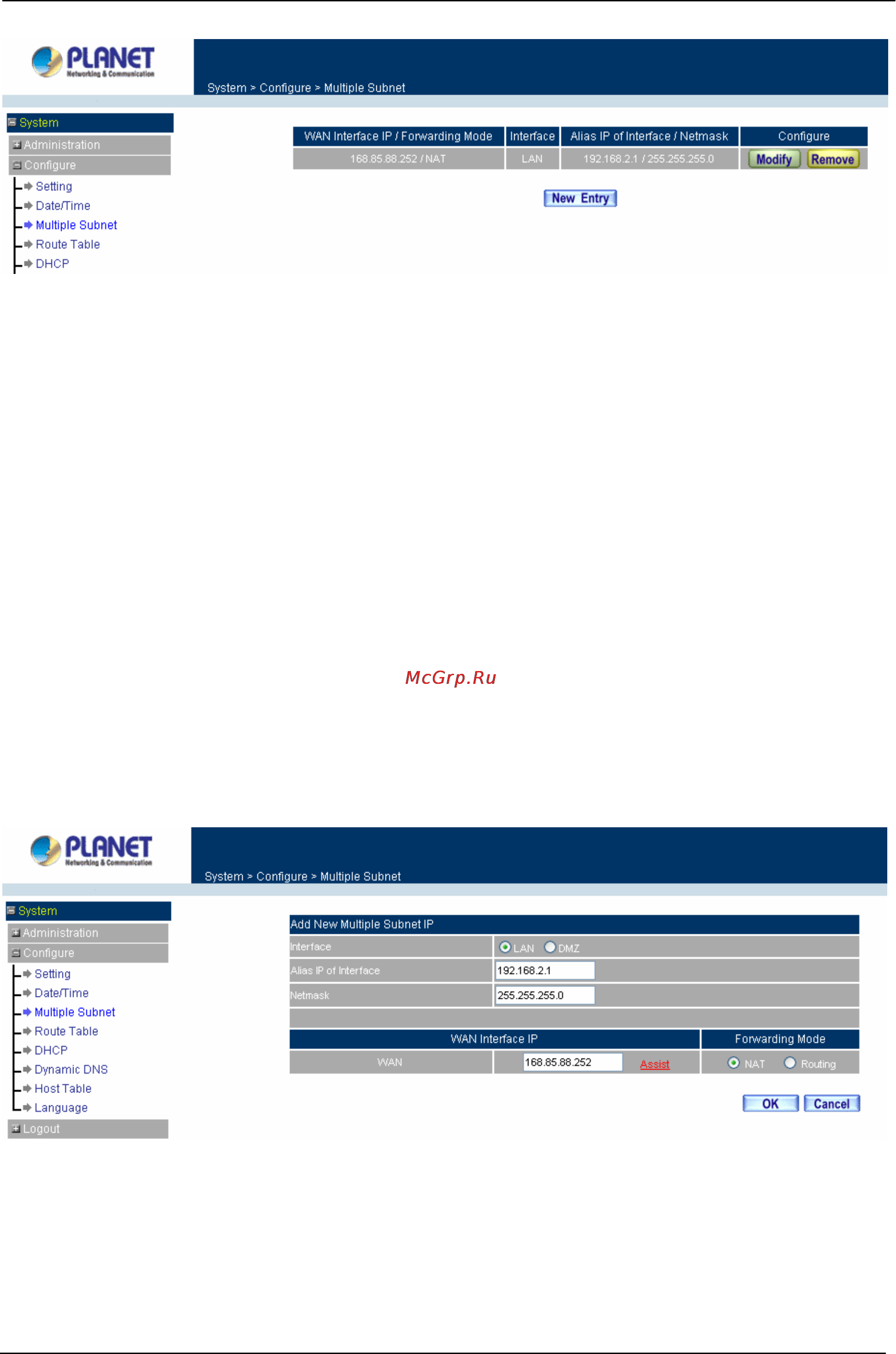

Multiple Subnet functions

WAN Interface IP / Forwarding Mode: Display WAN Port IP address and Forwarding Mode.

Interface: Indicate the multiple subnet location in LAN or DMZ site.

Alias IP of Interface / Netmask: Local port IP address and subnet Mask.

Configure: Modify the settings of Multiple Subnet. Click Modify to modify the parameters of Multiple Subnet

or click Delete to delete settings.

Add a Multiple Subnet NAT Mode.

Step 1: Click the New Entry button below to add Multiple Subnet.

Step 2: Enter the IP address in the website name column of the new window.

Alias IP of Interface: Enter Local port IP address.

Netmask: Enter Local port subnet Mask.

WAN Interface IP: Add WAN IP.

Forwarding Mode: Click the NAT button below to setup.

Step 3: Click OK to add Multiple Subnet or click Cancel to discard changes.

Modify a Multiple Subnet

Step 1: Find the IP address you want to modify and click Modify.

Step 2: Enter the new IP address in Modify Multiple Subnet window.

Step 3: Click the OK button below to change the setting or click Cancel to discard changes.
