Planet ISW-500 [11/15] Installation steps

3. NETWORK INSTALLATION

In this paragraph, we will describe how to install the 5/8-Port 10/100Base-TX Industrial Switch and the

installation points for the attention.

Installation Steps

Step

1: Unpack the Industrial switch.

Step2: Check the DIN-Rail is screwed on the Industrial switch. (Please refer to DIN-Rail Mounting

section for DIN-Rail installation If the DIN-Rail is not screwed on the Industrial switch). If you want to wall

mount the Industrial switch, then please refer to Wall Mount Plate Mounting section for wall mount plate

installation.

Step3: To hang the Industrial switch on the DIN-Rail track or wall, please refer to the Mounting

Installation section.

Step4: Power on the Industrial switch. (Please refer to the Wiring the Power Inputs section for power

input) The power LED on the Industrial switch will light up. Please refer to the LED Indicators section for

meaning of LED lights.

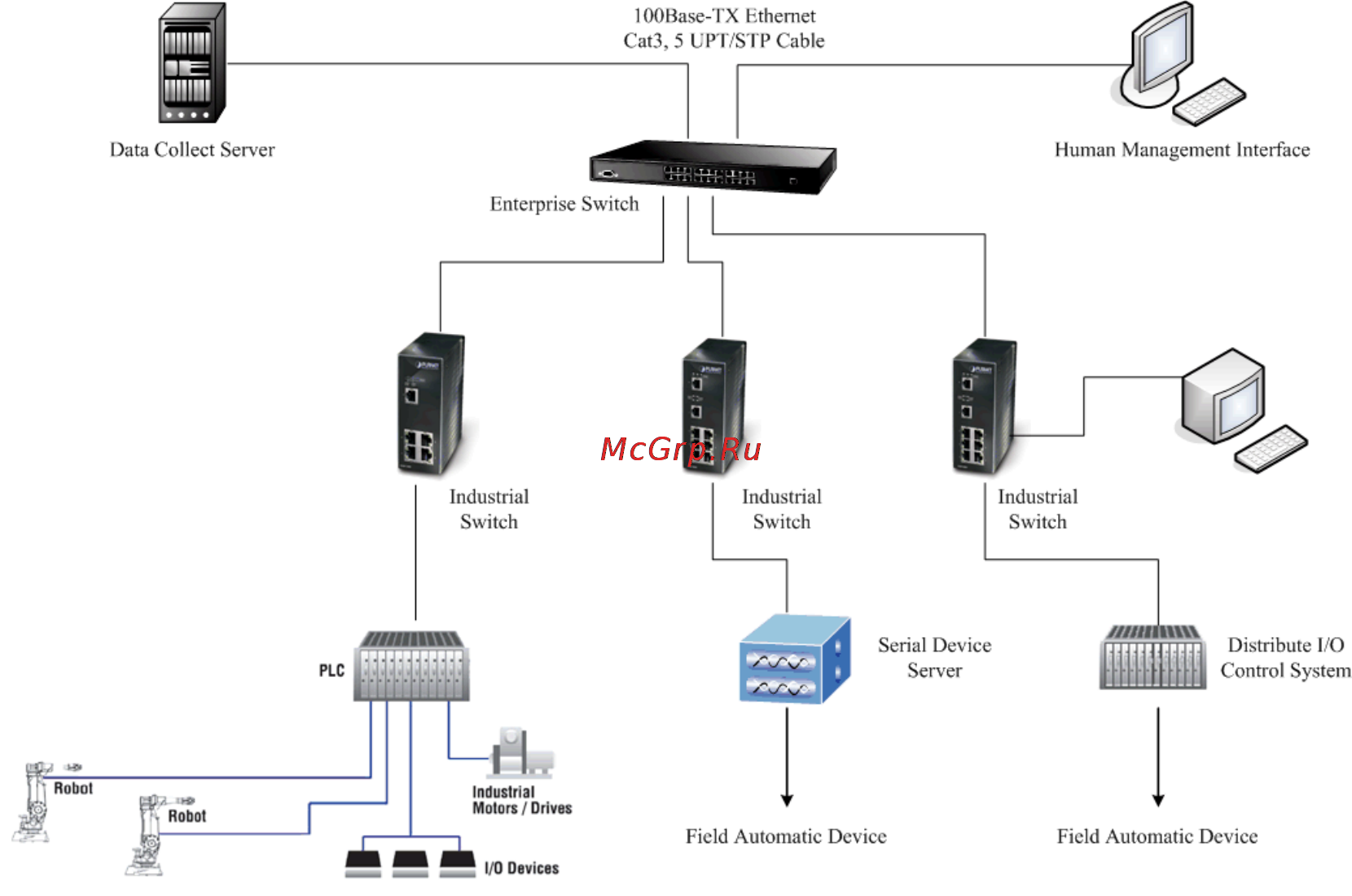

Step5: Prepare the twisted-pair, straight through Category 5 cable for Ethernet connection.

Step6: Insert one side of Category 5 cables into the Industrial switch Ethernet port (RJ-45 port) and

another side of category 5 cables to the network devices' Ethernet port (RJ-45 port), ex: switch, Pc or

Server. The UTP port (RJ-45) LED on the Industrial switch will light up when the cable connected with the

network device. Please refer to the LED Indicators section for LED light meaning.
