2.2 Mounting Installation

This section describes how to install the Ethernet Switch and make connections to it. Please read the

following topics and perform the procedures in the order being presented.

2.2.1 DIN-Rail mounting

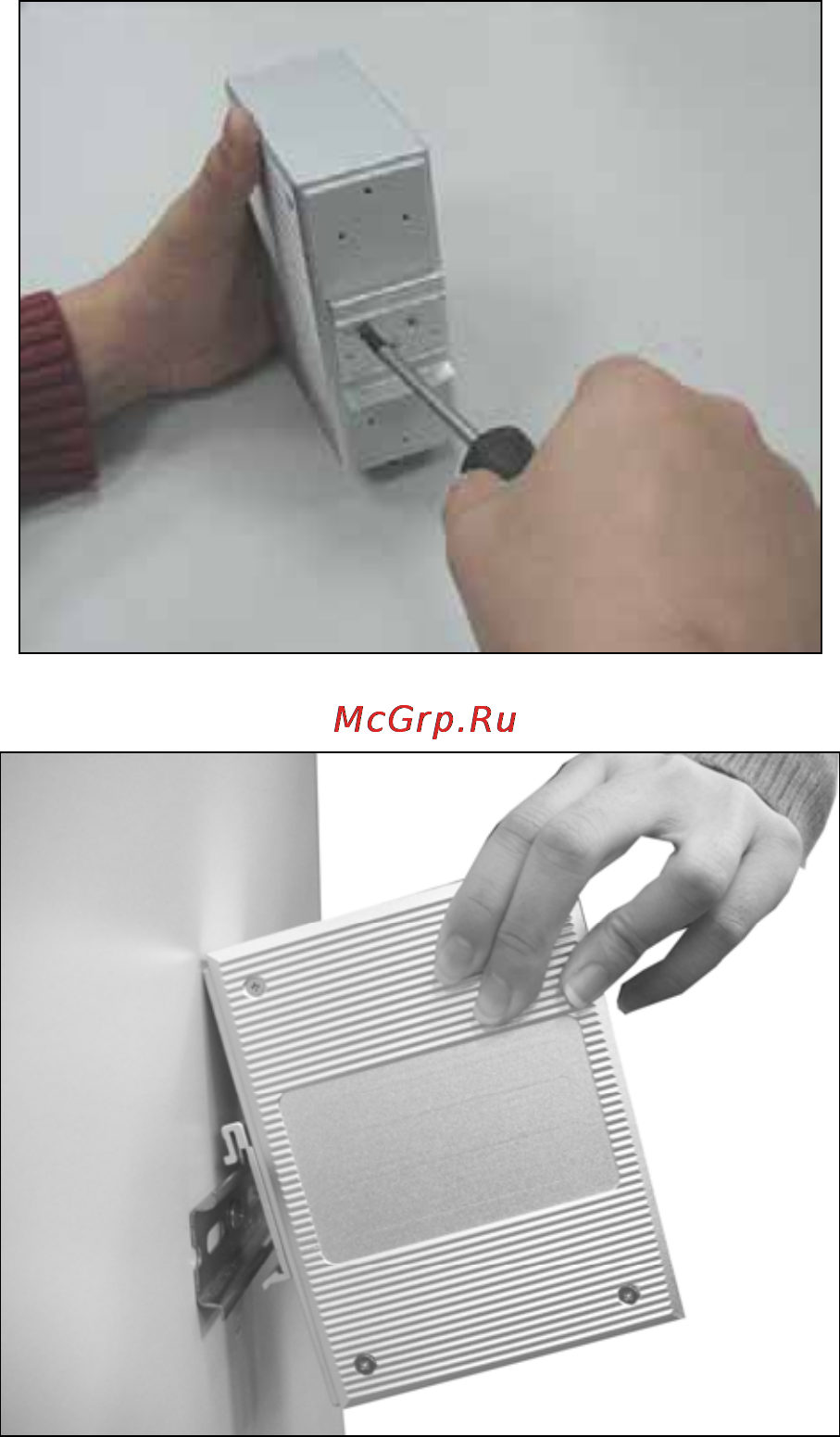

The DIN-Rail is screwed on the industrial switch when out of factory. If the DIN-Rail is not screwed on the

industrial switch, please see the following figure to screw the DIN-Rail on the switch. To hang the

industrial switch, follow the below steps:

Step1: Insert the top of DIN-Rail into the track.

Step2: Lightly push the button of DIN-Rail into the track.
