2. HARDWARE INSTALLATION

This section describes the functionalities of the Switch's components and guides how to install it on the

rack or mount to the wall. Basic knowledge of networking is assumed. Please read this chapter

completely before continuing.

2.1 Product Description

The PLANET entry level Industrial Ethernet Switch is industrially hardened Ethernet switch specifically

designed to operate reliably in electrically harsh and climatically demanding environments.utilization.

2.1.1 Product Overview

The switch provides a high level of immunity to electromagnetic interference and heavy electrical surges

typical of environments found on plant floors or in curb side traffic control cabinets. An operating

temperature range of -0 to +60 Degree C coupled with hazardous location certification (Class 1 Division 2)

allows the switch to be placed in almost any location.

The switch is packaged in a compact, IP-30 standard aluminum that allows either DIN or panel mounting

for efficient use of cabinet space. The switch provides an integrated power supply with a wide range of

voltages (12-48VDC) for worldwide operability or dual-redundant, reversible polarity, 24VDC and 48VDC

power supply inputs for high availability applications requiring dual or backup power inputs.

2.1.2 Switch Front Panel

Figure 2-1 shows the front panel of the switch.

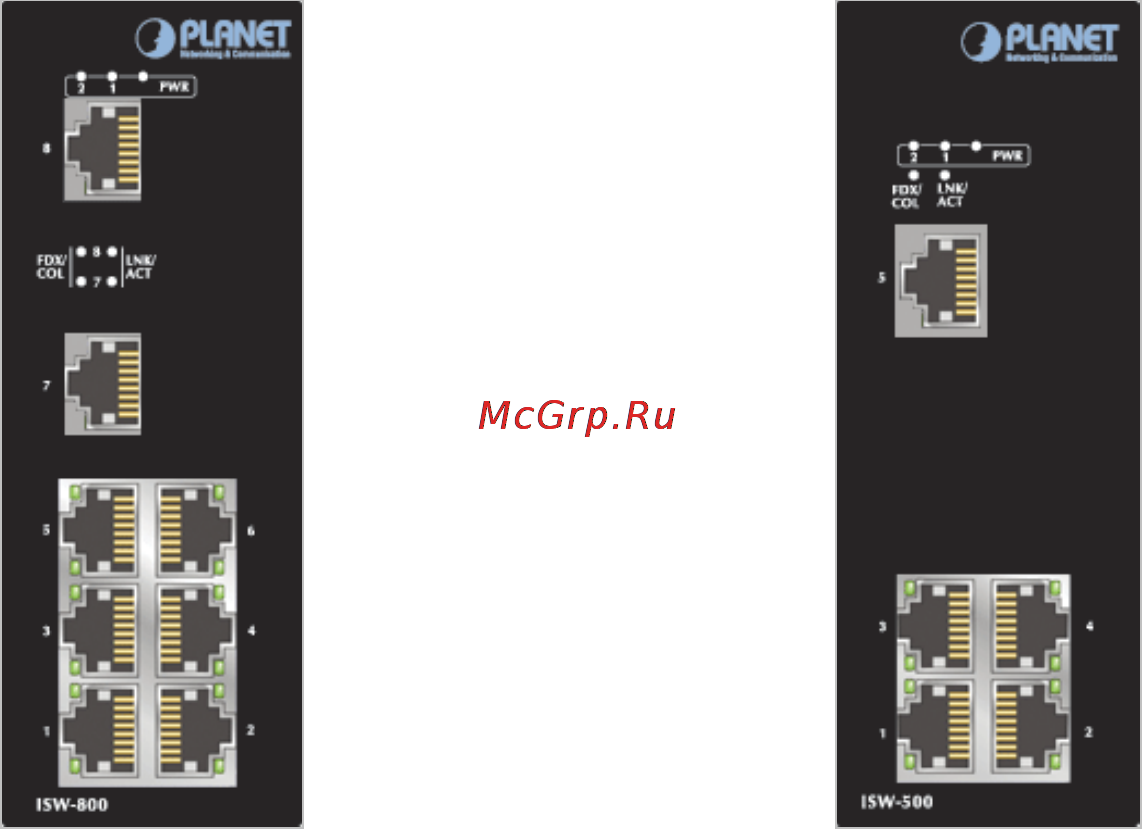

Figure 2-1 ISW-800 Front Panel Figure 2-2 ISW-500 Front Panel
