Appendix A Networking Connection

A.1 Switch‘s RJ-45 Pin Assignments

Contact MDI MDI-X

1 1 (TX +) 3

2 2 (TX -) 6

3 3 (RX +) 1

6 6 (RX -) 2

4, 5, 7, 8 Not used Not used

A.2 RJ-45 cable pin assignment

2 1 3 6

2 1

3 6

There are 8 wires on a standard UTP/STP cable and each wire is color-coded. The following shows the

pin allocation and color of straight cable and crossover cable connection:

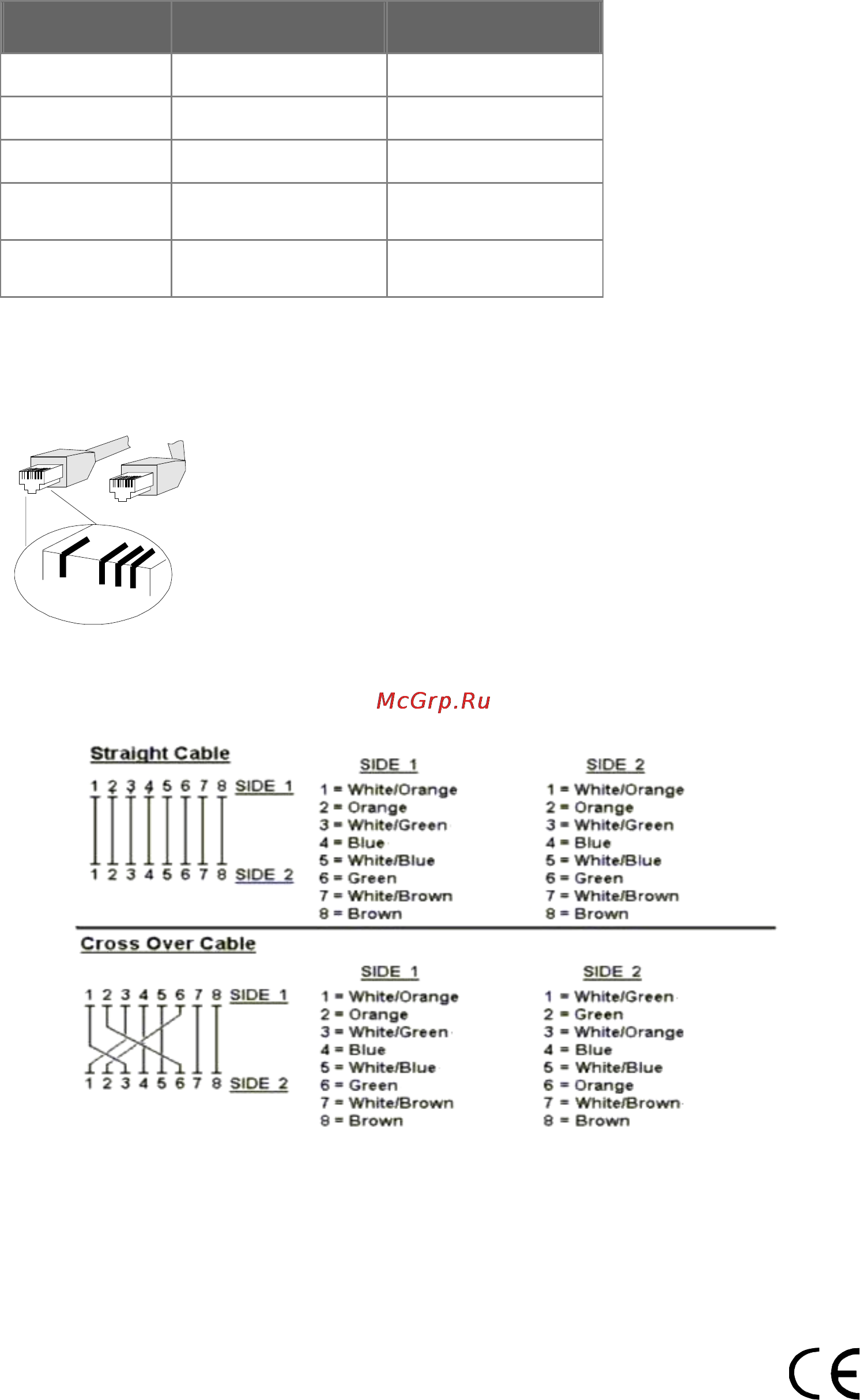

Figure A-1: Straight-Through and Crossover Cable

Please make sure your connected cables are with same pin assignment and color as above picture

before deploying the cables into your network.
