General Constructions Si71-502
2 General Constructions

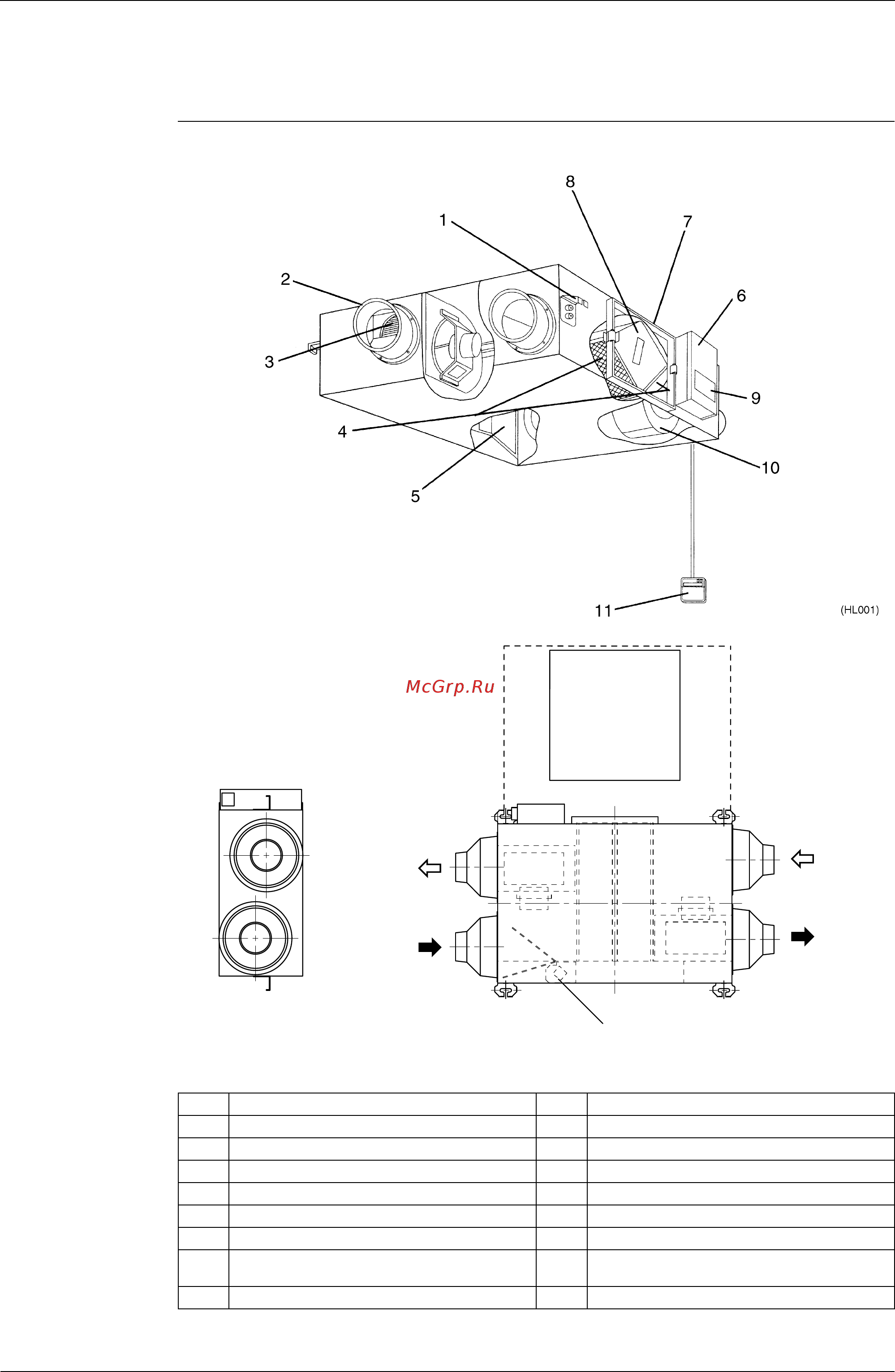

1. General Constructions
1.1 Explanation
VAM150GJVE
VAM250GJVE
VAM350GJVE
VAM500GJVE
VAM650GJVE
VAM800GJVE
VAM1000GJVE
1 Hanger Bracket 2 Duct Connection Flange
3 Exhaust Fan 4 Air Filter (Long Life Filter)
5 Damper 6 Control Box
7 Maintenance Cover 8 Heat Exchange Elements
9 Name Plate 10 Air Supply Fan
11 Remote Controller (Option Accessory) 12 Damper Plate
13 EA (Exhaust Air) [Exhaust Air to Outdoor] 14 OA (Outdoor Air) [Fresh Air from Outdoor]
15 Maintenance Space for The Air Filters, Heat
Exchange Elements and Control Box
16 RA (Return Air) [Exhaust Air from Room]
17 SA (Supply Air) [Feed Air to Room]
(HL002)
12
13
14
16
17
15
