Si71-502 Control Functions
Control Functions 23
1.2 Explanation of Individual Functions
1.2.1 Ventilation Operation Control
Controls ventilation fan motors (supply and exhaust air fans) and damper motor.
1) Normal operation

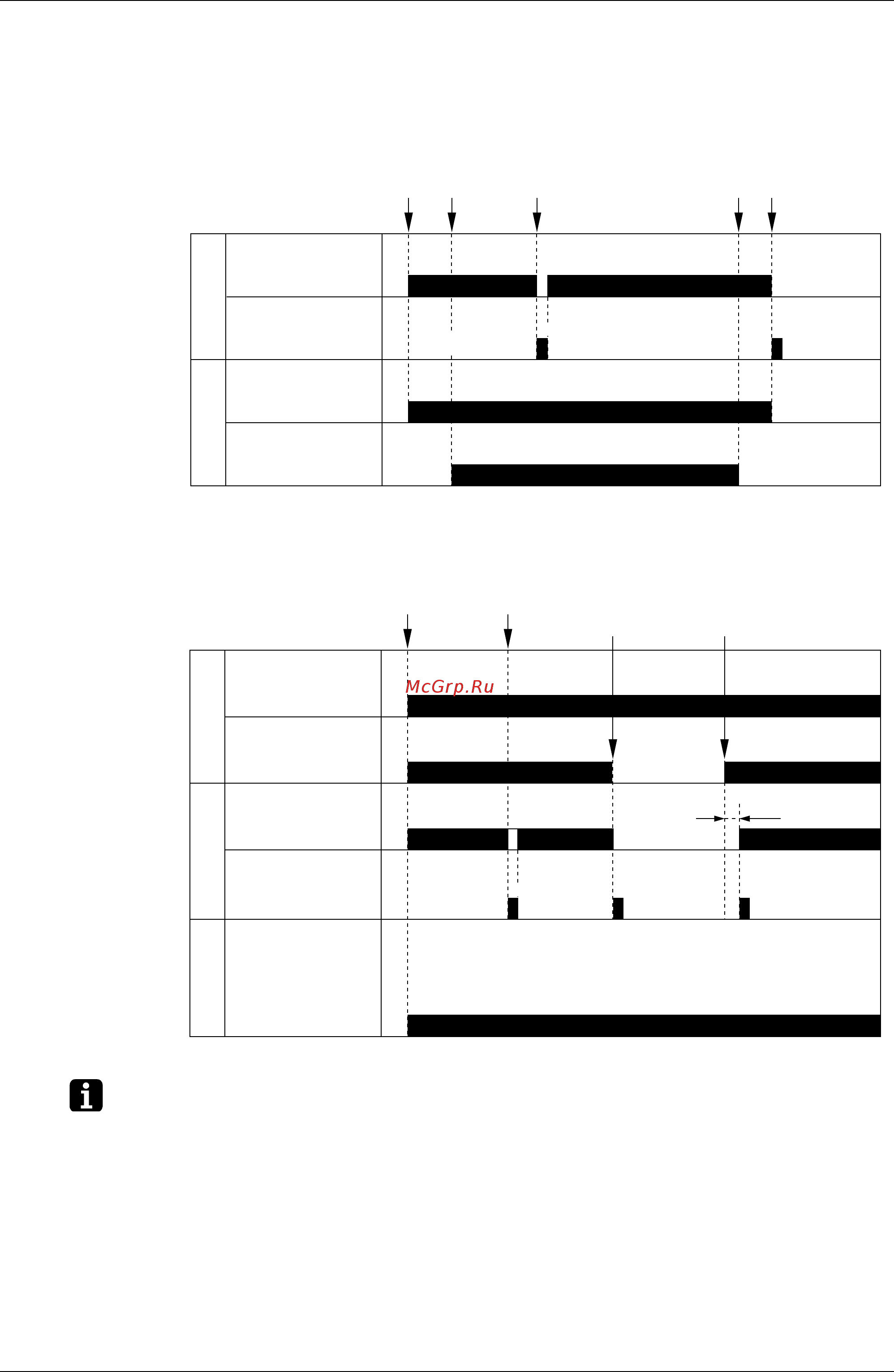

Operation chart
2) Direct duct connection with air conditioner
Operation chart
Note: Direct duct connection setting can be made in VRV system or using field setting mode of HRV LCD remote
controller.
Operation
Cleaning
time
Normal ventilation
mode selection
Filter sign
reset
Stop
Heat reclaim
ventilation unit
Ventilation fan motor
Damper motor
(ventilation mode)
Normal ventilation
Total heat
exchange
ventilation
Remote controller
indication
Operation lamp
ON OFF ON
Filter sign indicator
ON
ON
(HL020)
Total heat exchange
ventilation
ON
Operation
Normal ventilation
mode selection
Air conditioner
fan OFF
Air conditioner
fan ON
Air conditioner
ON/OFF
Operation
Fan motor
Heat reclaim
ventilation unit
Ventilation fan motor
10 sec
Damper motor
(ventilation mode)
Total heat
exchange
ventilation
Normal
ventilation
Total heat
exchange
ventilation
Normal ventilation
ON
ON
OFF
ON
Remote controller
indication
Operation lamp
Lamp
ON
OFF
OFF
(HL021)
ON
