Si71-502 Supplementary Explanation
Supplementary Explanation 63

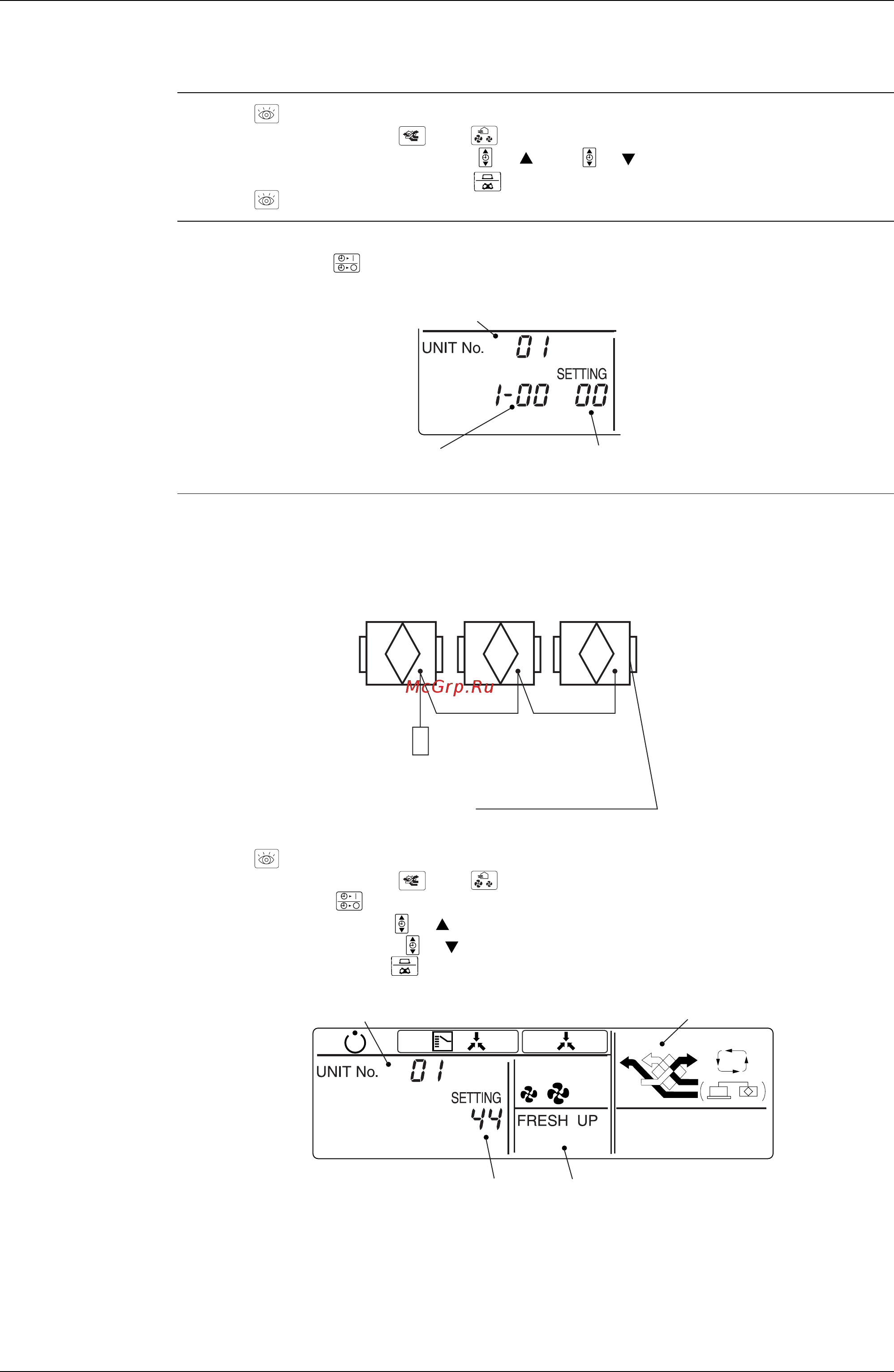

1.1.6 Field Setting
(Example of setting operation)
Centralized control
group No. setting
(mode No.: 00)
1. Press for more than 4 seconds.
2. Set mode No. to “00” using or .
3. Set centralized control group No. using [ ] or [ ].
4. Enter displayed group No. by pressing .
5. Press to return to normal operation mode.
Centralized control
group No. setting
(mode No.: 30)
For group control, the following step must be performed.
(*) Set unit No. using .
Procedure for
entering individual
settings (mode No.:
44)
The setting is generally the same for all units in the same group control system. However, the setting of
selected units can be fixed by the following method.
< Example >
1. Press for more than 4 seconds.
2. Set mode No. to “44” using or .
3. Set unit No. using .
4. Set ventilation mode using [ ].
5. Set ventilation volume using [ ].
6. Enter settings by pressing .
(HL053)
Centralized
control group No.
Mode No.
Unit No.
High
High
Low
Ventilation volume
at High
Ventilation volume fixed at Low
(HL054)
Unit No.
Ventilation mode
(heat reclaim ventilation unit)
Mode No.
Ventilation volume
(heat reclaim ventilation unit)
(HL055)
