Si71-502 Control Functions
Control Functions 29
1.3 Layout of switches on Printed Circuit Board
1.3.1 Printed Circuit Board
Layout of switches on printed circuit board

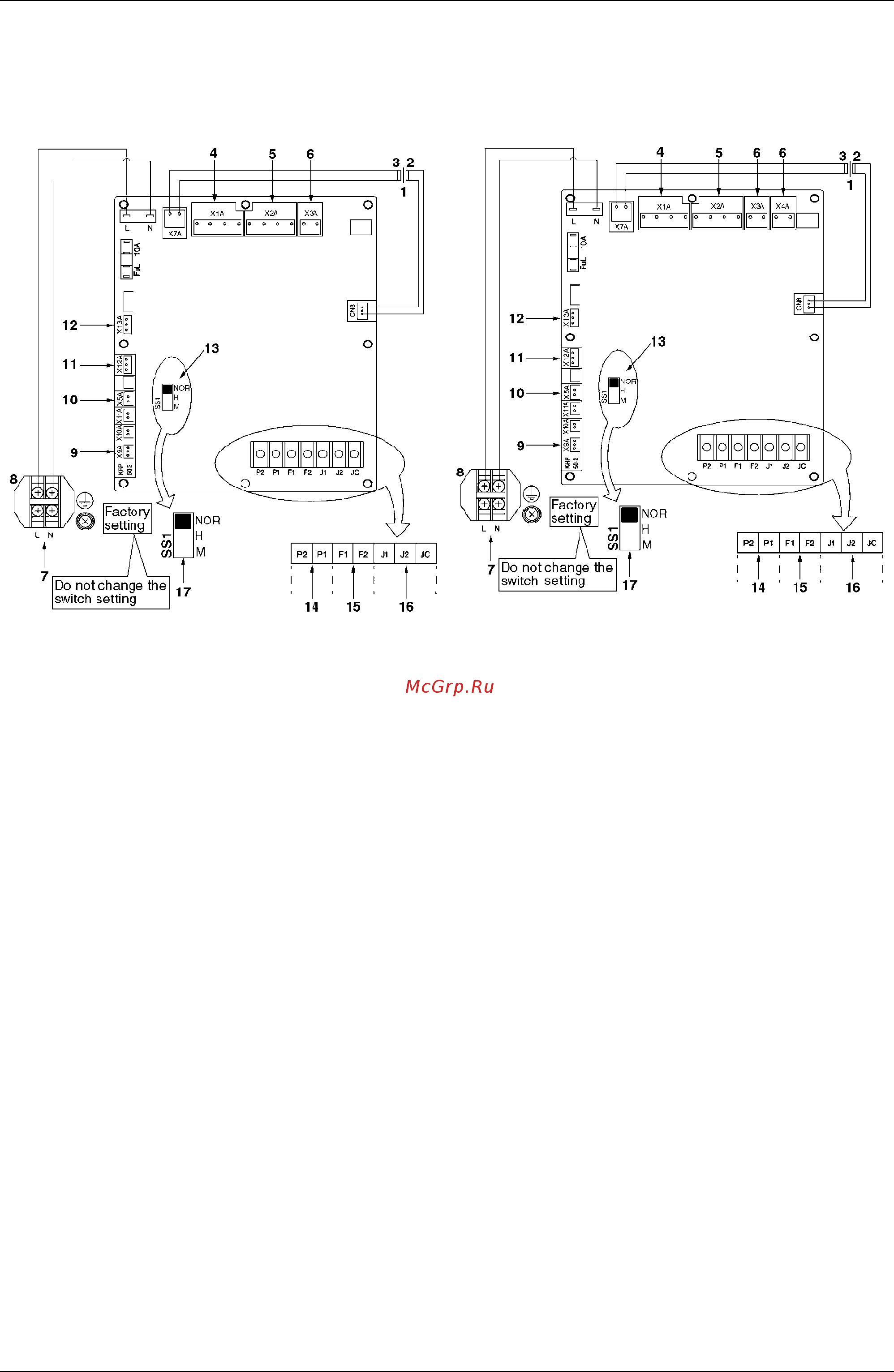

<In case of VAM 150 ~ 1000GJVE> <In case of VAM 1500 · 2000GJVE>
1. Transformer
2. Secondary
3. Primary
4. Connector for supply air fan
5. Connector for exhaust air fan
6. Connector for damper
7. Power supply
8. Terminals
9. Connector for KPR50-2
10.Connector for damper
11.Connector for indoor air
thermistor
12.Connector for outdoor air
thermistor
13.Selector switch
14.Terminal port for remote
controller
15.Terminal port for centralized
control
16.Terminal port for no-voltage
external input
17.Factory setting
3P034928-5J
