Si71-502 Maintenance (for a Qualified Service Person Only)
Operation Manual 85
4. Maintenance (for a Qualified Service Person Only)
ONLY A QUALIFIED SERVICE PERSON IS ALLOWED TO PERFORM MAINTENANCE
Warning • BEFORE OBTAINING ACCESS TO TERMINAL DEVICES, ALL POWER SUPPLY CIRCUITS MUST
BE INTERRUPTED.
• To clean the HRV, or maintenance be sure to stop operation, and turn the power switch off. It may cause
electrical shock and it is very dangerous to touch the rotating part.
• Do not wash the HRV with water.
Doing so may result in an electric shock.
Caution • Use gloves when cleaning.
Cleaning without gloves may cause injury.
• Watch your step.
Use caution, as this requires working in high places.
• Do not use benzene or thinner to clean the outside surfaces of the air conditioner.
This may cause cracks, discoloration, or machine trouble.
4.1 How to Clean the Air Filter
Clean the air filter when the display shows “”
(TIME TO CLEAN AIR FILTER).
It will display that it will operate for a set amount of time.
CLEANING FREQUENCY
AT LEAST ONCE EVERY YEARS
(FOR GENERAL OFFICE USE)
(CLEAN THE MORE FREQUENTLY IF NECESSARY.)
• Increase the frequency of cleaning if the unit is installed in a room where the air is etermely
contaminated.
• If the dirt becomes impossible to clean, change the air filter (Air filter for exchange is optional).

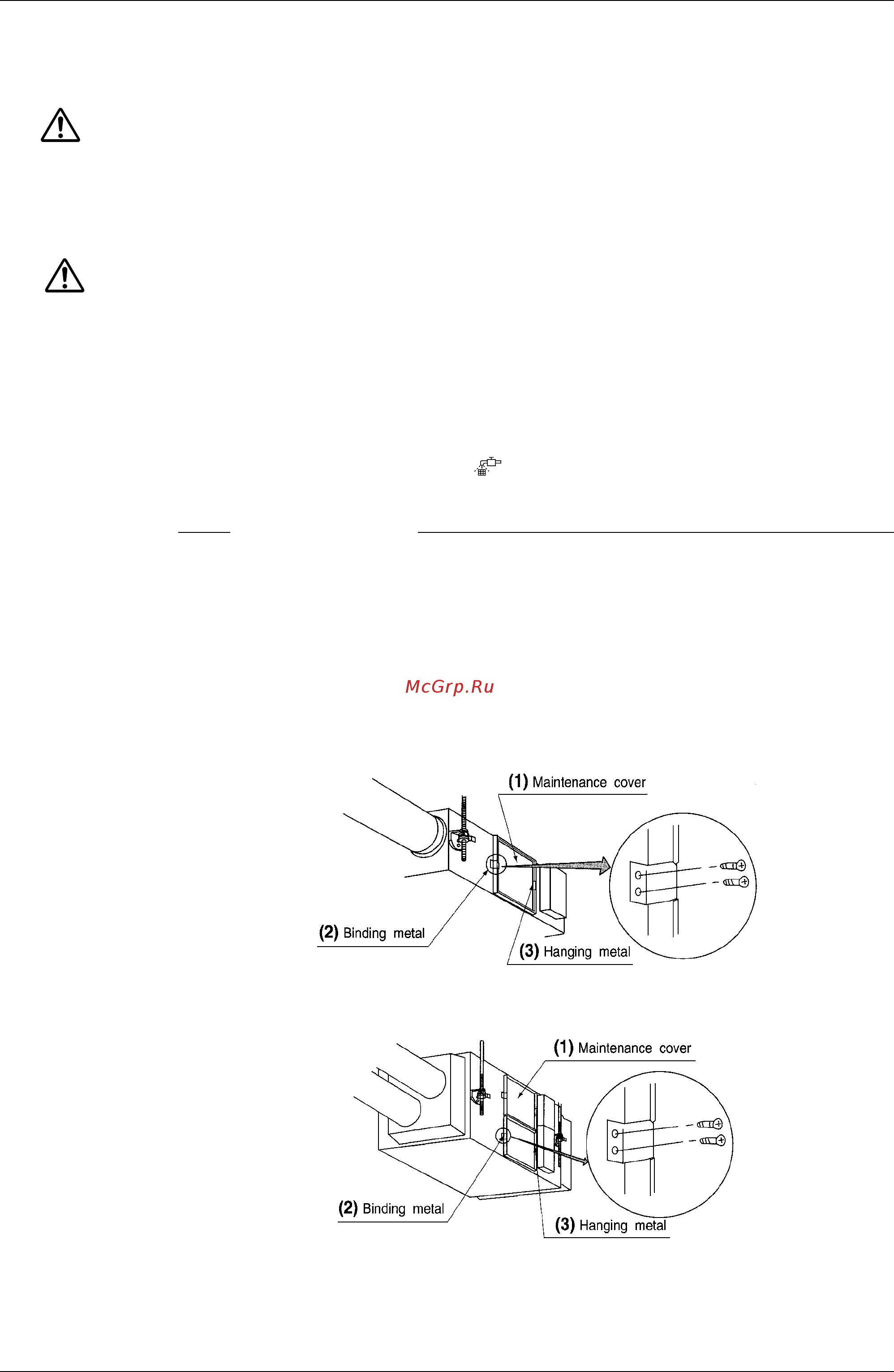

1. Detach the maintenance cover.
Go into ceiling through the inspection hatch, remove binding metal of maintenance cover and take it
off.
fig 6
MODELS VAM150GJVE-1000GJVE
MODELS VAM1500GJVE
VAM2000GJVE
