Circuit Operations Si71-502
32 Circuit Operations
1. Circuit Operations

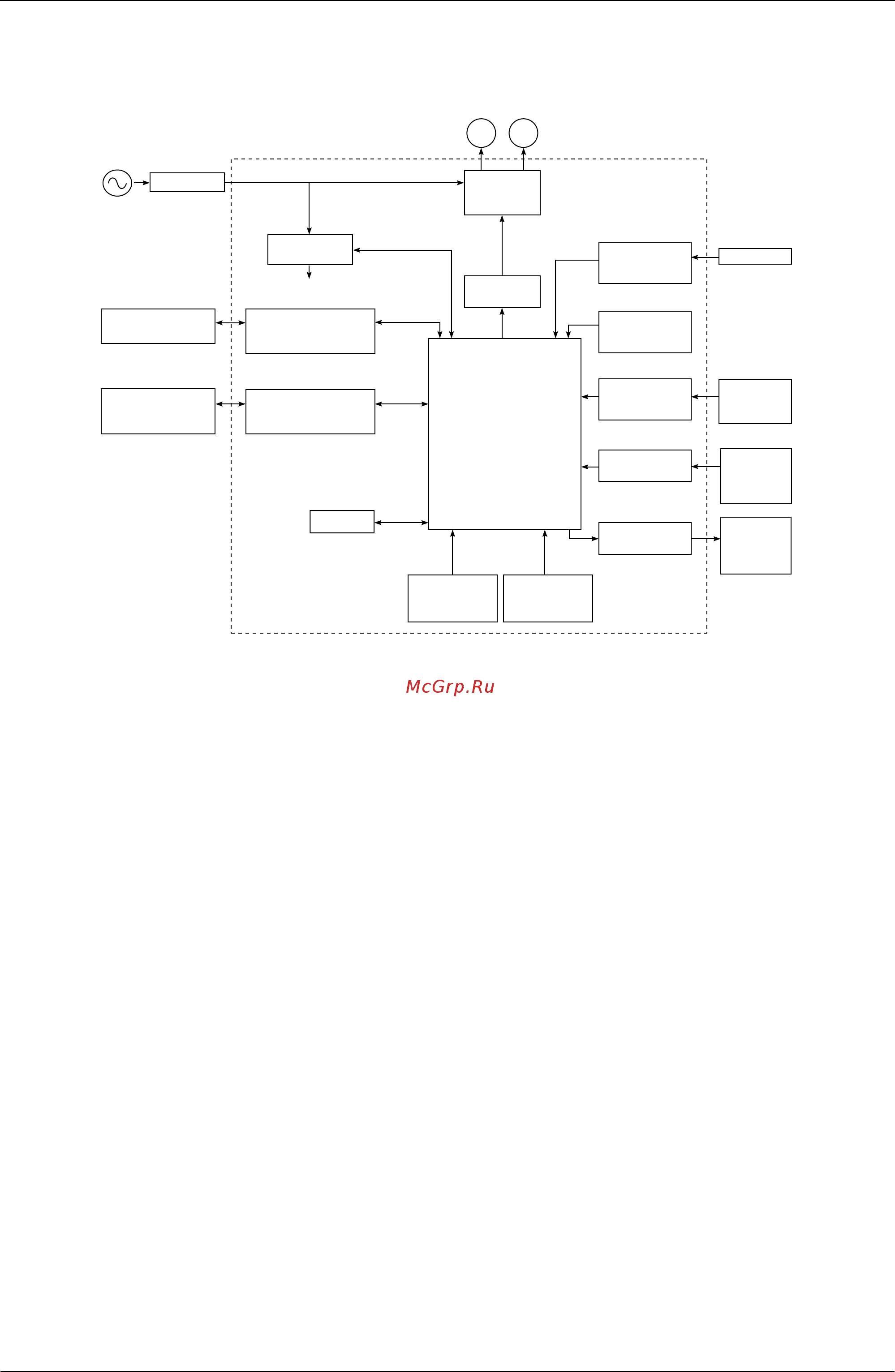

1.1 Circuit Configuration
Transformer
PCB assembly
Fan motor
Damper motor
Centralized control
equipment
Remote controller
for heat reclaim
ventilation unit
Power supply
circuit
To circuits and
microcomputer
Detection and
cut-off of+16V
current
Fan motor,
damper
motor relay
Central data
transmission interface
circuit
Remote control signal
transmission interface
circuit
Relay drive
circuit
Microcomputer
oscillation
circuit
Microcomputer
reset circuit
Control
microcomputer
Thermistor
interface
circuit
Thermistor
Airflow rate
setting switch
interface circuit
Damper motor
limit switch
interface circuit
Damper
motor
limit switch
External input
interface circuit
Air
conditioner
of other
maker, etc.
KRP50-2
interface circuit
Humidifier,
abnormality
signal
output, etc.
+16V
+ 5V
FM
DM
EEPROM
(HL026)
