1. AC INPUT
Iin
19----10
Arms

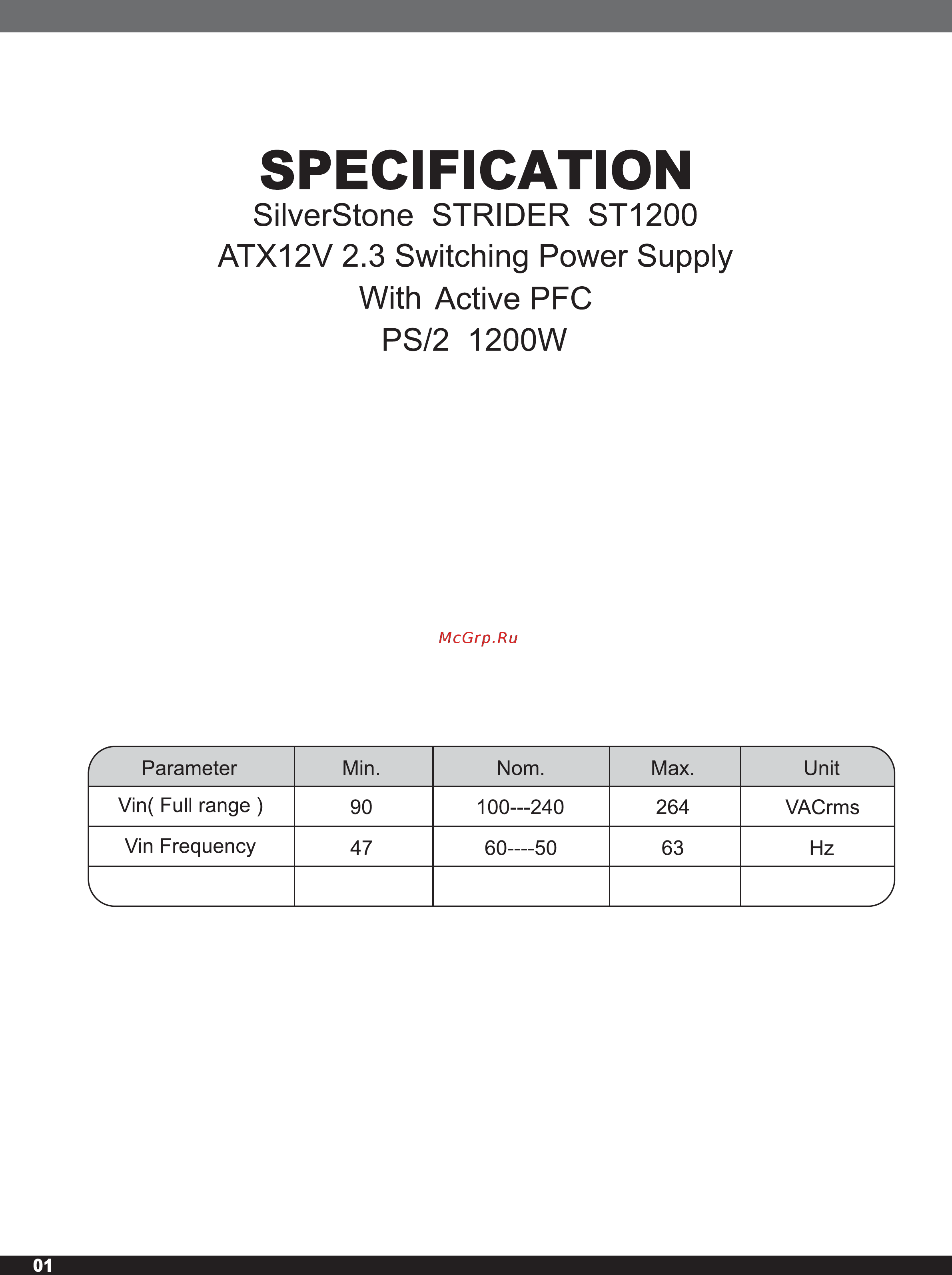

Table 1 AC Input Line Requirements
1-1. AC input requirements
The input voltage, current, and frequency requirements for continuous operation are stated
below.
This specification describes the requirements of 1200Watts switching power supply with an
stretch form-factor and EPS12V, +5V standby voltage,remote on/off control,full range line
input capability and forced air cooling characteristics.
The power supply must meet inrush requirements for any rated AC voltage, during turn on
at any phase of AC voltage, during a single cycle AC dropout condition, during repetitive
ON/OFF cycling of AC,and over the specified temperature range (Top). The peak inrush
current shall be less than the ratings of its critical components (including input fuse, bulk
rectifiers, and surge limiting device)
2. DC OUTPUT
