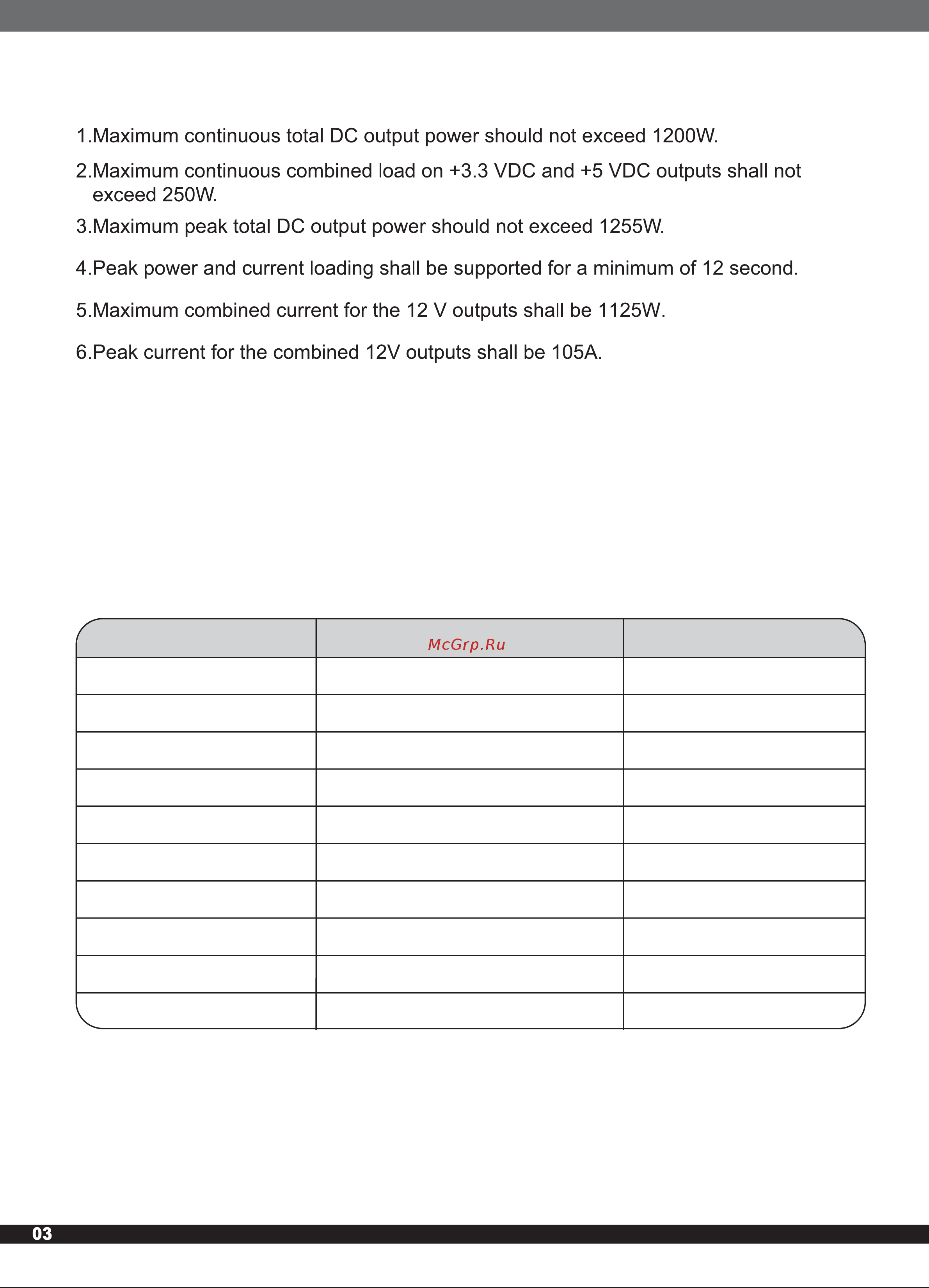

2-3. Output Ripple
2-3-1. Ripple regulation
Parameter
+3.3V
+5V
+12V1
+12V2
+12V3
+12V4
+12V5
+12V6
-12V
+5VSB
Ripple&Noise
50
50
120
120
120
120
120
120
120
50
Unit
mVp-p
mVp-p
mVp-p
mVp-p
mVp-p
mVp-p
mVp-p
mVp-p
mVp-p
mVp-p
2-3-2. Definition
