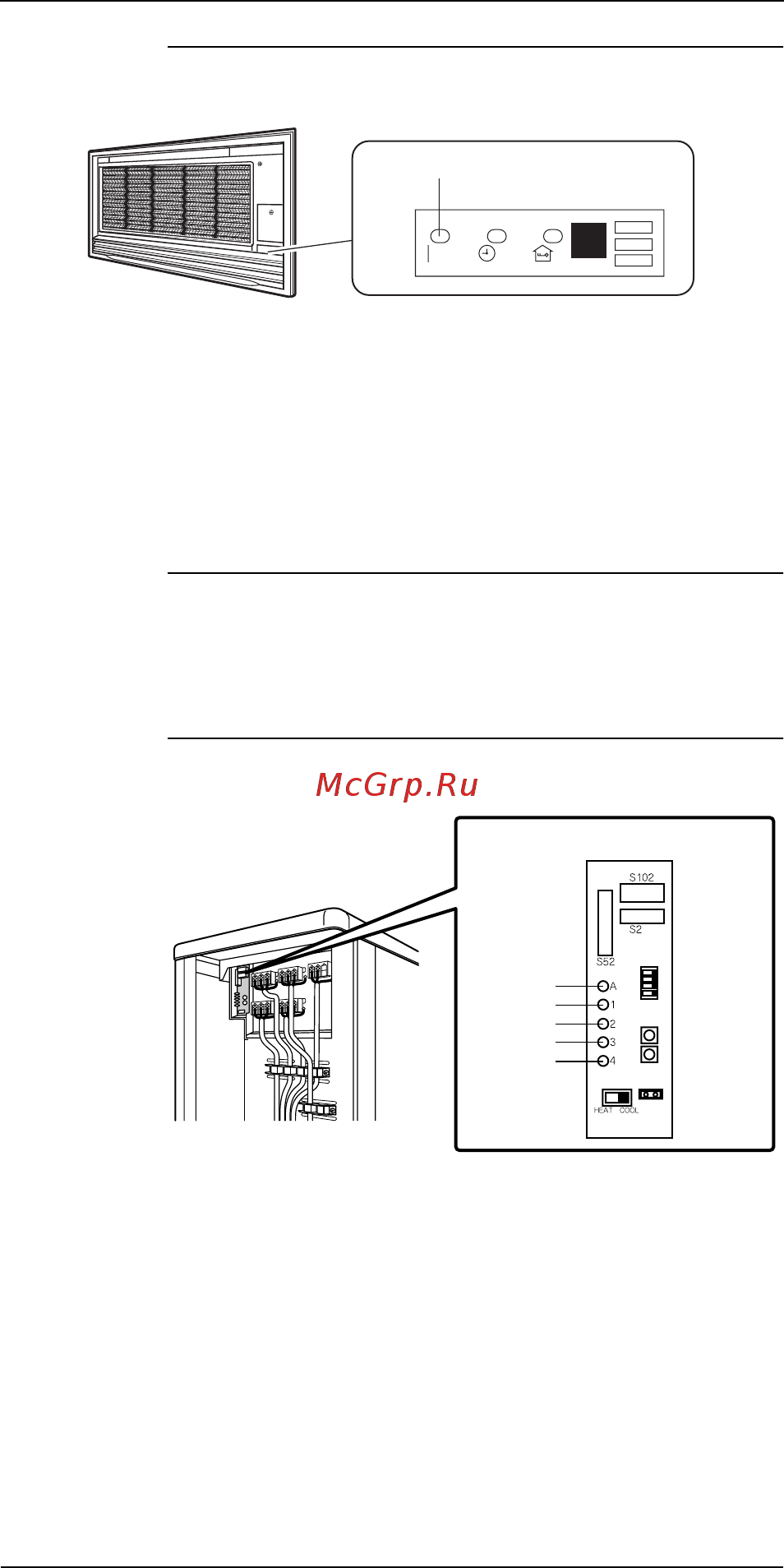

Troubleshooting with LED Si10-417_C
10 Service Diagnosis
Wall Built-in Type
1.1.2 Service Monitor
The indoor unit has one green LED (LED A) on the
control PCB. When the microcomputer works in order,
the LED A blinks.
1.2 Outdoor Unit
Pair
The outdoor unit has one green LED (LED A) on the
main PCB. When the microcomputer works in order, the
LED A blinks.
Multi
Ex: 4-room multi outdoor unit
There are a green LED (LED A) and red LEDs on the
outdoor unit PCB. The LED A indicates microcomputer
operation condition. In normal condition, the LED A is
blinking and the other LEDs are OFF.
Even after the error is canceled and the unit operates in
normal condition, the LED indication remains.
Operation lamp (green)
Service monitor PCB
LED A
LED 1
LED 2
LED 3
LED 4
