Si10-417_C Troubleshooting by Symptoms
Service Diagnosis 11
2. Troubleshooting by Symptoms
2.1 Air conditioner does not run.
Supposed
Causes
Power supply is OFF.
Improper power supply voltage
Improper connection of wire
Incorrect combination of indoor unit and outdoor unit
Battery shortage of remote controller
Invalid address setting
Protection device works
(dirty air filter, refrigerant shortage, overfilling, mixed
air, etc.)
Transmission error between indoor unit and outdoor
unit
(Defective outdoor unit PCB)
Trouble-
shooting
YES
YES
NO

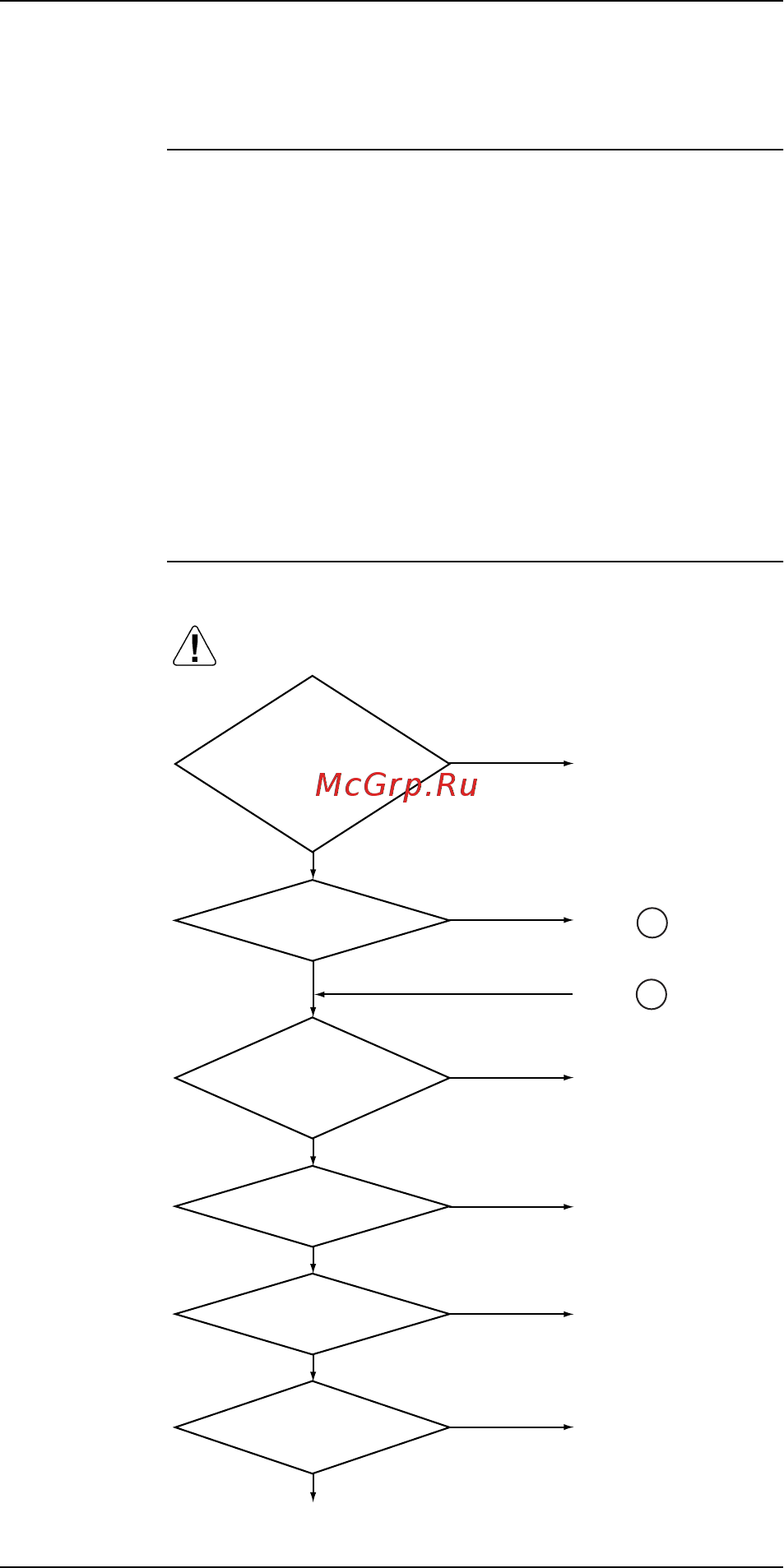

Is the supply
voltage within the rated
voltage ±10%?
NO
YES
YES
Insert the power
supply plug into the
outlet. Turn on the
breaker for the
power supply.
Go to on P.13.
From on P.13.
NO
NO
NO
YES
Caution
Be sure to turn off the power switch before connecting or
disconnecting connectors, or parts may be damaged.
Go to the next page.
The 3-minute
standby function is
activated.
Operation restarts
3 minutes later.
Replace the fuse or
the thermal fuse.
Ask the electric
power company.
Is the
power supply
plug inserted into the
outlet or the breaker for
the power supply
ON?
Do the other
electric appliances
work?
Does the fuse
or the thermal fuse
blow?
Within 3
minutes after operation
stopped?
NO
YES
Connect the wires
properly.
Is the wire
connection and the wire
size correct?
A
B
