Si10-417_C Troubleshooting by Error Code
Service Diagnosis 201
Trouble-
shooting
Check No.15
Refer to
P.240
Check No.21
Refer to
P.250

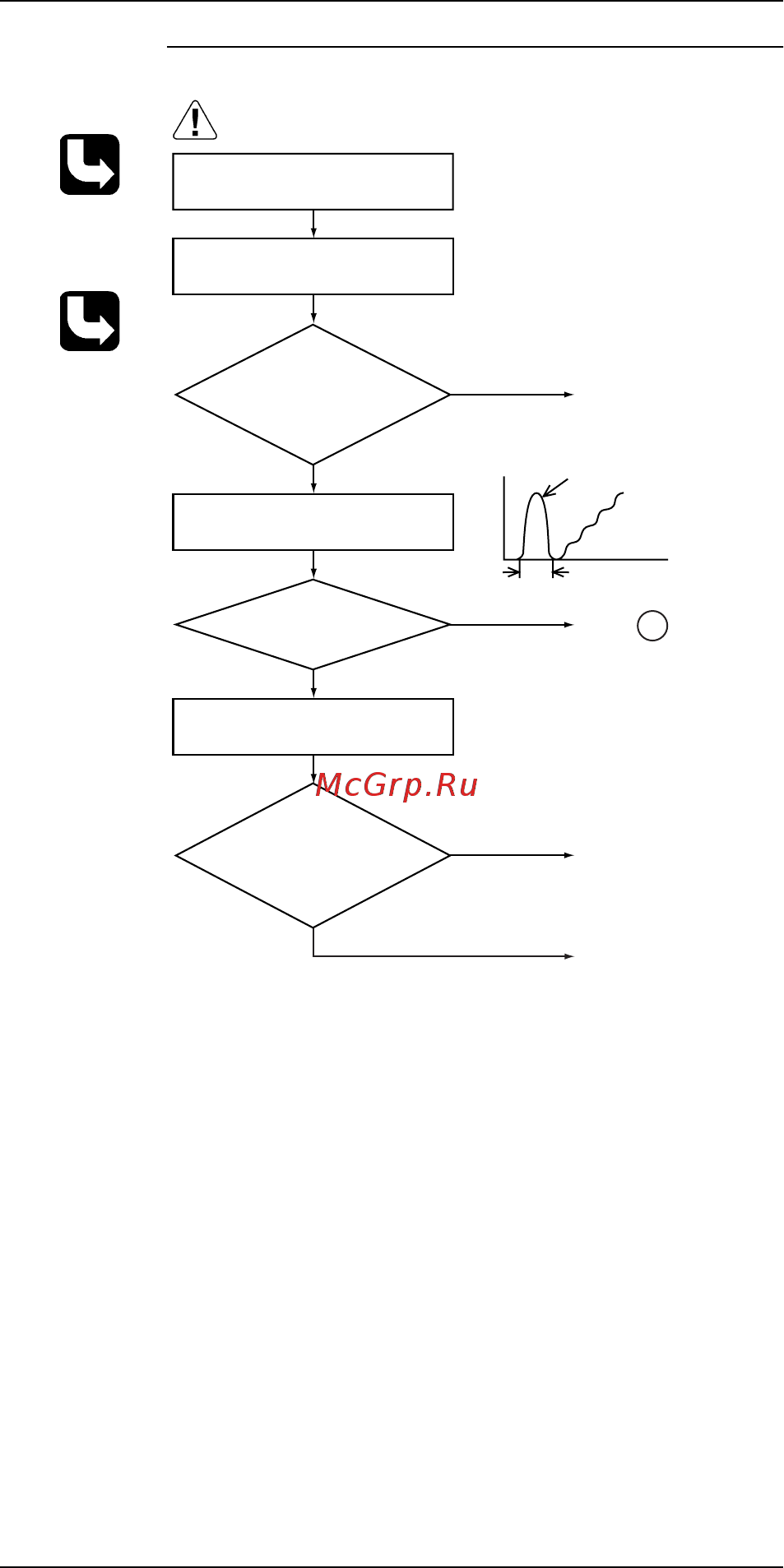

Start operation.
Turn off the power and turn it
on again.
YES
Measure the rectifier input
voltage.
Check No. 21
Check the capacitor voltage.
Caution
Be sure to turn off the power switch before connecting or
disconnecting connectors, or parts may be damaged.
NO
Check the supply
voltage.
(R15553)
∗ Running
current as shown at
right with relay cable
1 or 2?
Voltage
within the
allowable range (Supply
voltage ± 15%)?
YES
NO
Replace the outdoor
unit PCB.
320 ± 50 VDC?
YES
NO
Replace the outdoor
unit PCB.
2 sec
Time
Current
(guideline)
Capacitor charged when
the indoor unit or outdoor
unit main relay turns on
Rising with increasing
frequency
Go to on the
next page.
A
