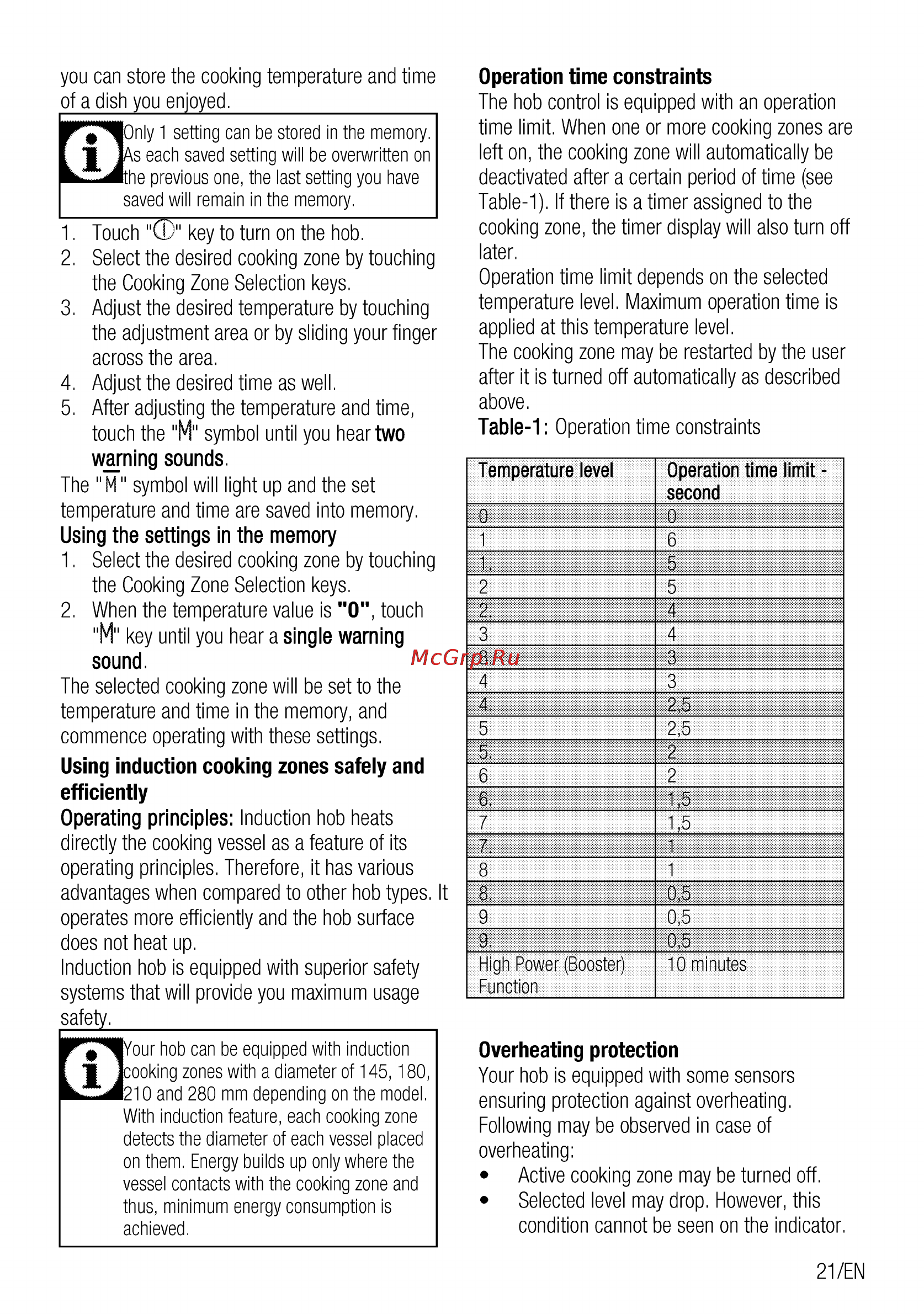

you can store the cooking temperature and time of a dish you enjoyed _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ T lOnly 1 setting can be stored in the memory L 1 JAS each saved sett n9 be overwritten on i mhe previous one the last setting you have saved will remain in the memory 1 Touch key to turn on the hob 2 Select the desired cooking zone by touching the Cooking Zone Selection keys 3 Adjust the desired temperature by touching the adjustment area or by sliding your finger across the area 4 Adjust the desired time as well 5 After adjusting the temperature and time touch the M symbol until you hear two warning sounds The M symbol will light up and the set temperature and time are saved into memory Using the settings in the memory 1 Select the desired cooking zone by touching the Cooking Zone Selection keys 2 When the temperature value is 0 touch M key until you hear a single warning sound The selected cooking zone will be set to the temperature and time in the memory and commence operating with these settings Using induction cooking zones safely and efficiently Operating principles Induction hob heats directly the cooking vessel as a feature of its operating principles Therefore it has various advantages when compared to other hob types It operates more efficiently and the hob surface does not heat up Induction hob is equipped with superior safety systems that will provide you maximum usage safety _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ P T lYour hob can be equipped with induction 1 Jcookl ng zones with a diameter of 145 180 bZ 210 and 280 mm depending on the model With induction feature each cooking zone detects the diameter of each vessel placed on them Energy builds up only where the vessel contacts with the cooking zone and thus minimum energy consumption is achieved Operation time constraints The hob control is equipped with an operation time limit When one or more cooking zones are left on the cooking zone will automatically be deactivated after a certain period of time see Table 1 If there is a timer assigned to the cooking zone the timer display will also turn off later Operation time limit depends on the selected temperature level Maximum operation time is applied at this temperature level The cooking zone may be restarted by the user after it is turned off automatically as described above Table 1 Operation time constraints Temperature level 0 1 I 1 2 i 2 3 IM 4 4 5 5 6 6 7 i 7 8 9 9 High Power Booster Function Operation time limit second 0 6 5 4 4 3 2 5 2 5 2 2 15 1 5 1 1 iiBM 0 5 05 10 minutes Overheating protection Your hob is equipped with some sensors ensuring protection against overheating Following may be observed in case of overheating Active cooking zone may be turned off Selected level may drop However this condition cannot be seen on the indicator 21 EN
