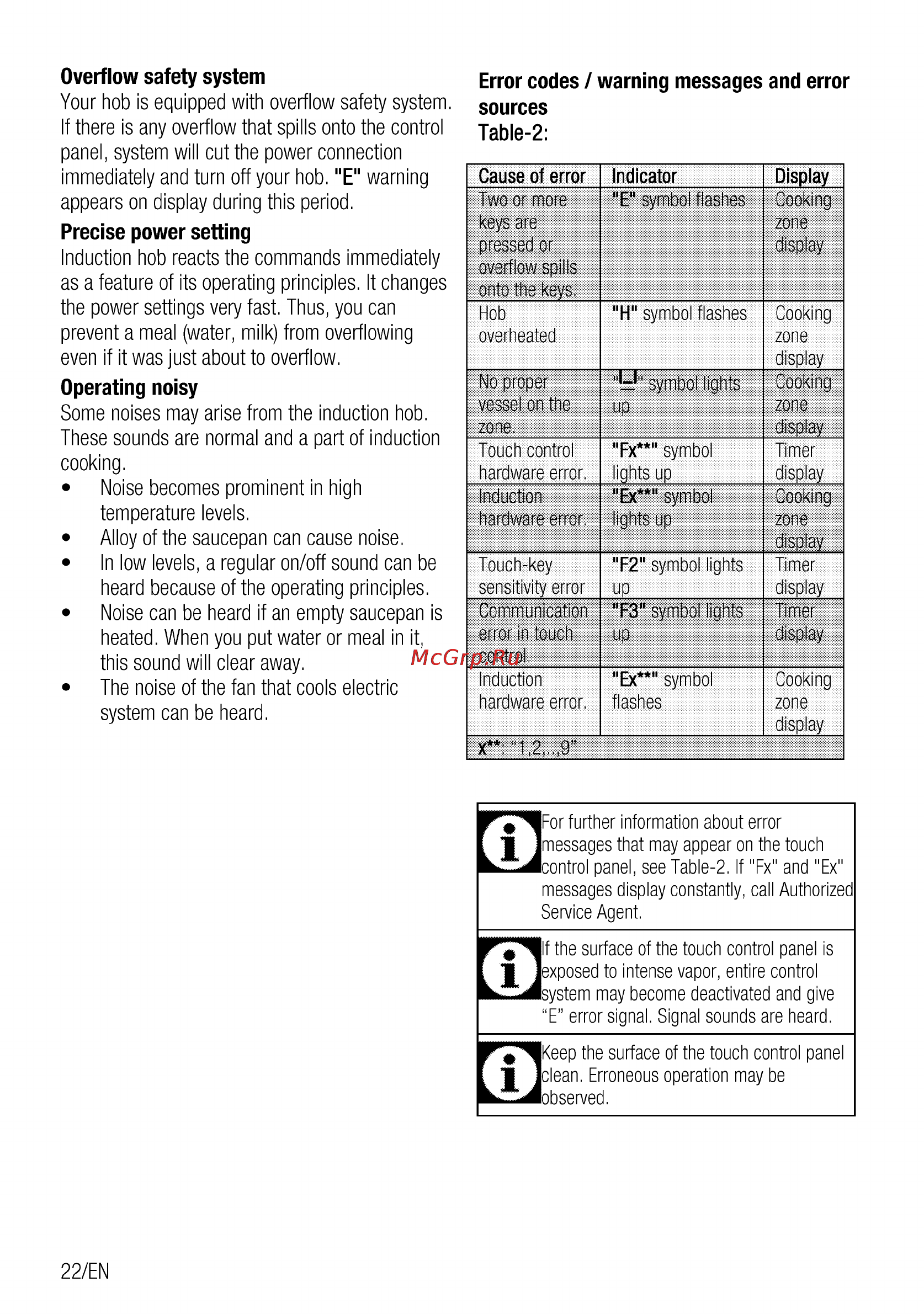

Overflow safety system Your hob is equipped with overflow safety system If there is any overflow that spills onto the control panel system will cut the power connection immediately and turn off your hob E warning appears on display during this period Precise power setting Induction hob reacts the commands immediately as a feature of its operating principles It changes the power settings very fast Thus you can prevent a meal water milk from overflowing even if it was just about to overflow Operating noisy Some noises may arise from the induction hob These sounds are normal and a part of induction cooking Noise becomes prominent in high temperature levels Alloy of the saucepan can cause noise In low levels a regular on off sound can be heard because of the operating principles Noise can be heard if an empty saucepan is heated When you put water or meal in it this sound will clear away The noise of the fan that cools electric system can be heard Error codes I warning messages and error sources Table 2 Cause of error j Two or more j keys are j pressed or j overflow spills onto the keys Hob overheated No proper vessel on the zone Touch control hardware error Induction j hardware error Indicator E symbol flashes H symbol flashes y symbol lights Fx symbol lights up Ex symbol lights up Touch key F2 symbol lights sensitivity error up j Communication F3 symbol lights error in touch ii control Induction Ex symbol hardware error flashes Display Cooking zone display Cooking zone display Cooking zone display Timer display Cooking zone display Timer display Timer display Cooking zone display x 1 For further information about error I 1 jmessages that may appear on the touch L control panel see Table 2 If Fx and Ex messages display constantly call Authorized Service Agent If the surface of the touch control panel is 1 Jexposed to intense vapor entire control system may become deactivated and give E error signal Signal sounds are heard Keep the surface of the touch control panel f Jclean Erroneous operation may be observed 22 EN
