ABOUT USING A MICROSD CARD
New2001
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19

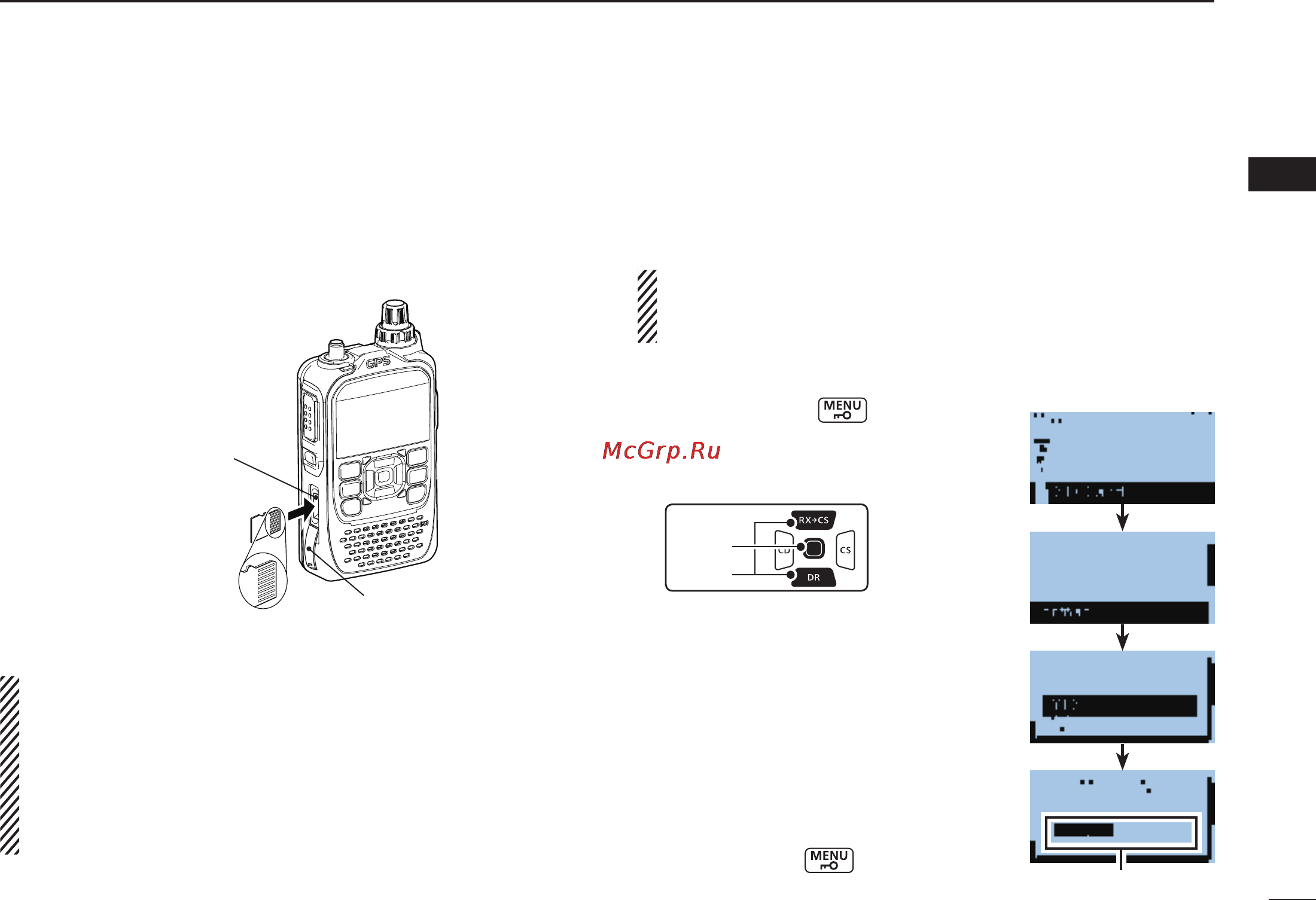

■ Inserting the microSD card
Turn OFF the transceiver. q
LiftOFFthe[microSD]slotcoveronthesidepanel. w
With the terminals facing the front, insert the card into the e
slot until it locks in place, and makes a ‘click’ sound.
rFirmlyclosethe[microSD]slotcover.
BE CAREFUL!
•DO NOT touch the terminals.
•To remove the card, push in to release it, then carefully
pull the card out.
•Whilereadingorwritingdatafromandtothecard,NEV-
ER remove the card. It will corrupt the data or damage
the card.
■ Format the microSD card
When using a preformatted brand new microSD card, format-
ting is not necessary. However, we recommend you format it
in the following way to get card’s best performance.
IMPORTANT!
Formatting a card erases all its data. Before formatting any
programmed card, make a backup file onto your PC.
Turn ON the transceiver. q
Push [MENU] w
to enter the
Menu screen.
Push D-pad( e E) to select the root item
(SD Card), then push D-pad(Ent).
D-pad
(�)
(Ent)
r Push D-pad(E) to select “Format,”
then push D-pad(Ent).
•Theconrmationscreen“FormatOK?”
appears.
t Push D-pad(#) to select “YES,” then
push D-pad(Ent) to format.
•The formatting starts and the display
shows the formatting state.
•After formatting, the display automati-
cally returns to the SD CARD menu.
yPush[MENU] to return to the
frequency display.
[microSD]slot
microSD card
Terminals facing
the front
Slot cover
Formatting state
