Icom ID-31A [40/80] Band scope function
![Icom ID-31A [40/80] Band scope function](/views2/1074071/page40/bg28.png)
31
5
BASIC OPERATION
New2001

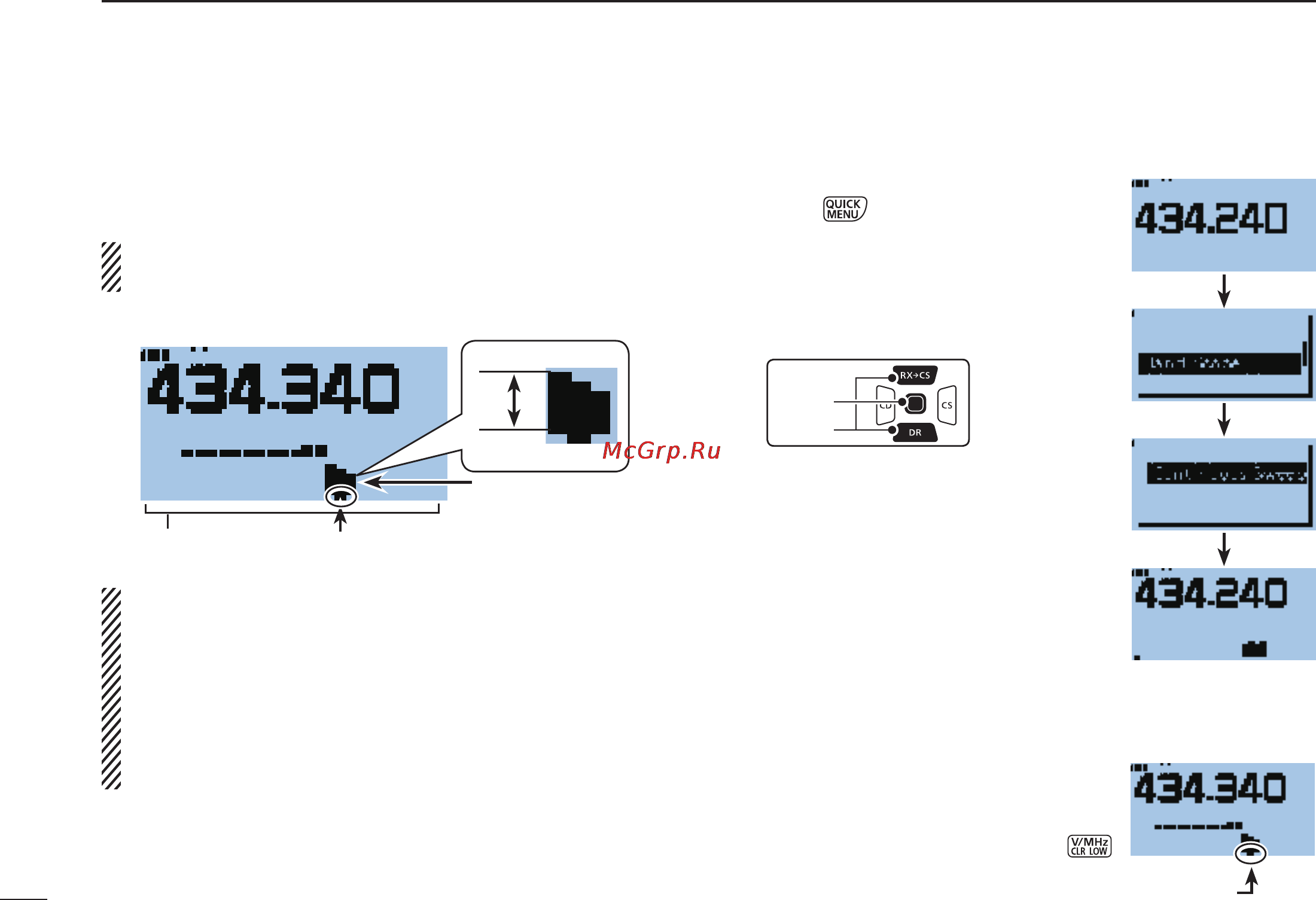

■ Band Scope function
The Band Scope function allows you to visually check a spec-
ified frequency range around the center frequency.
The receive audio during sweeping can be muted in
SOUNDS menu. See page 48 for details.
About the sweep steps:
The specified tuning step (in VFO mode) or programmed
tuning step (in memory mode) is used during sweep.
If the tuning step is set to wide, the present signal may not
be displayed (may be skipped), even that is strong signal.
Thus we recommend to set the tuning step to the 20 kHz
or less to use the Band Scope function.
See page 23 for the Tuning step selection details.
D Sweep operation
Push q to open the Quick Menu
screen.
Push D-pad( w E) to select “Band
Scope,” and then push D-pad(Ent).
D-pad
(�)
(Ent)
Push D-pad( e $) to select the “Single
Sweep” or “Continuous Sweep” op-
tion.
r Push D-pad(Ent) to return to the fre-
quency display and start sweeping.
•Single Sweep check the specified fre-
quency range at once.
•Continuous Sweep continuously checks
the specified frequency range.
•PushD-pad(Ent)tostopsweepingand
push again to restart it.
•While stop sweeping, rotate [DIAL] to
move the sweep marker to a detected
signal, you can hear the signal audio.
•Whilestopsweeping,push[CLR]
to cancel the Band Scope function.
Band Scope display Sweep marker
Strong level
Weak level
The signal on the
434.390 MHz
Sweep marker
