PANEL DESCRIPTION
New2001
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
r VOLUME CONTROL [VOL]
➥
Adjust the audio volume level. (p. 16)
➥
During set mode operation, rotate to select the options.
(p. 51)
t
PTT SWITCH [PTT]
➥
Push and hold to transmit, release to receive. (p. 23)
For IC-T70E only
➥ Push briefly, then push and hold to transmit a 1750 Hz
tone burst. (p. 28)
y
EXTERNAL DC IN JACK [DC IN]
➥
Connects the supplied wall charger, BC-167S, to charge
the attached battery pack, BP-264. (p. 12)
• The transceiver can charge only the BP-264 Ni-MH battery
pack. Charging the BP-265 Li-Ion battery pack requires the
BC-193 desktop charger.
➥ Connect an external DC power supply through the op-
tional CP-12L, CP-19R or OPC-254L for external DC
operation. (p. 15)

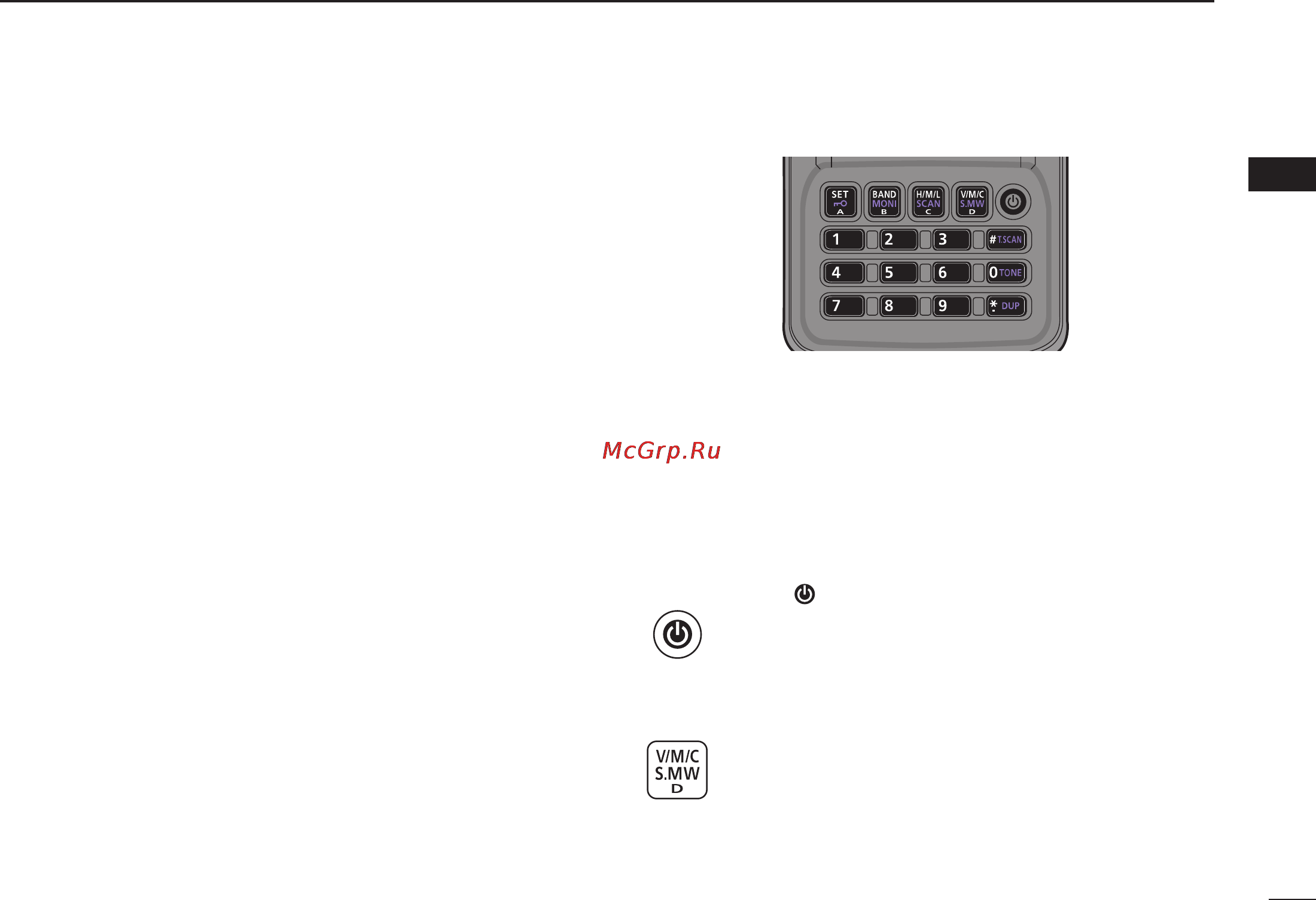

D Keypad
➥ Push to input numbers for frequency input or memory
channel selection.
➥
While continuing to push [PTT], push the key to send the
DTMF code. (pp. 66, 67)
• [0]–[9] send “0”–“9,” [A](SET) sends “A,” [B](BAND) sends “B,”
[C](H/M/L) sends “C,” [D](V/M/C) sends “D,” [M](DUP) sends
“M(E)” and [#](T.SCAN) sends “# (F).”
POWER KEY [ ]
➥ Push and hold for 1 sec. to turn the transceiver
power ON or OFF. (p. 16)
VFO/MEMORY/CALL • SELECT MEMORY WRITE KEY
[V/M/C] • [S.MW](V/M/C)
➥ Push to select the VFO mode, memory mode, call
channel mode or weather channel mode*. (pp. 18,
29, 30, 72)
* Only for the U.S.A. version transceiver.
➥ Push and hold for 1 sec. to enter select memory
write mode. (p. 31)
