Icom IC-T70E [12/96] Panel description
![Icom IC-T70A [12/96] Panel description](/views2/1074089/page12/bgc.png)
5
2
PANEL DESCRIPTION
New2001 New2001

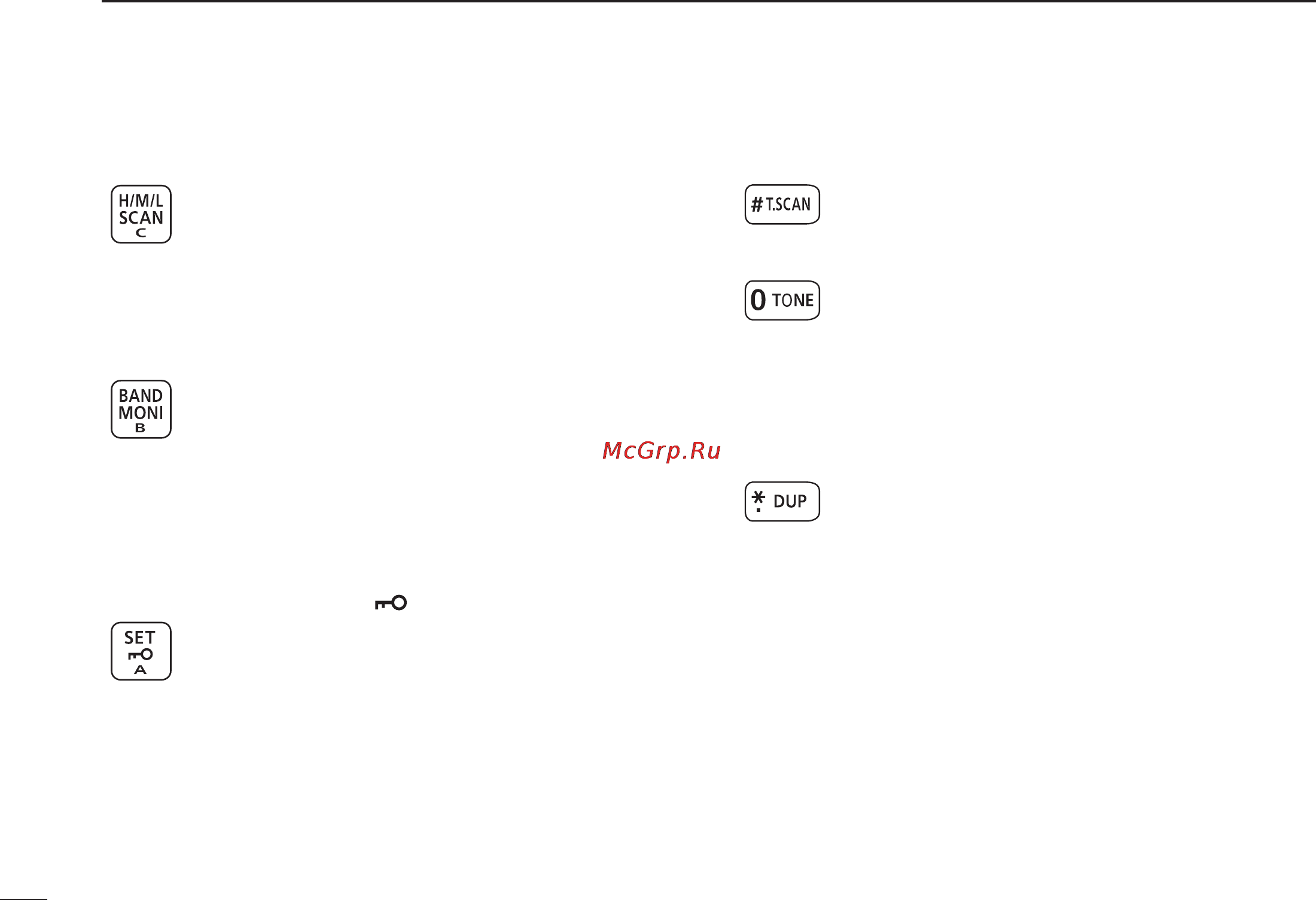

D Keypad (continued)
OUTPUT POWER • SCAN KEY [H/M/L] • [SCAN](H/M/L)
➥ Push to select the output power. (p. 22)
• Selects the transmit output power from high, middle
or low.
➥ Push and hold for 1 sec. to enter the scan type
selection mode. (pp. 42, 44, 45)
• Push again to start the scan.
BAND • MONITOR KEY [BAND] • [MONI](BAND)
➥ During VFO mode operation, push to select an
operating frequency band. (p. 19)
➥
Push and hold to open the squelch temporarily
and monitor the operating frequency. (p. 17)
➥
While continuing to push this key, rotate [DIAL] to
adjust the squelch level. (p. 17)
➥
During memory mode operation, push to enter the
memory bank group selection. (p. 33)
SET • LOCK KEY [SET] • [
](SET)
➥ Push to enter the Set mode. (p. 51)
➥
Push and hold for 1 sec. to toggle the lock func-
tion ON or OFF. (p. 21)
➥
During select memory write mode, push to select
the items. (pp. 32, 34, 38, 39)
TONE SCAN KEY [T.SCAN](#)
➥ Push and hold for 1 sec. to start the tone scan
function. (p. 71)
TONE/TONE SQUELCH KEY [TONE](0)
➥ Push and hold for 1 sec. to select sequentially
repeater tone, tone squelch, tone squelch re-
verse, DTCS squelch, DTCS squelch reverse and
no tone operation. (p. 70)
• The pocket beep function is available with tone squelch
and DTCS squelch. (p. 70)
DUPLEX KEY [DUP](M)
➥ Push and hold for 1 sec. to select minus duplex,
plus duplex or simplex operation. (p. 26)
• “DUP–” (minus duplex), “DUP” (plus duplex) and no
indication (simplex) appear in order.
