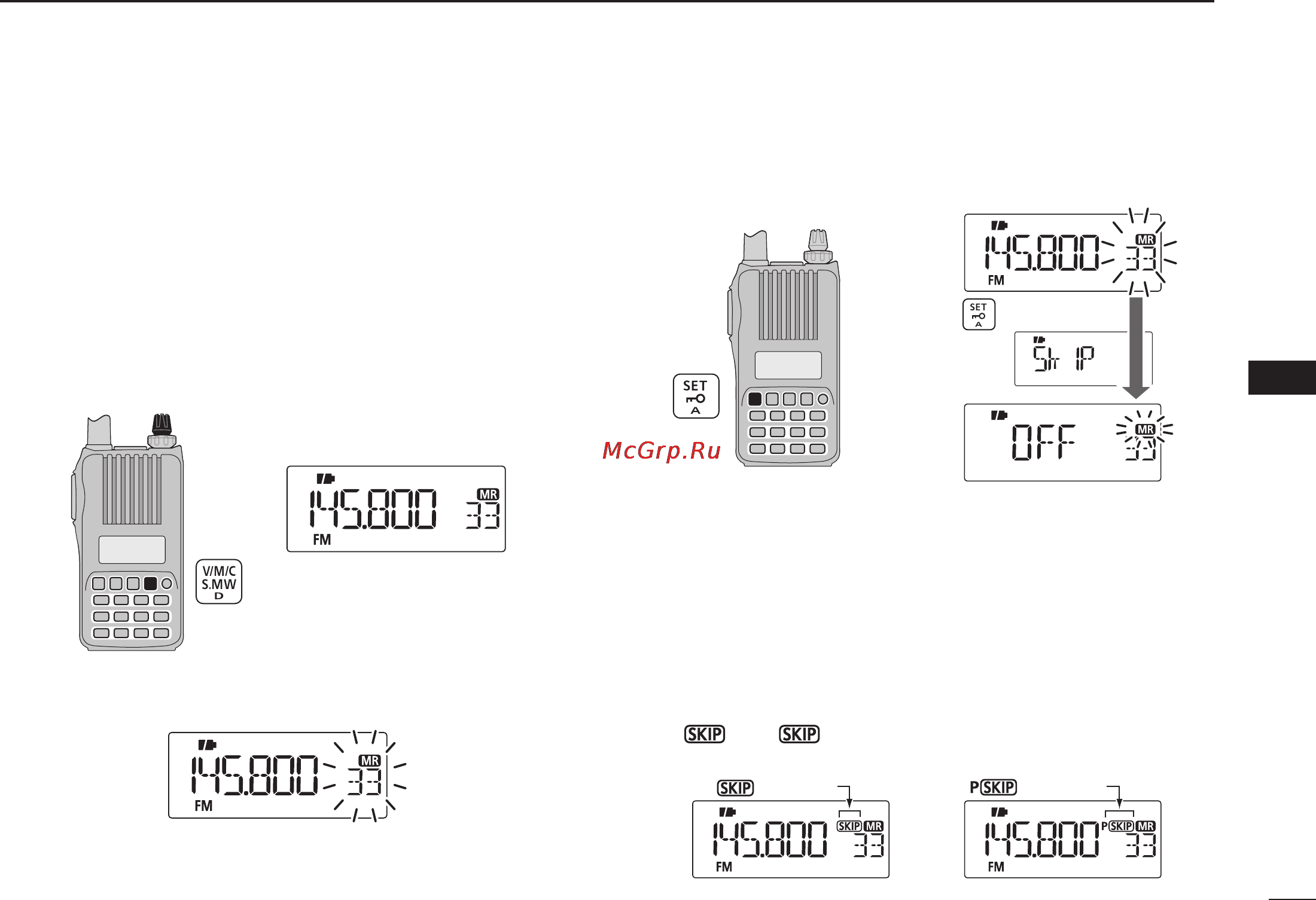

■ Skip channel/frequency setting
Memory channels can be set to be skipped during memory
skip scan. In addition, memory channels can be set to be
skipped during both memory skip scan and frequency skip
scan. This is useful to speed up the scan rate.
q
Select a memory channel:
➥ Push [V/M/C] to select the memory mode.
➥
Rotate [DIAL] to select a desired channel to be a skip
channel/frequency.
[DIAL]
w Push and hold [S.MW](V/M/C) for 1 sec. to enter the select
memory write mode.
e Push [SET] repeatedly to select the “SkIP” item.
Push repeatedly.
r Rotate [DIAL] to select the skip condition from “SkIP,”
“PSkIP” or “OFF” for the selected channel.
• PSkIP : The channel is skipped during a memory/bank scan,
and the programmed frequency is skipped during VFO
scan, such as a programmed scan.
• SkIP : The channel is skipped during a memory or bank scan.
• OFF : The channel is scanned during any scan.
t Push and hold [S.MW](V/M/C) for 1 sec. to store the skip
condition into memory.
• “ ” or “P ” icon appears, depending on the skip selection
in step r.
“ ” appears “ ” appears
Skip channel setting
Program skip setting
46
7
SCAN OPERATION
